portable hydraulic blasthole drilling rig for sale
- 80 Set / Sets per Month
- Qingdao or as request
- T/T Credit Card
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | DEFY | Model Number: | XY-200F |
Usage: | Other, water well,soil sampling | Power(W): | 15kw | Dimension(L*W*H): | 2750*950*1600mm |
Weight: | 810kg (not include motor) | Certification: | BV,SGS certificate | Warranty: | one year,excluding wearing parts |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.supply all the accessories2. 75-400mm hole diameter
3.independent mud pump,large flow rate
4.BV,SGS

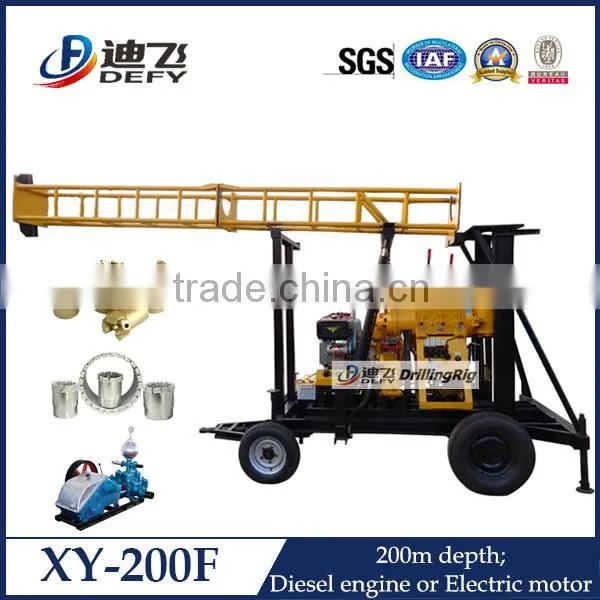

XY-200F drilling rig can drill up to 200m with caliber 75mm to 400mm in soil, sand, gravel, hard rocks, etc. It is equipped with diesel engine, BW-160mud pump, integrative drill tower, hydraulic control system, diamond bit, etc. It is widely applied for water well, geological exploration, mining blasthole, construction foundation hole, etc.
Attracting features
1. diesel engine as power supply. Also can be driven by electric motor.
2. Four wheels mobile base, can be dragged on tractor, trailer, or cars. With four support legs, easy adjusting when install and stable when work.
3. Alloy bit, diamond bit, three wing bit for different stratums, such as sand, soil, mud, rock etc.
4. Independent BW-160 mud pump with big water flow rate, ensuring smooth and stable working.
5. Integrated drill tower, operator seat, humanization design, one person to operate.
Specification
1. Main parameter | ||
Drilling depth | 200m | |
Maximum borehole caliber | 400mm | |
Minimum borehole caliber | 75mm | |
Diameter of Drill pipe | 42,50,60mm | |
Drilling angle | 90°~75° | |
2. Vertical Spindle |
| |
Spindle rotating speed | 64,128,287,557r/min | |
Spindle stroke | 450mm | |
3. Hoist |
| |
Max. single line lifting capacity | 1600kgf | |
Reel lifting speed | 17,35,75,151m/s | |
4. Mud pump |
| |
Type | BW-160 | |
Type | Horizontal Single Cylinder with 2 purpose | |
5. Power |
| |
Diesel engine | 22HP | |
Electric | 15KW | |
6. Drilling tower |
| |
Type | Integrated on drilling rig | |
Control system | Hydraulic |
XY-200F Drilling Rig delivery
Different chasis crawler mounted Drilling Rig XY-200C delivery
About Zhengzhou DEFY
1. Our factory has been specialized in manufacturing drilling tools and spare parts since 1980.
2. We have advanced technology and equipment.
3. Our technician has more than 25 year’s professional working experience.
4. drilling rigs are exported throughout the world. Main market: Norway, Turkey, USA,
Canada, Australia, Brazil, Uruguay, Iran, Philippines, Thailand, India, etc.
FAQ:
1. Q: Can XY-200F drill rocks?
A: Yes, XY-200F water bore drilling machine can drill rocks. We have alloy bit, PDC bit and diamond bit in stock. Normally, alloy bit is to drill soil, sand, gravel, etc. PDC is to drill gravel, soft rocks, etc. And diamond bit to drill hard rocks.
2. Q: Can you train me?
A: Yes, of course, we are in charge of teaching you how to operate, maintenance until you can use it correctly and experiencedly. When shipping, we will send you English Version Operation Manual(or your own language), and Operation Video. If necessary, we will send engineers out to teach face to face.
3. Q: We want to use it for soil testing? Is it possible?
A: Yes, it is widely used for not only water well, but also geological exploration. Meanwhile, we also offer SPT kits for your direct use.
4. Q: How to buy?
A: After confirming the goods you will purchase,deposit for ordering the goods, then prodution---goods finished for confirmation,payment balance,and then shipment.
Remarks:
Our engineer will help to create a complete list of drilling rig and drilling tools, specially according to your project. For more details, please kindly send us an inquiry or contact our sales people directly by instant messenger. Thank you! ^_^
