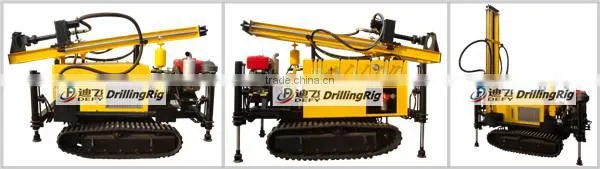

Help CenterDFQ-100 Top Hammer Shallow Well Drilling Rig for Rocky Mountains
Related Products
-
4-wheel Type Mineral Exploration Drilling Machine for 200m DepthUS$ 10,000 - 13,000MOQ: 1 Set -
DFQ-300 Full Hydraulic Mining Exploration Blasting Drilling MachineUS$ 34,000 - 40,000MOQ: 1 Set
-
XY Series Core Drilling Rig for Mining--30-600mUS$ 5,000 - 9,000MOQ: 1 Set
-
200m Crawler Mounted Gold Exploration Drilling EquipmentUS$ 15,000 - 19,000MOQ: 1 Set
-
600m Underground Mining Drilling Rig for BlastingUS$ 20,000 - 25,000MOQ: 1 Set
Specifications

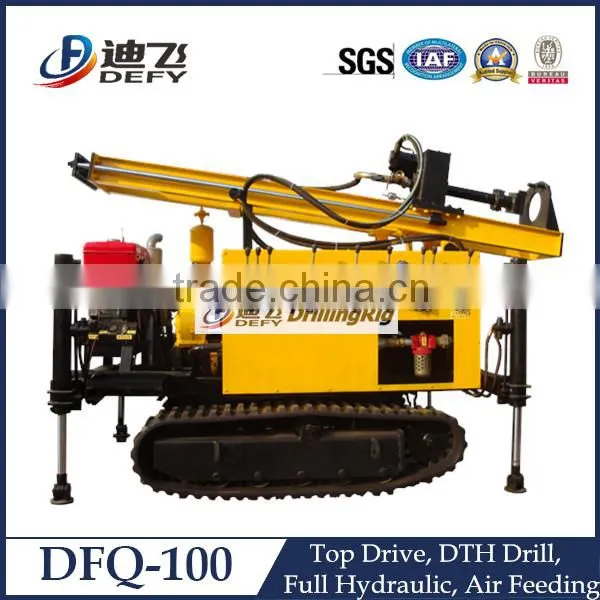

DFQ-100 Top Hammer Shallow Well Drilling Rig for Sale1. Crawler mounted
2. Air feeding
3. Full hydraulic
4.DTH hammer drill
DFQ-100 Top Hammer Shallow Well Drilling Rig for Sale
General Description
DFQ-100 drilling rig is most efficient to drill mountain area and rock formation water engineering.
Characteristics
1. it adopts rubber crawler, will not damage the roads,
2. self-propelled transitions,convenient and quick.
3. equipped with BW – 160C mud pump, achieve the two kinds of working--with water or air, stronger applicability.
4. air compressor with big power, especially for mountain areas.
5. Fully hydraulic control. Efficient.
Specifications
No. |
Item |
Parameter |
1 |
Drilling caliber |
Φ105-150mm |
2 |
Max. drilling depth |
100m |
3 |
Diameter of drill pipe |
Φ60,Φ63.5 |
4 |
Unit Length of drill pipe |
1500mm |
5 |
Work pressure |
1.05-2.0 MPa |
6 |
Gas consumption |
15~18 m³/min |
7 |
Impacter |
DHD340350 |
8 |
Impacting frequency |
1200-1500Hz |
9 |
Apply to rock hardness |
f=6-12 |
10 |
Power |
24Kw/2300rpm |
11 |
Gradeability |
25° |
12 |
Walking speed |
0~1.5 Km/h |
13 |
Ground clearance |
210mm |
14 |
Leg cylinder stroke |
600 mm |
15 |
System pressure |
20MPa |
16 |
Propulsion |
5.0 tonf |
17 |
Lifting force |
8.5 tonf |
18 |
Speed of spindle |
Fast 135 rpm |
Slow 91 rpm | ||
19 |
Rotary torque |
1050N.m |
20 |
Weight |
2200 Kg |
21 |
Dimension |
3200*1770*2050 mm |

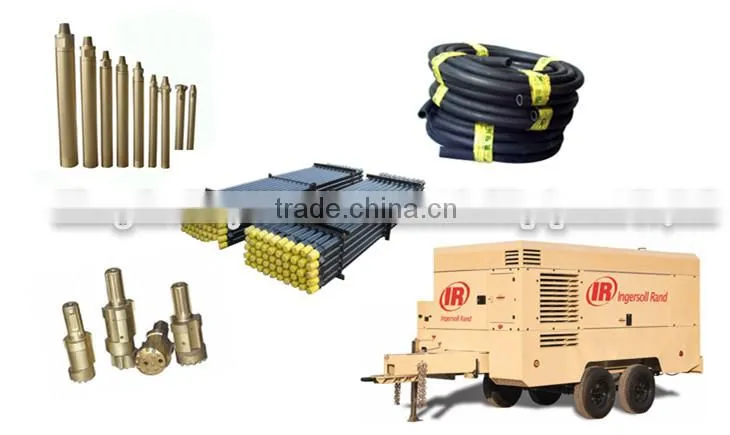

DTH Drilling Hammer
We offer shallow and deep well drilling rigs!
Working Site of DEFY DFQ series Hammer Drilling Machine:
Company Profile
Established in 1970s, Zhengzhou Defy has been one leading drilling rig manufacturer in China. We have exported to more than 20 years. DFQ-100 is very well-received by Russian Customers, Kenya, Chili, Mexico, etc.
Remarks
Any interest in our well drilling rig machines, please kindly send us inquiry or call me. Our engineer will create the complete set of drilling rig and all other necessary accessories, ensuring you can use it directly after receiving the goods, no need to buy any other tools any more. ^_^
Contact details:
Name: Lucile
Tel: 0086-371-55819257
Fax: 0086-371-66770722
Mobile: 0086-18135686181
Skype: defy007
