Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > 600m Underground Mining Drilling Rig for Blasting

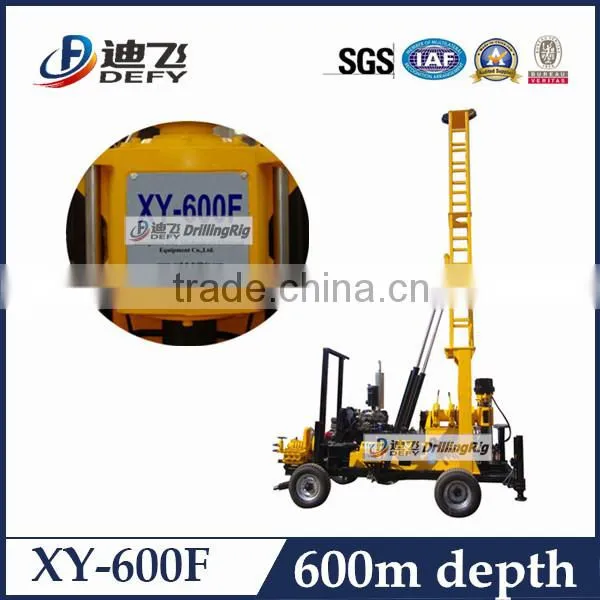

600m Underground Mining Drilling Rig for Blasting

Name: 600m Underground Mining Drilling Rig for Blasting
Brand: DEFY
SKU: 117569723
Availability: InStock

600m Underground Mining Drilling Rig for Blasting thumbnail-1

600m Underground Mining Drilling Rig for Blasting photo-1

US$ 20,000 - 25,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Rotary Drilling Rig

Power Type:

Other, diesel or electric

Contact Supplier Request Quote Chat Now

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Rotary Drilling Rig

Power Type Other, diesel or electric

Place of Origin Henan, China

Brand Name DEFY

Model Number XY-600F

Usage Other, geological exploration, water well, mining blasting, etc

Voltage 380V

Power(W) 22kw

Dimension(L*W*H) 2500x950x1750mm

Weight 1480kg

Certification BV,SGS

Warranty 1Y

After-sales Service Provided Engineers available to service machinery overseas

Specifications

XY-600F Mining Drilling Rig for Blasting
1. Diesel or Electric
2. BW-200/250 mud pump
3. Integrated drill tower
4. BV,SGS

XY-600F Underground Mining Drilling Rig for Blasting (with reverse circulation)

Main Parameters
Max. Drilling Depth		600m
Diameter of drill pipe		Φ42,Φ50,Φ60,Φ73
Angle of vertical spindle		90°~65°
Drilling capability
Φ75mm drill diameter		600m depth
Φ108mm drill diameter		500m depth
Φ127mm drill diameter		400m depth
Φ159mm drill diameter		300m depth
Φ219mm drill diameter		210m depth
Φ273mm drill diameter		150m depth
Φ500mm drill diameter		80m depth
Vertical Spindle
Rotation speed	Forward 10 grades	30-1050r/min
	Reverse 2 grades	29-137r/min
Spindle stroke		600mm
Spindle bore		96mm
Hoisting capability		6000kg
Max. Torque		3800N.m

XY-600F hydraulic downhole drilling rig can do water conservancy, mining geology, impact drilling, directional drilling, reverse circulation continuous coring (sampling), etc.

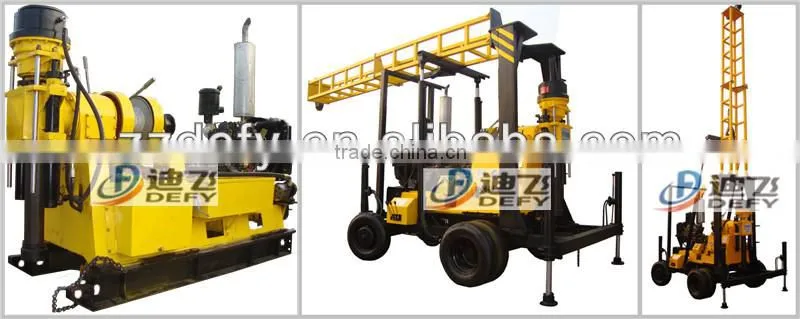

To meet different user requirements, we design and manufactuer different types:

(1) XY-600F four-wheel trailer mounted drilling rig

(2) XY-600C crawler mounted self-propelled drilling rig

(3) XY-600 truck mounted drilling rig.

The above three kinds all use the latest XY-600 host, hydraulic stabilizer legs, foldable drill tower of hydraulic automatic rise and fall, greatly improve the working efficiency, reduces the labor intensity.

Service:

We offer portable rotary drilling rigs for 100m, 200m, 300m, 400m, 500m, 600m, etc. Our engineer will help to design a complete set of drilling rig and drilling tools at Good Price, ensuring direct use. For more details, please kindly send us an inquiry or contact our sales people by instant messenger. Thank you very much.
