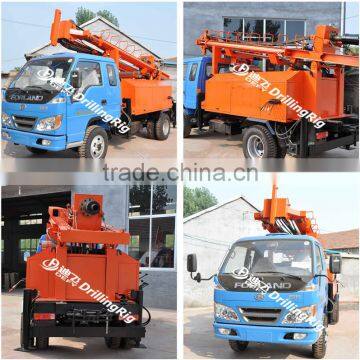

0~200m Best Seller of Hydraulic Water Well Drilling Rig, Drilling Machine for Stone
Features:
1. It is applied to different drilling conditions, especially for hard rock terrain.
2. Hydraulic control, mounted on truck, with easy operation and transportation.
3. Four hydraulic standing legs for stable working.
4. Automatic loading and unloading drill rods, automatic clearing wells.
5. Working with DTH hammer and air compressor, can drill up to 100~200m per day.
Technical Parameters:
Drilling diameter |
100 - 400 mm |
Max. Depth |
200m |
Max. hoist lifting force |
10T |
Rotation speed |
Slow 20r / min |
Quick 100r/min | |
working air pressure |
1-3.45MP |
Air consumption |
16-55 m3 / min |
Drill rod |
89x 8/7x3300mm |
Drill tower height |
4-7 m |
Power |
50kw diesel engine |
Rotary Torque |
2000-4000N.M |
Working speed |
60 km/h |
Gradeability |
20 degree |
Model |
Drilling Caliber |
Max. depth |
Feature |
XY-100 |
75~300mm |
100m |
Disassemble drill tower; Small in size. |
XY-130 |
75~300mm |
130m |
|
XY-150 |
75~400mm |
150m |
|
XY-180 |
75~400mm |
180m |
|
XY-200 |
75~400mm |
200m |
|
XY-200F |
75~400mm |
200m |
Mounted on Trailer |
XY-200C |
75~400mm |
200m |
Mounted on Crawler |
XY-400F |
75~600mm |
400m |
Mounted on Trailer |
XY-400C |
75~600mm |
400m |
Mounted on Crawler |
XY-600F |
75~600mm |
600m |
Mounted on Trailer |
XY-600C |
75~600mm |
600m |
Mounted on Crawler |
1. One year quality warranty.
2. Operation Manual or CD.
3. Free training; After-sale support works.
4. Accessories all year around.
5. Visit reception.
6. Volume-discount when order quantity is big.
