XY-200F portable water well drilling machine for sale--motor type or diesel engine
- 120 Set / Sets per Month
- Qingdao/ Tianjin/ Shanghai
- T/T Credit Card
You May Like
-
300m pneumatic used crawler drill for groundwater
-
geological investigation truck surface drill rig for sale
-
0~200m Best Seller of Hydraulic Water Well Drilling Rig, Drilling Machine for Stone
-
400m deep pneumatic water well drill rigs--Hot sale in Russia
-
200-400m Drilling for Soil Test for Sale
-
DFR-315 full hydraulic small digging machine used for piling
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Other, diesel engine or electric motor | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | XY-200F | |
| Usage | Water Well | Voltage | 380V | |
| Power(W) | 15KW | Dimension(L*W*H) | 2750*950*1600mm | |
| Weight | 1700kg (not include motor) | Certification | BV&SGS | |
| Warranty | 12 months | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

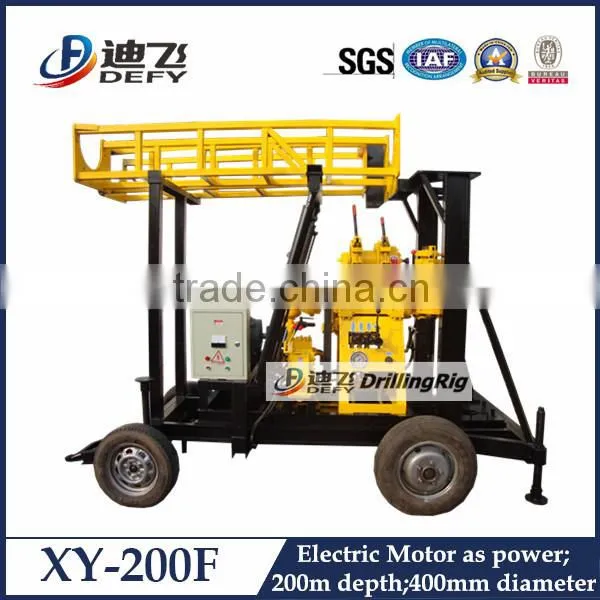

XY-200F portable water well drilling machine for sale--motor type or diesel engine
Brief Introduce
XY-200F is widely used for Water well drilling, Geological Exploration and Prospecting, Geothermal wells, Blast-hole, Irrigation projects, etc.

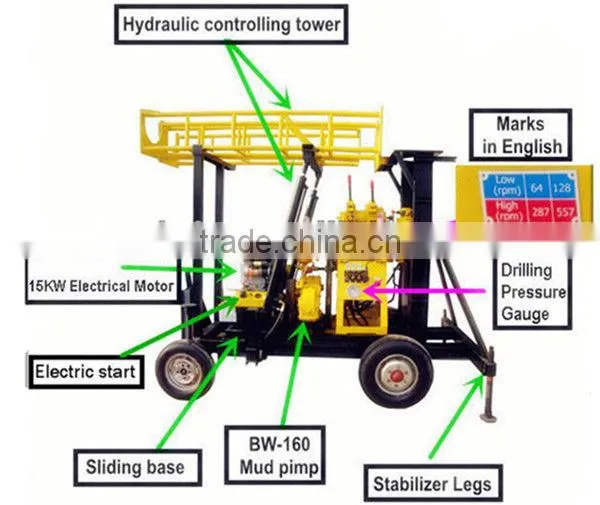

Attracting features
1. It can move.
Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, two-wheel, crawler.
3. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
4. Spare parts
We provide factory cost accessory all year round.
5. Power
Diesel engine or Electrical motor.
Specification
Drilling depth | 200m |
Maximum borehole caliber | 400mm |
Minimum borehole caliber | 75mm |
Diameter of Drill pipe | 42, 50, 60mm |
Drilling angle | 90°~75° |
Weight(Not include power) | 1700kg |
Unity machine dimension | 2750*950*1600mm |

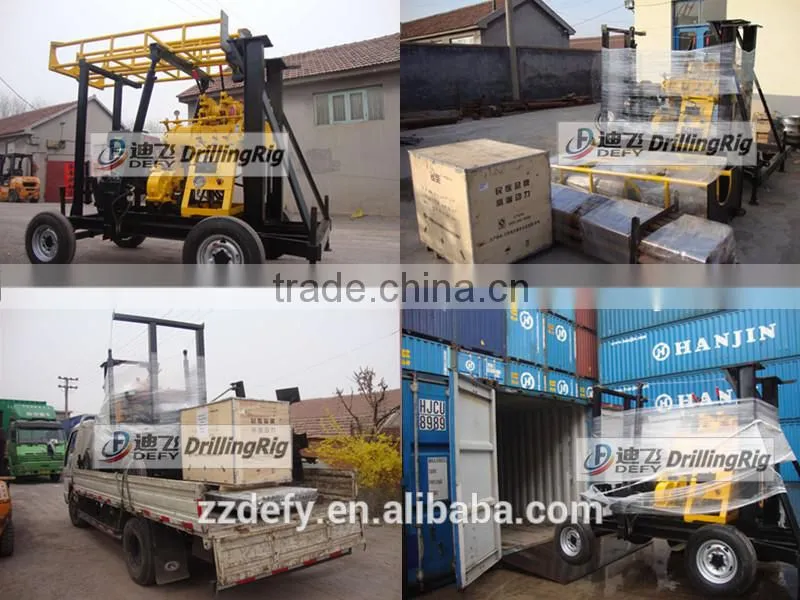

Package
Different models of other series
Model | Drilling caliber | Max. drilling depth | Application Range |
XY-100 | 300mm~75mm | 100m | Geological exploration & survey; Mineral prospecting; Water wells; Blast hole; Geothermal heat wells and so on. |
XY-130 | 300mm~75mm | 130m | |
XY-150 | 400mm~75mm | 150m | |
XY-180 | 400mm~75mm | 180m | |
XY-200 | 400mm~75mm | 200m |
Company Certificate
Defy tips:
How to choose a suitable machine?
1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?
2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.
3. Any requirements to hole diameter?
---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it inversely proportional.
4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.
Based on the above information, experienced engineers will help you recommend suitable machine. If you have special demands, please tell us in advance.
