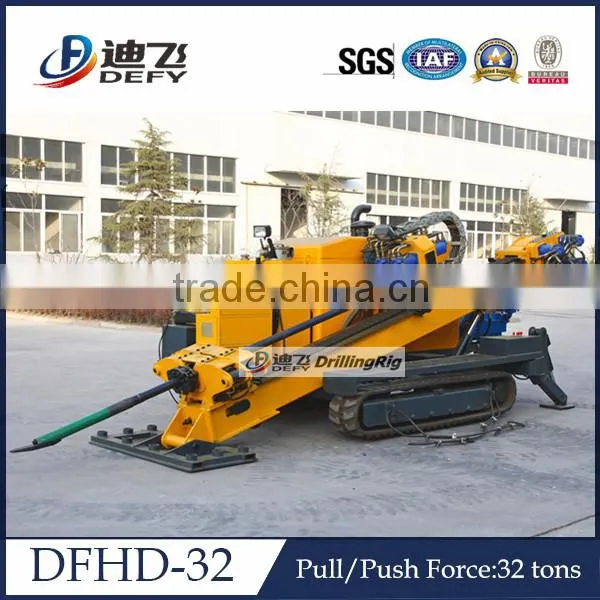

Full hydraulic horizontal drilling rig for pipe laying with large pulling force
Product Specifications of DFHD-32 Horizontal Directional Drilling Rig:
1, Full hydraulic drive, double-speed track chassis;
2, Double low-speed motors drive power head dual-speed drilling, structure is simple but advanced;
3, Rack and pinion drive system, stable and reliable movement;
4, Innovative and unique mobile device in front and back;
5, Low gravity, good stability;
6,The main components are using world famous brand, such as diesel engine, hydraulic pumps, valves, motors, and reducer.
7, Low-emission diesel engine, professional noise reduction design to make the rig more suitable for urban construction.
9, The rig control technology with leading international standards, so that no-load condition power drill consumption to a minimum.
Application:
1. municipal, electricity, telecommunications, water, gas, oil, gas, heat trenchless laying of pipelines.
2. The level of precipitation for the project.
3. Control Project for the bad environment (contaminant seepage treatment).
4. For long distance Forepoling project.
5. The basis for special treatment and advanced drilling and other pipe jacking project.
Parameters of HDD Rig DFHD-32
The Main Machine | |
Power of Engine |
Weichai Deutz 145kW |
Max. Push capacity |
330kN |
Max. Pull capacity |
330kN |
Rated Torque |
1300N.m |
Spindle RPM |
Lower 0-48r/min |
High 0-96r/min | |
Feeding Stroke |
3300 mm(130 inch) |
Diameter of Guide Hole |
φ130(165)mm |
Drilling Angle |
0°20° |
Pressure of hydraulic system |
20Mpa(2901 psi) |
Traveling speed |
2-2.6 km/h(6560-8528 feet/h) |
Structural Style |
integrated with rubber crawler and mud pump |
Dimension (L×W×H) |
5820×2250×2400mm |
Weight |
8400 kg |
Mud Pump | |
Specification |
BW-250 |
Max. Discharge |
250 L/min |
Peak Pressure |
7 Mpa |
Mud Process System | |
Data of engine |
4KW(5.4HP) petrol engine |
Pump parameter |
KGP30,30m3/h |
Mud processing capacity |
6 M3/h (212 feet3/h) |
Mud Tank |
2M3 (71 feet3/h) |

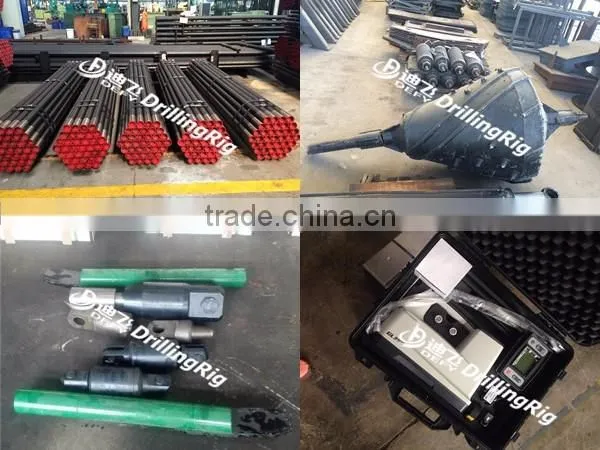

Drilling tools and auxiliary system | |
Specification of Rod |
73×3000 mm(2.87×118 inch) |
Guide Bit |
130 mm or 150mm |
Reamer |
325;400;500;600;720mm |
Distributor |
40T(88200 lb) |
Tracker |
Optional Part |
Different Models of Horizontal Directional Drilling Rigs for your choice
Model |
Engine Power |
Feeding force(KN) |
Pulling Force(KN) |
DFHD-15 |
85KW (2200r/min) |
75 |
150 |
DFHD-20 |
110KW (2300r/min) |
200 |
200 |
DFHD-28 |
132KW (2300r/min) |
280 |
280 |
DFHD-32 |
145KW(2300r/min) |
320 |
320 |
DFHD-40 |
175KW(2300r/min) |
400 |
400 |
DFHD-60 |
225KW (2200r/min) |
620 |
620 |
DFHD-120 |
338KW (1900r/min) |
1220 |
1220 |
DFHD-245 |
450KW*2 sets |
2450 |
2450 |
DFHD-400 |
552KW*2 sets |
4000 |
4000 |
DFHD-550 |
784KW*2 sets |
5500 |
5500 |
DFHD-750 |
960KW*2 sets |
7500 |
7500 |
Packing and delivery
DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
