Excellent Performance Trenchless Pipe Laying Drill Equipment
- Qingdao Ningbo
- T/T Money Gram Credit Card
You May Like
-
Cable Laying Equipment, 68 Tons Horizontal Directional Drill Machine
-
68t Pulling Force Horizontal Directional HDD Drilling Rig, Large Model Cable Laying Equipment
-
Full Hydraulic Horizontal Drilling Rig for Pipe Laying With Large Pulling Force
-
Directional Drills DFHD-120, Trenchless Drilling Machine,underground Pipeline Laying HDD Rig
-
Cheap Price 120T Soil/rock HDD Drilling Rig Machine DFHD-120 Crawler Mounted
-
Underground Cable Pipeline 400KN Horizontal Directional Drilling Rig Machine Manufacturer
Product Details
| Condition | New | Type | Other, HDD Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | DEFY | Model Number | DFHD-450 | |
| Usage | Other | Voltage | Customized | |
| Power(W) | 470KW | Weight | 39000kgs | |
| Certification | BV,SGS certificate | Warranty | One year warranty excluding wearing parts | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

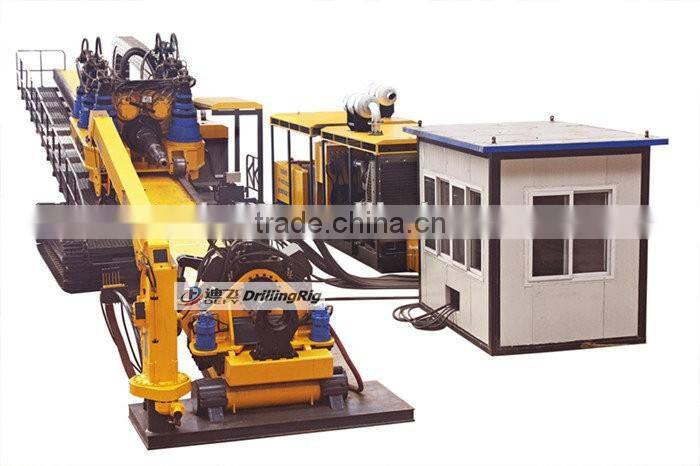

Excellent performance trenchless pipe laying drill equipment
Product Specifications of DFHD-450 Horizontal Directional Drilling Rig:
DFHD Series Hydraulic Directional Drilling Rig is special equipment, mainly used for the civic
DFHD-450 horizontal directional drilling rig, integrated with the advantages and characteristics of various HDD rigs in China and abroad, is a high-sufficient drill rig manufactured by us based on more than 10 years designing experiences.
Equipped with the diesel engine kit and separate power station, the drill rig is powerful enough to deal with various problems. The all new DFHD-450 provides 4500KN of feeding&pulling force and Max. 120000N.m. Torque to gain successful performances.
The rack and pinion transmission system is designed with advanced technology, which ensures
much more reliable and safer movement of drill head. The high-quality crawler makes it possible for drill rig to move quickly.
The operator's cabin is with wide field of view and good sound insulation. All sorts of monitoring
gauges are mounted in the cabin, which makes it simple to operate the rig. A crane with capacity of 4 tons is attached with the main machine to ensure convenient working for operator.
The main hydraulic components are all famous brand from European and American suppliers,
transfer case and reducer are adopted from well-known European factorys, thus reliable operation of the rig is guaranteed.
Total Length | 17000mm |
Total Width | 3200mm |
Total Height | 3400mm |
Weight | 39000kg |
Power Unit |
|
Total Length | 8000mm |
Total Width | 2300mm |
Total Height | 2400mm |
Weight | 18000kg |
OPERATIONAL |
|
Maximum Pullback | 4500KN |
Maximum Torque | 120000Nm |
Maximum Thrust Speed | 27m/min |
Maximum Rotation (Low speed) | 42 rpm |
Maximum Rotation (High speed) | 84 rpm |
DRILL STEM |
|
Type | API Standard |
Length | Up to 9.6m |
Pipe diameter | 140mm(5.5 in) or 168mm |

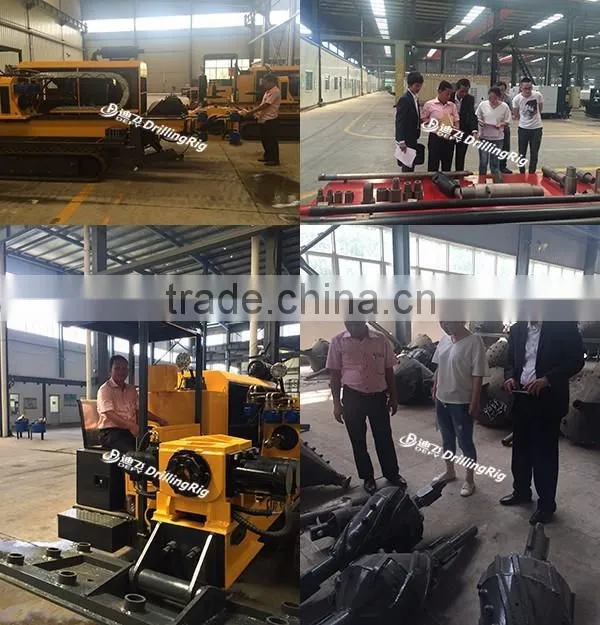

Customer visit

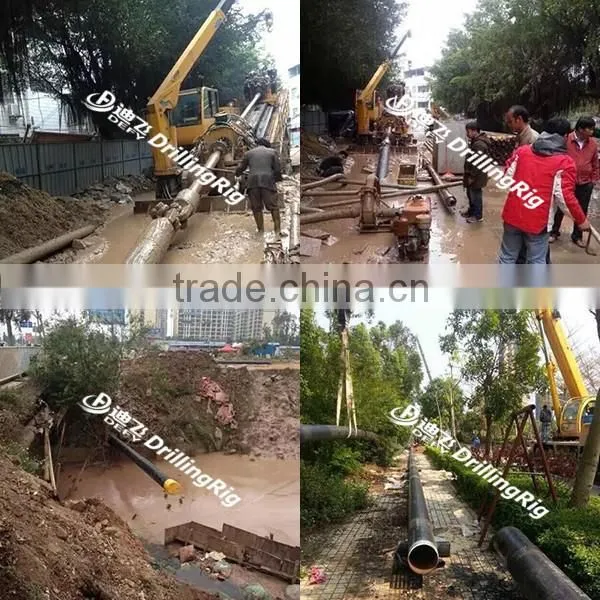

Working site

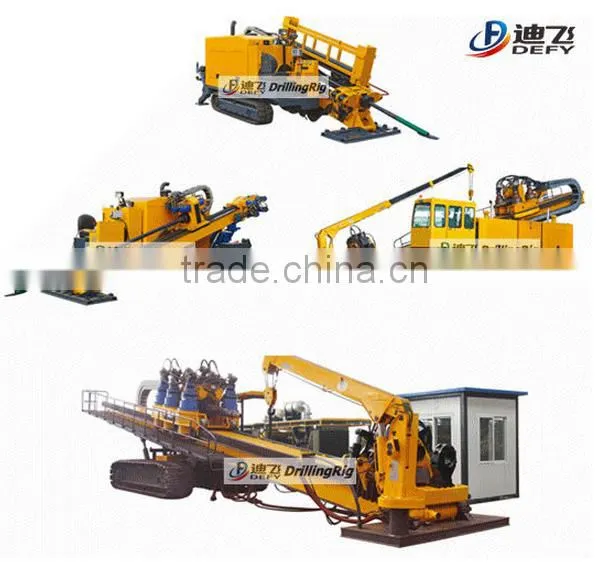

Different Models of Horizontal Directional Drilling Rigs for your choice
Model | Engine Power | Feeding force(KN) | Pulling Force(KN) |
DFHD-15 | 85KW (2200r/min) | 75 | 150 |
DFHD-20 | 110KW (2300r/min) | 200 | 200 |
DFHD-28 | 132KW (2300r/min) | 280 | 280 |
DFHD-32 | 145KW(2300r/min) | 320 | 320 |
DFHD-40 | 175KW(2300r/min) | 400 | 400 |
DFHD-60 | 225KW (2200r/min) | 620 | 620 |
DFHD-120 | 338KW (1900r/min) | 1220 | 1220 |
DFHD-245 | 450KW*2 sets | 2450 | 2450 |
DFHD-400 | 552KW*2 sets | 4000 | 4000 |
DFHD-550 | 784KW*2 sets | 5500 | 5500 |
DFHD-750 | 960KW*2 sets | 7500 | 7500 |

DEFY Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal air-conditioner and so on, capable and functional. DEFY Brand drilling machine have been widely exported to Chile, Russia, Australia, Malaysia, Kenya, Tanzania, Zambia, South America, Peru, Zimbabwe, etc.Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
Thanks for browse our products information. If you have any question, or want to know more about drilling rig, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig @
Phone/WhatsApp: +86-15286806707
Email: nora @
Tel: 86-371-55819257
Fax: 86-371-66770722
