Industrial Packing Pulp Molding Machine

specification:

1.HGHY brand pulp molding machine

2.high quality,low cost ,high efficency

3. warranty

4. over sea service

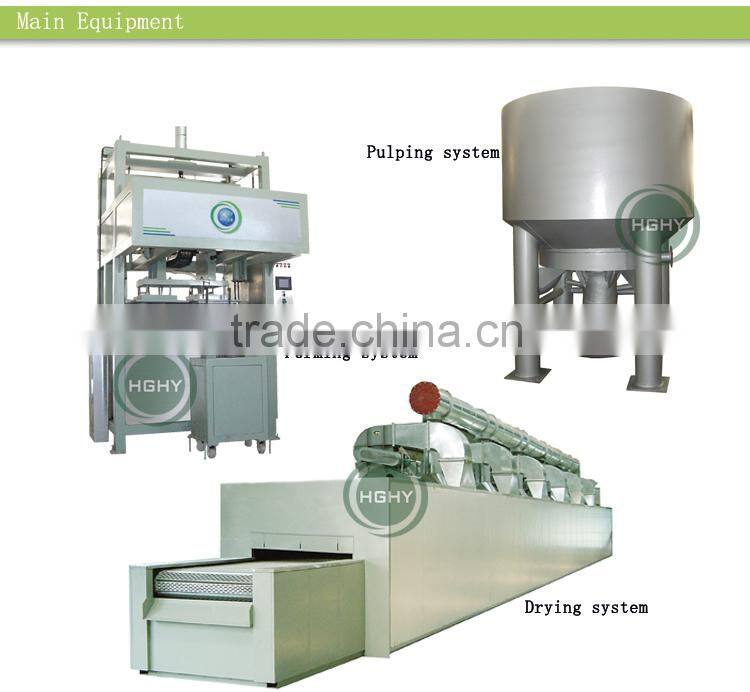

Pulping system

Main equipments: pulper1.7m3,22kw,1set;pulper 2m3,37kw,1set;vibration screen 0.9m2,3kw,1set;1.8m24kw,1set; mixer, 4sets;pulp pump, water pump, control cabinet etc.

Forming system

 Two types of forming machine for option: One is XW2-6650 forming machine,1set;platen size: 660×500mm,with two separated platens; operated by two workers independently; suitable for small scale production of the products in small size; after forming, the wet products should be received manually from the forming machine and collected to the carts by manual; The molds should be cleaned by workers; forming efficiency: 2-5cycles/min.The other is XW-12066Y forming machine, 1set; platen size: 1200*660mm; 1set of platen; Operated by 1 or 2 workers at the together;suitable

for large scale production of the products in big size. The wet products will be transferred out and discharged on the carrier automatically and the workers should collect the products from the  carrier to the carts. Mold cleaning system has been equipped. Forming efficiency: 2-4cycles/min. equipped with control cabinet.

Drying system

Outline dimension: 36080×2950×3600mm; single layer conveying chain. Heated by unit and the temperature of each  unit could be controlled independently;multi burners with French or Italian brand.The enery for option: LPG,GAS,diesel oil.Equiped with auto control cabinet.

Hot pressing system

 Used press the products after drying; 8sets; platen size: 600*480mm; power 6KW; with counter and safety protection appliance; The pressure and temperature can be adjusted. adopting the gas-liquid pressurized technology. Equipped with control cabinet.

Subsidiary Equipments

Vacuum pump, 45kw, 2sets; air compressing system: air compressor (37kw, 2sets), air dryer, air filter and air storage tank.

•Total power for the production line: about439.7KW. •Workforce for the production line: 20-25/shift.

•Main parts adopted are with International brand which are  reliable in quality and convenient in after sales service.And engergy saving is the most distinctive feature of HGHY eqipments compared with congener equipments internationally.

•The supplier will be responsible for the instruction in installation,test running and training. Warranty: one year since finishing the installation.

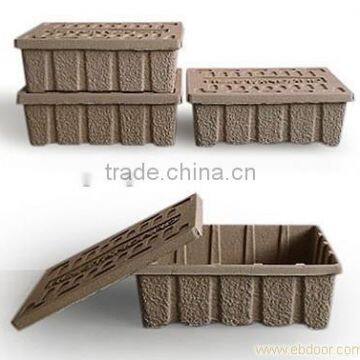

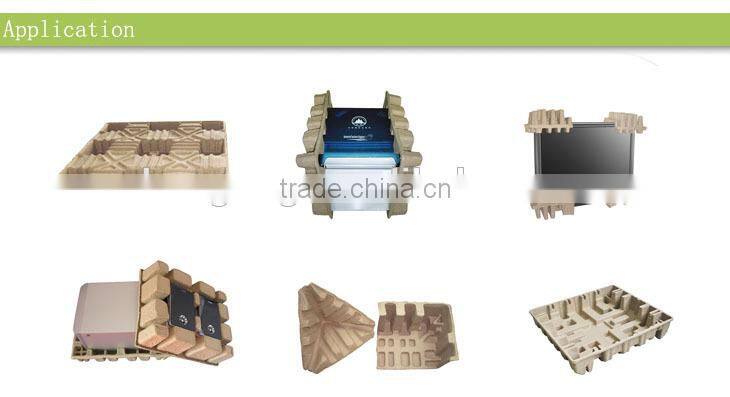

•The equipments equipped in this production line are supposed to the production of nearly all of the pulp molded products. The details have been instructed in the quotation.  For further inquiry, please feel free to contact us.
