New design diamond core drill rig for sale
I. General intrudution

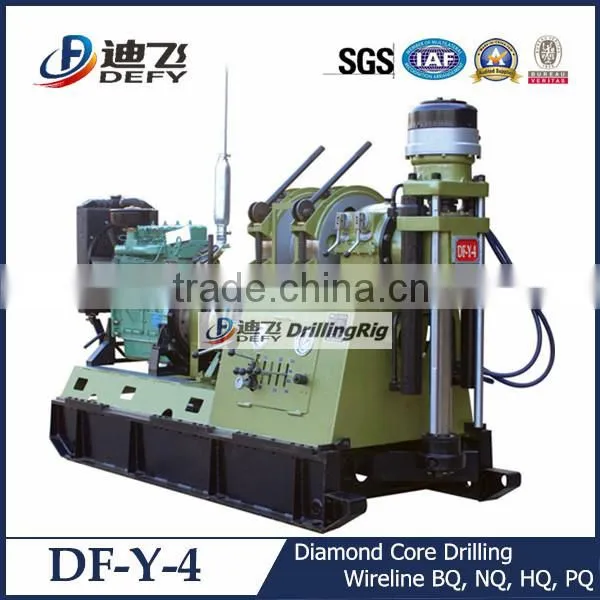

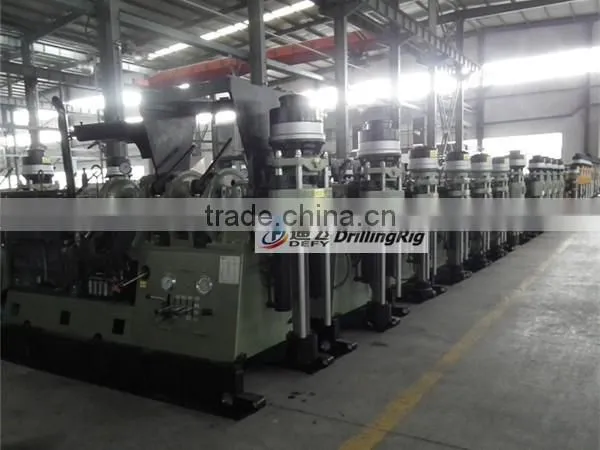

DF-Y-4 Core Drill is a new type high speed diamond core drill, designed according to the development of geological work in China and developed to meet the requirements of clients.
DF-Y-4 Core Drill has been identified in 1976, and rewarded with the Chinese National Silver Medal in 1988. The DF-Y-4model has been sold all over the country.
DF-Y-4 Core Drill can be driven by Deutz F4L 912 diesel engine or Weichai diesel engine or 30KW electric motor. The drill has 8 rotary speed stage, the Max, speed 1588 rpm, the min speed 101 rpm, so it is suitable for various drilling for solid mineral deposits with diamond or tungsten-carbide tipped bit.
It is also suitable for engineering geological subterranean water explorations as well as explorations of shallow layer oil and natural gas, and can be used to drill holes for ventilation and drainage of main
Gallery.
II. Main Features
1. The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
2. The drill is suitable in the mountain area because of light weight for easy transport and convenient dis assembly (to be disassembled into nine parts).
3. With compact structure and reasonable layout, and all exposed,non overlapped components, it is easier for maintenance and repair.
4. It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
5. The operation levers are concentrated, so the operations are reliable and convenient.
6. Fitted with meters, the circumstances can be controlled easily in hole.
7. The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.
Accessories of Coring drilling rig
III. Specification
Drilling capacity |
Drilling hole |
Drilling depth |
||||
Φ42mm(1.65inch) drill rod |
1000 m(3280 feet) |
|||||
Φ50mm(1.97inch) drill rod |
700 m (2296 feet) |
|||||
Angle range |
0°-360° |
|||||
Spindle speed(r/min) |
Driven by power machine speed 1500 r/min |
Forward |
Low speed |
101; 187; 267; 388, |
||
High speed |
415;765;1090;1588 |
|||||
reverse |
Low speed |
83 |
||||
High speed |
251 |
|||||
|
Driven by power machine speed 2000 r/min
|
Forward |
Low speed |
135; 250; 355; 517 |
|||
High speed |
415;765;1090;1588 |
|||||
reverse |
Low speed |
110 |
||||
High speed |
338 |
|||||
Spindle stroke |
600 mm (23.62 inch) |
|||||
Spindle lifting capacity |
Max. 80 kN (17984 lbf) |
|||||
Spindle pull down force |
Max.60 kN (13488 lbf) |
|||||
|
Spindle torque
|
by power machine efficiency 29.4 kW(39.43HP), speed 1500 r/min 2640;1410;980;660 N·m (1946;1037;722;486 lbf·ft) 830;440;300;200 N·m (1946;1037;722;486 lbf·ft) |
|||||
Spindle I. D. |
68 mm (2.68 inch) |
|||||
Hoist |
Lifting capacity(single line) |
By motor 29.4 kW (39.4HP), 1500 r/min |
Max.30kN (6744 lbf) |
|||
By diesel 44.1kW (59.1HP) , 2000r/min |
Max.33kN (7418 lbf) |
|||||
|
Lifting speed (3rd layer)
|
By motor 39.4 kW(52.8HP) , 1500 r/min
|
0.82,1.51,2.16, 3.15m/s(2.69, 4.95,7.08,10.33 feet/s) |
||||
|
By diesel 44.1kW (59.1HP), 2000 r/min
|
1.09,2.02,2.89, 4.18m/s (3.58,6.63,9.48,13.71 feet/s) |
|||||
Wire rope diameter |
16 mm (0.63 inch) |
|||||
Drum diameter |
285 mm (11.22 inch) |
|||||
Brake rim diameter |
490 mm (19.29 inch) |
|||||
Brake band width |
120 mm (4.72 inch) |
|||||
Drum capacity |
90 m (295 feet) |
|||||
Traveling device |
Retraction cylinder stroke |
460mm (18.11 inch) |
||||
Distance between drill rig and hole |
310 mm (12.20 inch) |
|||||
Pressurizing system |
Cylinder I.D. |
70 mm(2.76 inch) |
||||
Cylinder rod dia. |
35 mm (1.38 inch) |
|||||
Max. pressure |
45 KN(10116 lbf) |
|||||
Max. lifting force |
60 KN(13488lbf) |
|||||
Cylinder stroke |
550 mm (21.65 inch) |
|||||
Oil pump |
Displacement |
-32+12 L/min (8.5+3.2 US 9allons/min) |
||||
Speed |
1500(r/min) |
|||||
Working pressure |
8Mpa (1160 psi) |
|||||
Max. pressure |
12 MPa (1742 psi) |
|||||
Power unit |
Type |
Electric motor Y200L-4 |
diesel engine ZH100G43 |
|||
Efficiency |
30 kW |
31KW |
||||
speed |
1470rpm |
1500rpm |
||||
Dimensions (L×W×H) |
2710×1100×1750mm(106.7×43.3×68.9 inch) |
|||||
Weight of drill (without power unit) |
1750kg |
|||||

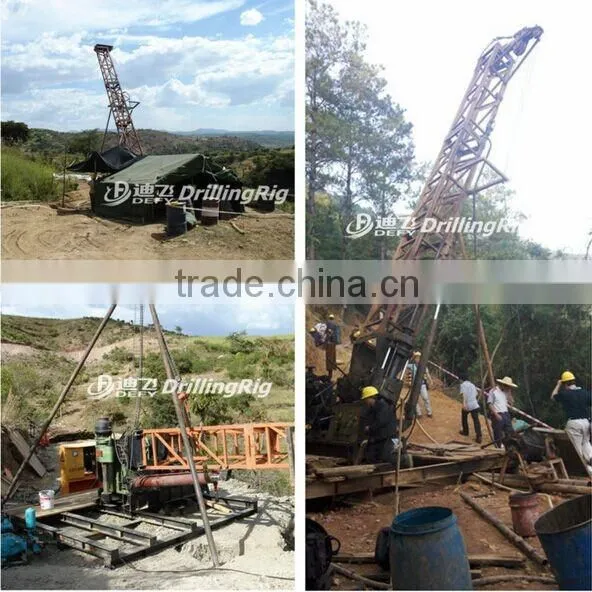

Working site of DF-Y-4
Please kindly tell us your detailed requirement then our professional engineers will give
you the most suitable suggestions.
1. What kind of projects you will work for?
---Water well, Borehole, Exploration coring, Foundation Piling, Blast holes, Geothermal
air-conditioner holes or others?
2. The Max. depth of drilling you hope to achieve?
---For DF-Y series, it can reach 300-4000m with different models.
3. The Min. and Max. hole diameter you want?
---Usually 96-118mm.
4. Condition of the environment?
---Soft ground like soil, mud, sand.
---Hard ground like hard rocks .
---Or mixed.
Our Service
1.Professional technical support pre-sale, sale and after-sale .
2.Your problems can get feedback in 8 hours and be solved in 24 hours.
3.Machine can be customized as per your requirement.
4.One year quality warranty.
5.Training: operation manual and DVD operation video, overseas installation is also available.
6.Spare parts are available in our factory at cost price for former customers.
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd. has more than 40 years experience of production and development of drilling rig equipment.Our drilling rigs are widely applicable for water well, farm irrigation, geological prospecting, small pile foundation, geothermal
air-conditioner and so on, capable and functional. Our professional engineer and sales teams, offering technical support and useful advice whenever you need.
Thanks for browse our products information. If you want to know more about drilling rig, Pls contact me directly:
Nora
Skype/MSN: nora-drillingrig @
Phone/WhatsApp: 86-15286806707
Email: nora @
Send Inquiry to This Supplier
