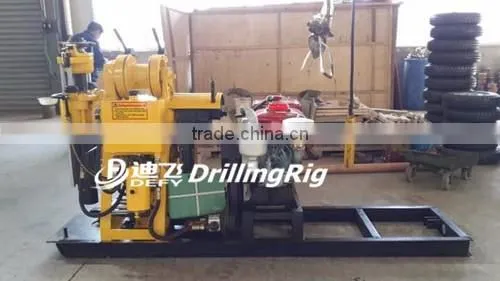

DF-Y-1 Portable Concrete Core Drill Machine photo-3

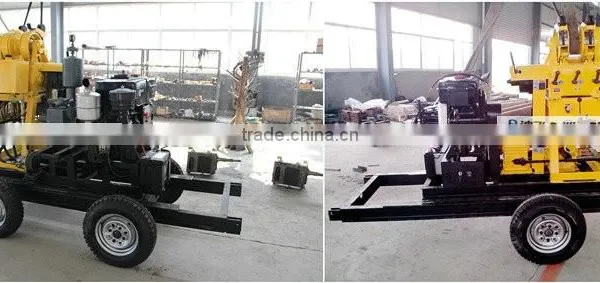

DF-Y-1 Portable Concrete Core Drill Machine photo-4
DF-Y-1 Portable Concrete Core Drill Machine photo-5
DF-Y-1 Portable Concrete Core Drill Machine photo-6
US$ 9,000 - 18,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DF-Y-1
Usage Ore
Voltage 220V/380V
Power(W) 10.3 KW
Dimension(L*W*H) 1620*970*1560 mm
Weight 620 Kg(Exclude power unit)
Certification ISO, BV, SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

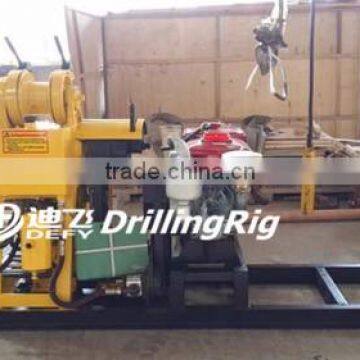

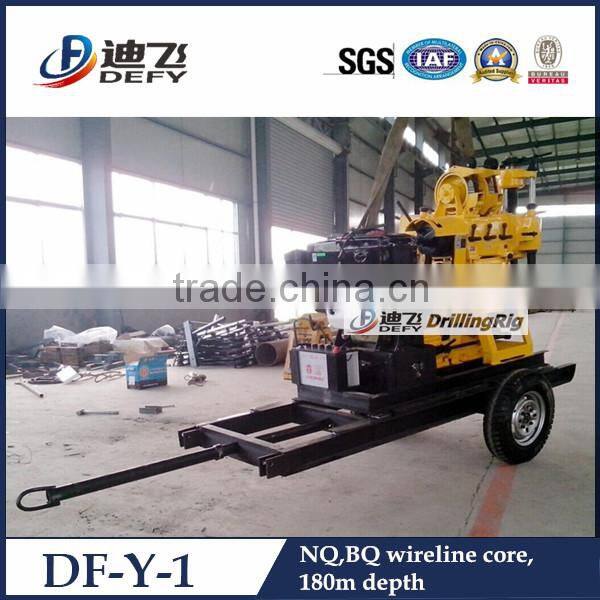

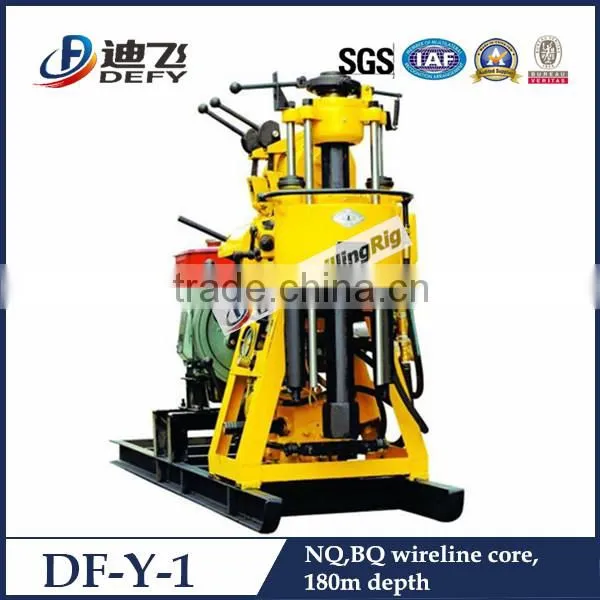

DF-Y-1 Portable concrete core drill machine

DF-Y-1 Portable concrete core drill machine is applicable to drill all kinds of ground, such as soil, mud, sand, gravel, weathering rocks, hard rocks and son on.

Features

1. DF-Y-1 Portable concrete core drill machine are Spindle rotary type, hydraulic controlling, fast drilling speed.

2. Can be equipped with either diesel engine or electrical motor.

3. Compact volume.

4. Can be mounted on wheel-trailer, crawler or truck.

5. Very durable to use, long service life.

Technical Parameter
DF-Y-1 Portable concrete core drill machine
1.Drilling capacity
  Drilling depth
100,180 m
  Initial hole dia. max.
150 mm
  Final hole dia.
75,46 mm
  Rod dia.
42,43 mm
  Drilling angle range
90-70°
Overall dimensions (L×W×H)
1620×970×1560 mm
Weight (exclude power unit)
620 Kg
2.Swivel head
  Spindle speed
1010,790,470,140 r/min
  Spindle stroke
450 mm
  Spindle speed as lifting up no load max
3 m/s
  Spindle speed as lowering down no load max
4 m/s
  Feeding pressure max.
23 KN
  Lifting capacity (single line) max
11 KN
3.Hoist
  Lifting capacity (single line) max
11 KN
  Drum speed
121,76,36 r/min
Drum circumferential velocity (two layers)
1.05, 0, 66, 0, 31 m/s
  Drum dia
140 mm
  Cable dia
9.3 mm
  Spool capacity
35 m
  Brake dia
252 mm
  Brake band broad
50 mm
4.Oil pump
  Model
YBC-12/80
  Working pressure
8 MPa
  Volume of flow
8 ml/r
  Speed
1500r/min
5.Power unit
  Diesel engine
S1100A2
  Power
10.3 KW
  Speed
2000 r/min

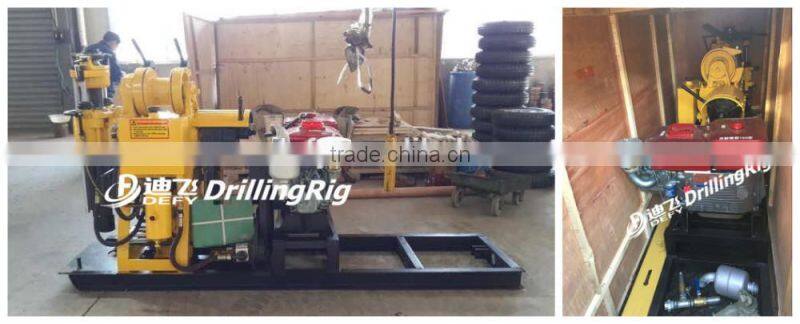

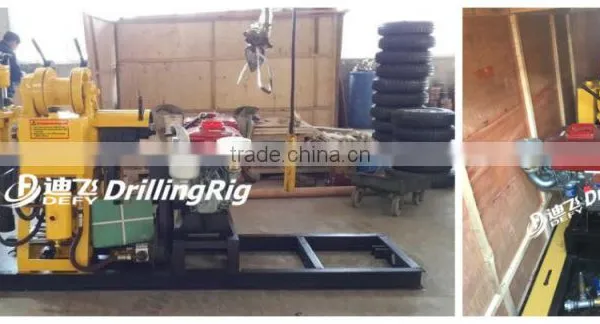

Packing & Delivery

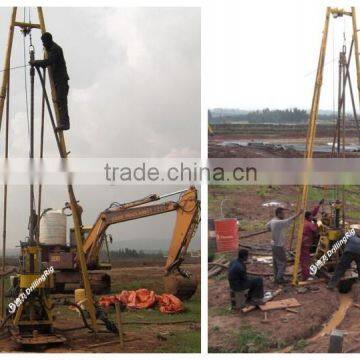

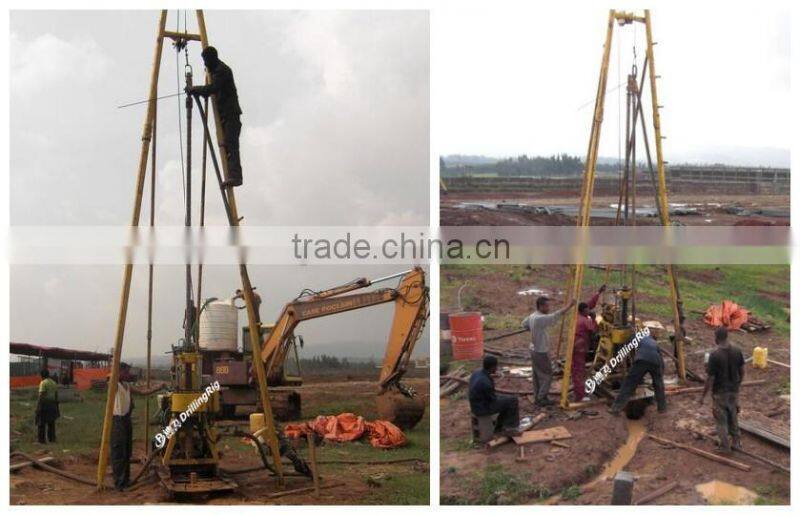

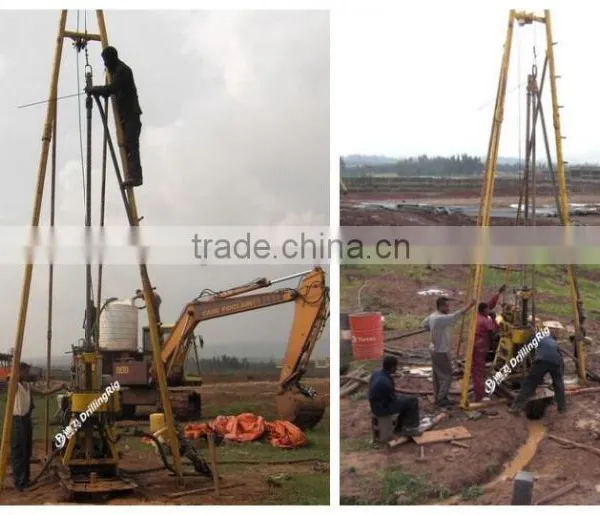

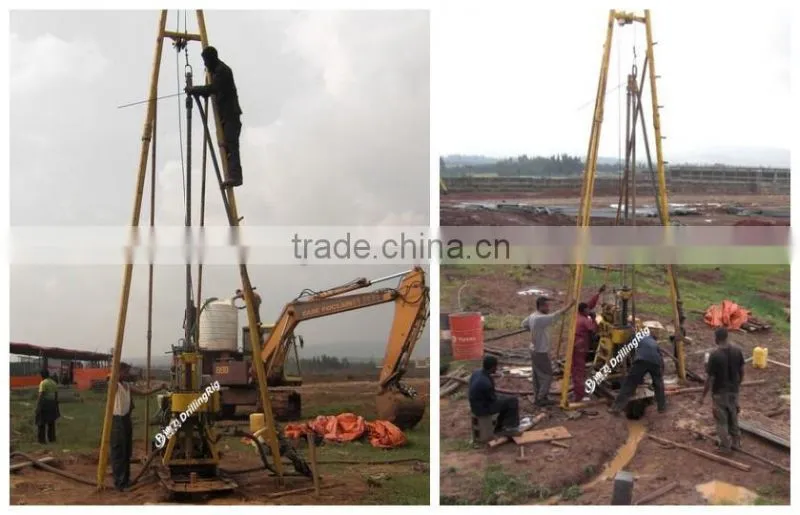

Working Site
Our Company

ZhengZhou Defy 12 years professional exporting experience, realiable drilling machine manufacturer since 1970S.

Defy offer water well drilling machines drilling depth from 100m, 200m, 400m, 600m, 800m and 1500m. with 75-1500mm diameter. geotechnical core drilling machine from 0-3000m depth.

Spindle rotary type drilling machine, pneumatic air operated drilling machine, trailer, crawler, truck mounted drilling machine for your choices.

Please don`t hesitate to contact us if DF-Y-1 Portable concrete core drill machine is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
