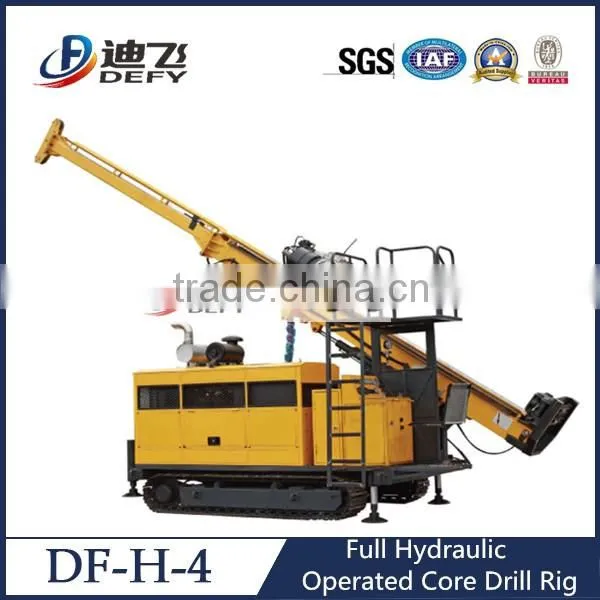

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-1
DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-2

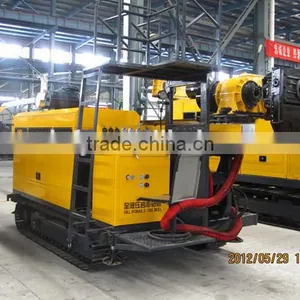

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-3

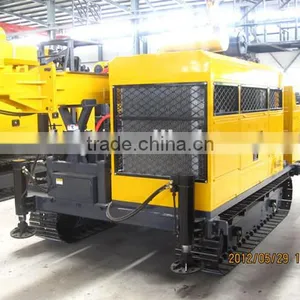

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-4

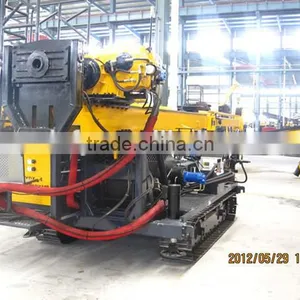

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-5
DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools thumbnail-6
DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-1
DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-2

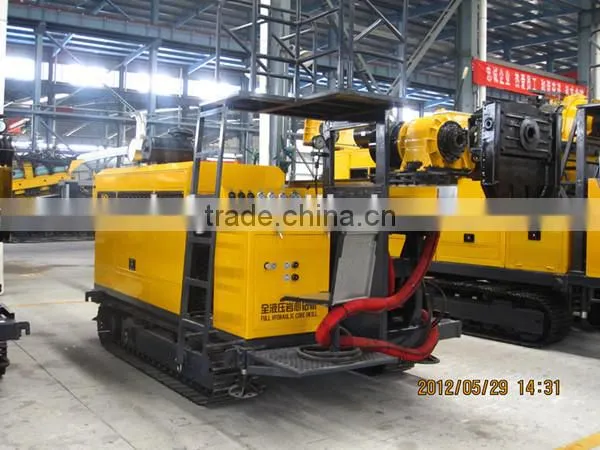

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-3

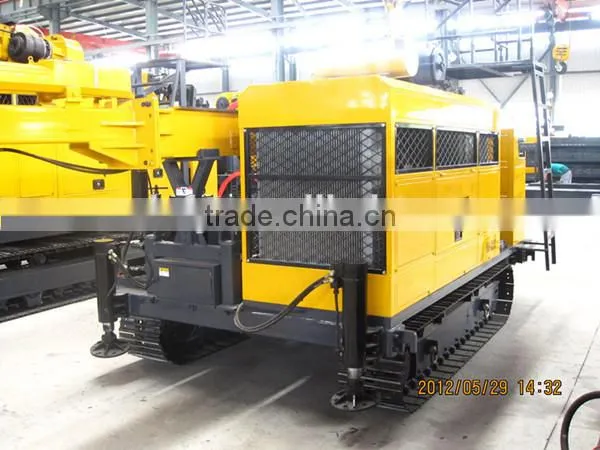

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-4

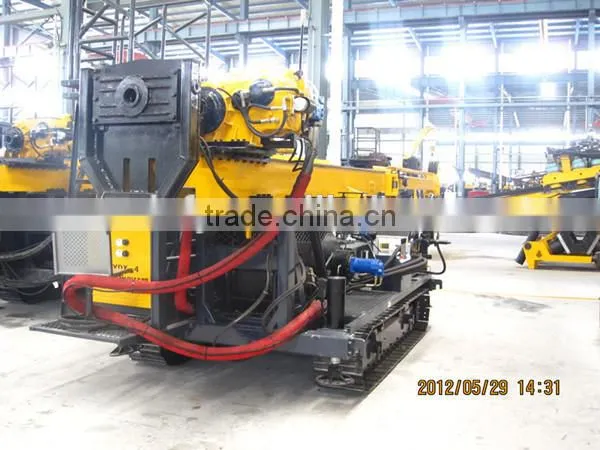

DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-5
DF-H-4 Portable Full Hydraulic Core Drill Rig With Wireline Tools photo-6
US$ 160,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name DEFY
Model Number DF-H-4
Usage Other, core drilling
Voltage 220V/380V
Power(W) 132Kw (180HP)
Dimension(L*W*H) 5100*2200*2650mm
Weight 9300 Kg(20506 lb)
Certification BV,SGS
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

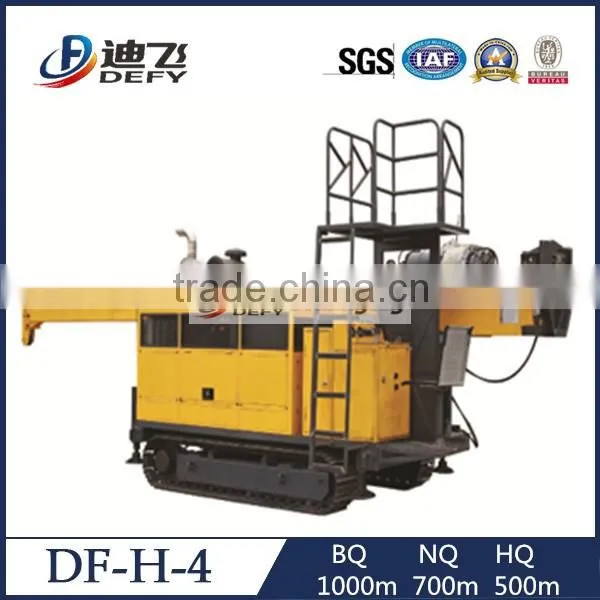

DF-H-4 Portable full hydraulic core drill rig with wireline tools

DF-H-4 Portable full hydraulic core drill rig are widely applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and other industries.

Technical Parameter
DF-H-4 Portable full hydraulic core drill rig with wireline tools



Diesel Engine
Model
Cummins 6BTA5.9-C180
(turbocharged and charge water cooled)
Displacement
5.9L (1.56 US Gallons)
Power
132Kw (180HP)
Rated RPM(Factory setting)
2200rpm


Drilling Capacity
BQ
1000m(3280feet)
NQ
700m(2296 feet)
HQ
500m(1640 feet)
PQ
300m(984 feet)








Drill Head
Rotation Motor
Hydraulic Motor-variable Maker: SAUER-DANFOSS
RPM
Four Shifts/ Stepless Change, 0-1100 RPM
Head Opener
Pivoting style, Manual actuated
Hydraulic Chuck(PQ)
Hydraulically opened, Disc Spring,  Clamping, Normally C Closed Type,  Axial Holding Capacity of 222 400 N
Max. Torque
3700 N·m(2727 lbf·ft)
Hold Diameter
121 mm(4.76 inch)
Max. Lifting capacity of Spindle
150 kN(33720 lbf)
Max. Feeding Power
60 kN(13480 lbf)


Capacity of Main Hoist
Hoisting force (single wire)
57kN(12814 lbf) (bare drum)
Hoisting Speed (single wire)
38-70m/min(bare drum)
Steel Wire Diameter
18 mm(0.71 inch)
Steel Wire Length
50 m(164 feet)


Capacity of Wireline Hoist
Hoisting Force (single wire)
1200 Kg(2646 lb) (bare drum)
Hoisting Speed (single wire)
60-90m/min (bare drum)
Steel Wire Diameter
5.3 mm(0.2 inch)
Steel Wire Length
1000 m(3280 feet)





Mast
Mast Height
9.6 m(31.49 feet)
Mast Adjusting Angle
0°—90°
Drilling Angle
45º off horizontal to 90ºvertical down
Feed Pull
15000kg(33075 lb)
Feed Thrust
6000kg(13230 lb)
Rod Pull
3m or 6m(9.84feet or 19.68feet)
Feeding Stroke
3500 mm(137.80 inch)
Slippage Stroke
600 mm(23.62 inch)


Mud Pump
Type
Reciprocating pump Triplex Plunger
Model
BW160/10
Stroke
70mm(2.76 inch)
Discharge pressure
2.5, 4.0, 6.5, 10.0 Mpa  (363, 580, 943, 1450 psi)

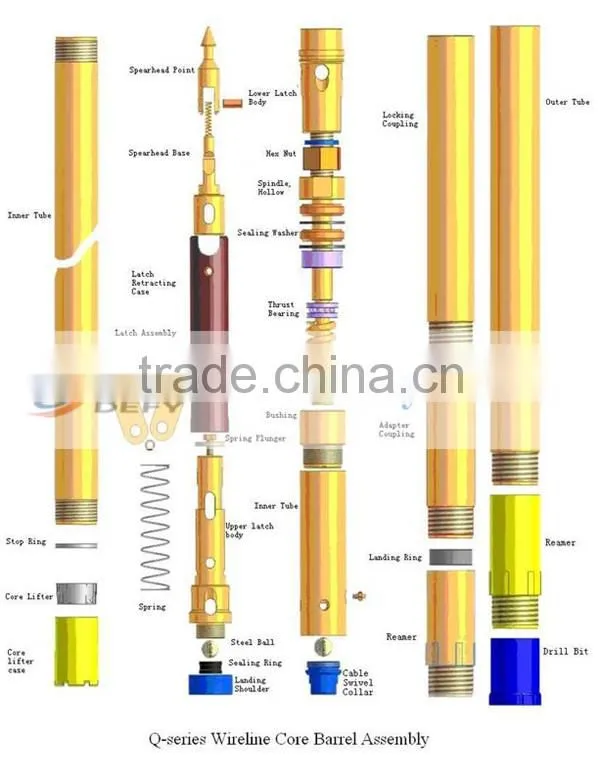

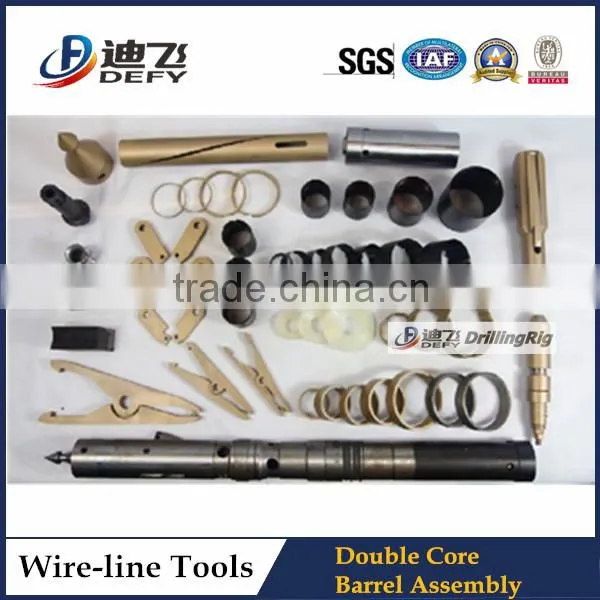

Drilling Tools
Working Site

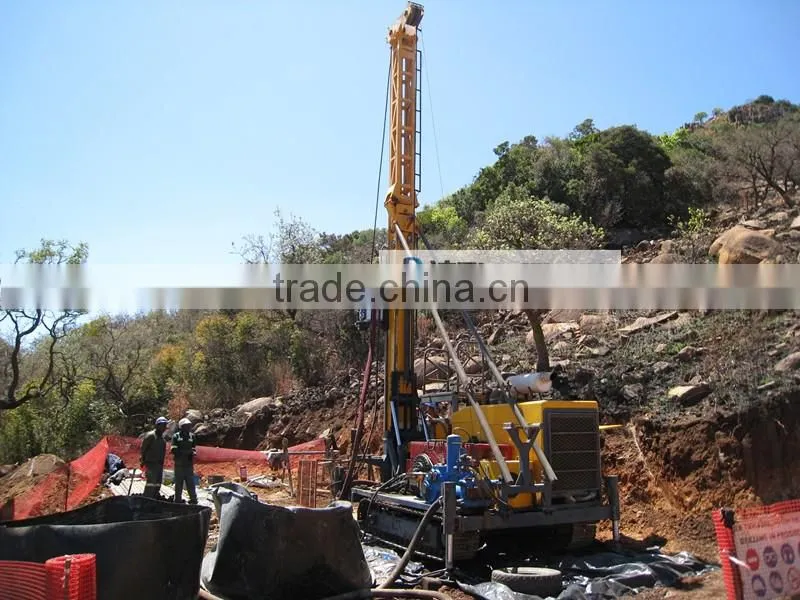

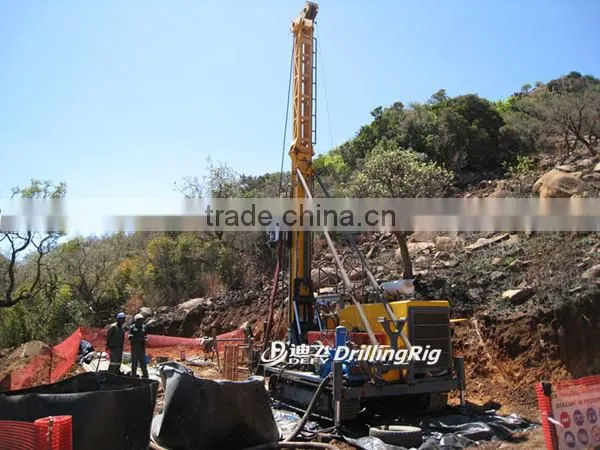

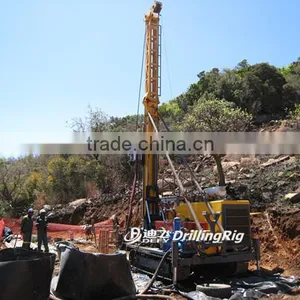

DF-H-4 Portable full hydraulic core drill rig working site
