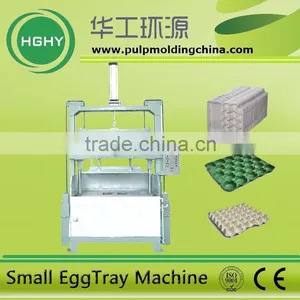

semi automatic small molded pulp tray making machine
- 20000 Set / Sets per Month
- Guangzhou Shenzhen
- T/T
- Toilet Paper Cutter/Kitchen Towel Cutting Machine Price with High Performance
- High Capacity 3200mm A3 A4 Paper Writing Paper Recycling Machine, Office Paper Product Machinery for Sale
- Best Price 3200 Model Office Paper Copy Paper Manufacturing Line with Good Reputation
- Henan Toilet Tissue Paper Cutter/Cutting Machine with High Quality
- 1880mm Type Napkin Paper Making Machine Made in China
- Manufacturer Supply1575mm Napkin Paper/Tissue Paper Manufacturing Machine
Product Details
Condition: | New | Product Type: | Egg Tray Machine | Processing Type: | Pulp Molding Machine |
Place of Origin: | Guangdong, China | Brand Name: | HGHY | Model Number: | 800A |
Voltage: | 220-440 | Power(W): | 97 | Dimension(L*W*H): | 50*12*4.5 |
Weight: | 2ton | Certification: | CE | Warranty: | 12 Monthes |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
1.Description of semi automatic small molded pulp tray making machine
Type of products | 30-cellegg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6-cell egg carton/box | 6-cell egg carton/box | Fruit tray | Cup carrier |
capacity (PCS/HR) | 800 | 800 | 800 | 800 | 1600 | 400 | 800 |
Production line occupation:about400m2.Requirement for the
workshop: height ≥4.5m,width≥12m,length≥30m. ·
Total power for the production line :97KW. ·
Workforce for the production line:6-8/shift. ·
Main parts adopted are with International brand which are reliable in quality and convenient
in after sales service.And engergy saving is the most distinctive feature of HGHY eqipments
compared with congener equipments internationally. ·
The equipments equiped in this production line are supposed to the production of 30 cell
egg trays.
If the users plan to produce egg cartons,cup carriers or fruit trays etc., they should add
the hot pressing,labeling or printing equipment and other auxiliary equipments. The
occuppation area,total power and workforce will be increased accordingly. For further
inquiry, please feel free to contact us.

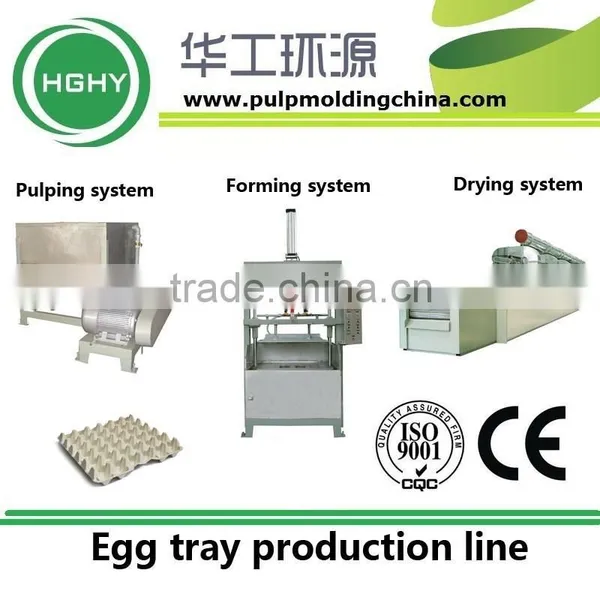

2.equipments of semi automatic small molded pulp tray making machine
Pulping system | Main equipments:pulper,1.7m3,22kw; vibration screen,1m2,3kw ;mixers;pulp pumps;water pumps;control cabinet and etc. |

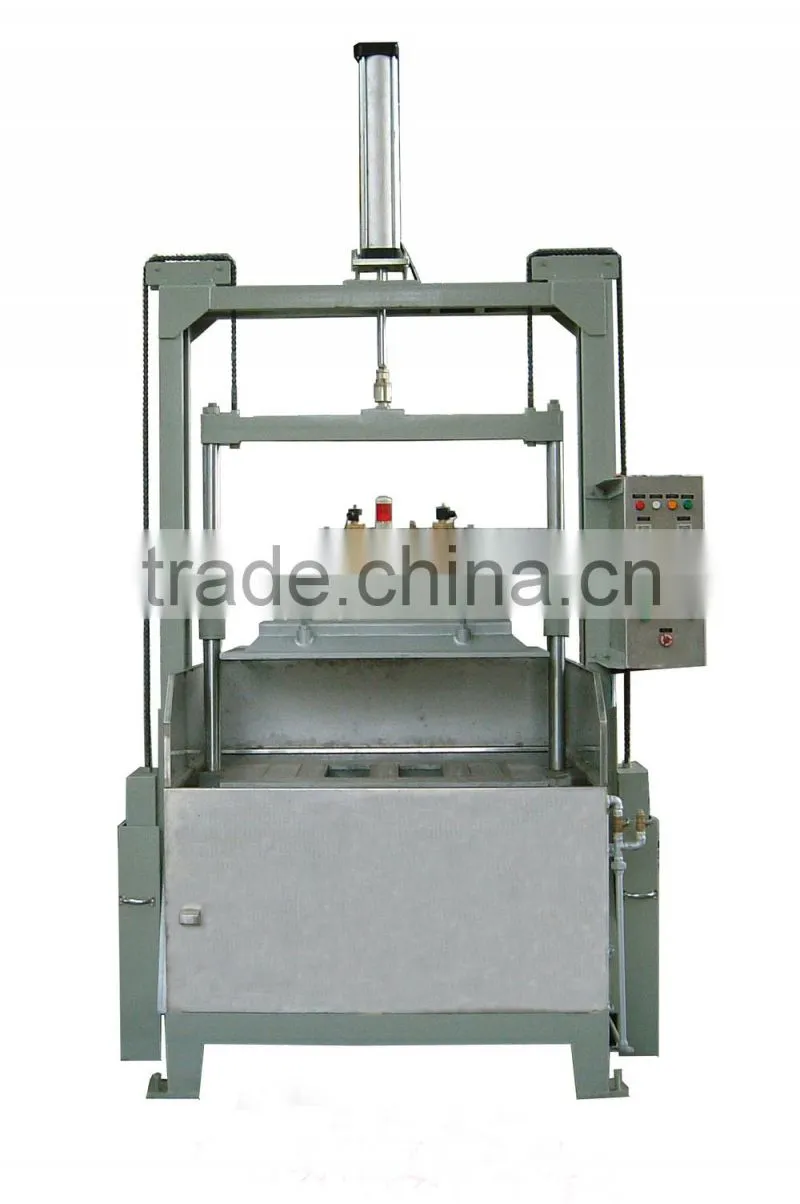

Forming system | Including two sets of forming machine; vacuum auto drain system and auto control cabinet.One piece of forming platen and transfering platen equiped on each forming machine.Platen size:750*400mm. It can be mounted 2sets of 30-cell egg tray mold on the platen of each machine,4sets in total(4pcs/cycle). Cycle time:15-20 seconds/cycle. |
Drying system | Outline dimension:16000*2950*3600mm; single layer conveying chain,two burners of French or Italian brand.The enery for option: LPG,GAS,diesel oil.Equiped with auto control cabinet. |
Subsidary Equipments | Vacuum pump,30kw, one set; air compressing system: air compressor(15kw,1set),air dryer,air filter and air storage tank. |

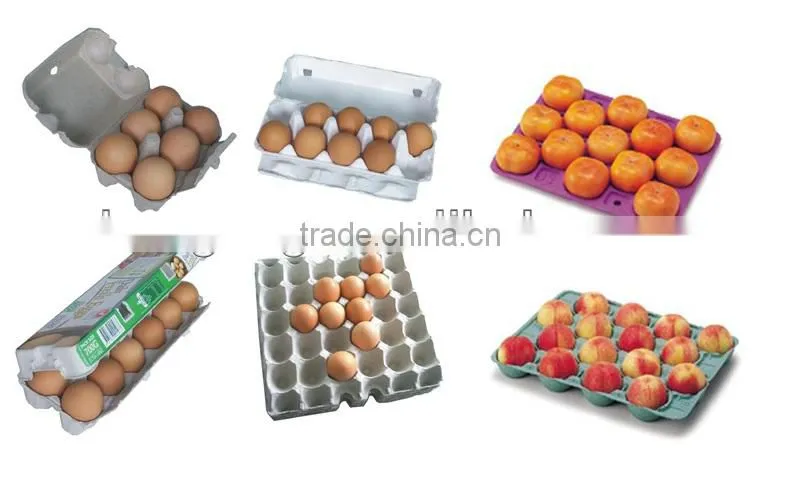

3.application of semi automatic small molded pulp tray making machine

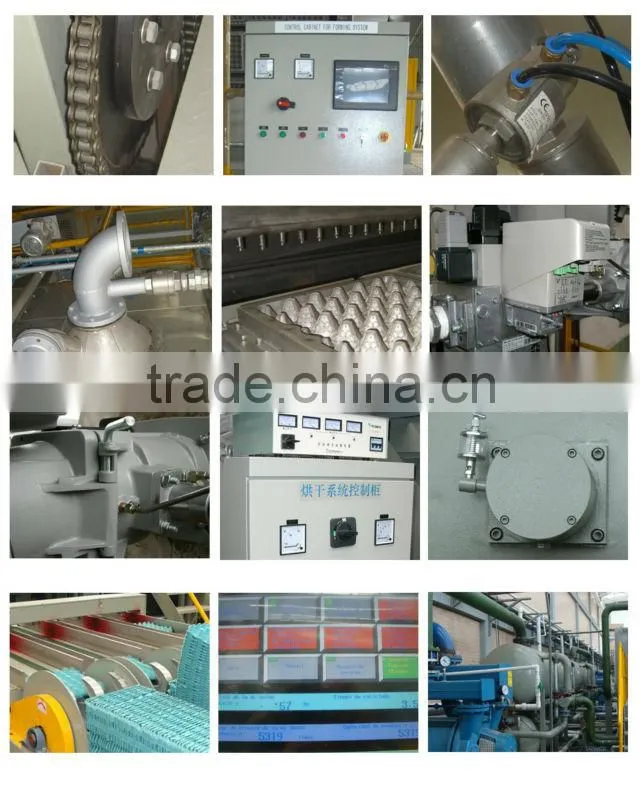

4.details of semi automatic small molded pulp tray making machine
5.why HGHY is your best choice
- With more than 18 years of expertise and experience, HGHY is one of the earliest manufacturer
for Pulp Molding Products in China;
- Combined with high and new technologies from science professors of famous university SCUT,
with R&D personnel over 30 people, HGHY is the most reliable choice to ensure superb
performance in the long run;
- HGHY offers the widest range of both equipment/machine types and platen/tooling sizes, as well
as a comprehensive moulds per platen, which meets almost all kinds of need;
- HGHY's factory covers an area of 24,000 square meters, commands more than 60% of the total
domestic sales, already exported to over 40 countries and areas;
- Excellent engineers, sales and service team brings the best before and after sales service, to
ensure long-term satisfaction from customer and mutual benefits.
6.FAQ
(1).What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
(2).What kind of Fuel can be used for the whole production line?
Gernerally is coal,natural gas,dieseal oil can be selectable.
(3).What kind of products can be made by this machine?
All paper trays like paper egg tray,egg carton,egg box,fruit tray,bottle tray,electric product
packing,shoes tray etc.
(4).Are you manufacturer?
Yes,HGHY have been making pulp molding machine for more than 20 years ,we are one of the
most important pulp molding machine maufacturer in the world,and we are the largest pulp
molding machine manufacturer in China.
(5).How to contact you?
(A)Visit us.Our head office is in Building C3-1103, International Creative Valley, No.99 Kexue
Dadao Road, Science City, Guangzhou, P.R. China. The nearest airport Baiyun airport.
(B)Send email to tell us your requirments.
(C)Call us. Our Tel:86-020-62327808
(D)Visit us in some exhibition. HGHY attend most of the exhibition which relevant to the pulp
molding industry, we will advance notice some exhibition plans in our website.
(6).How many countries have your machine been installed ?
Many countries like Algeria,Nigera,Malawi,Bolivia,Sudan,Jordan,Egypt,Uzbekstan,Malaysia,
Russia,Poland,France, etc.

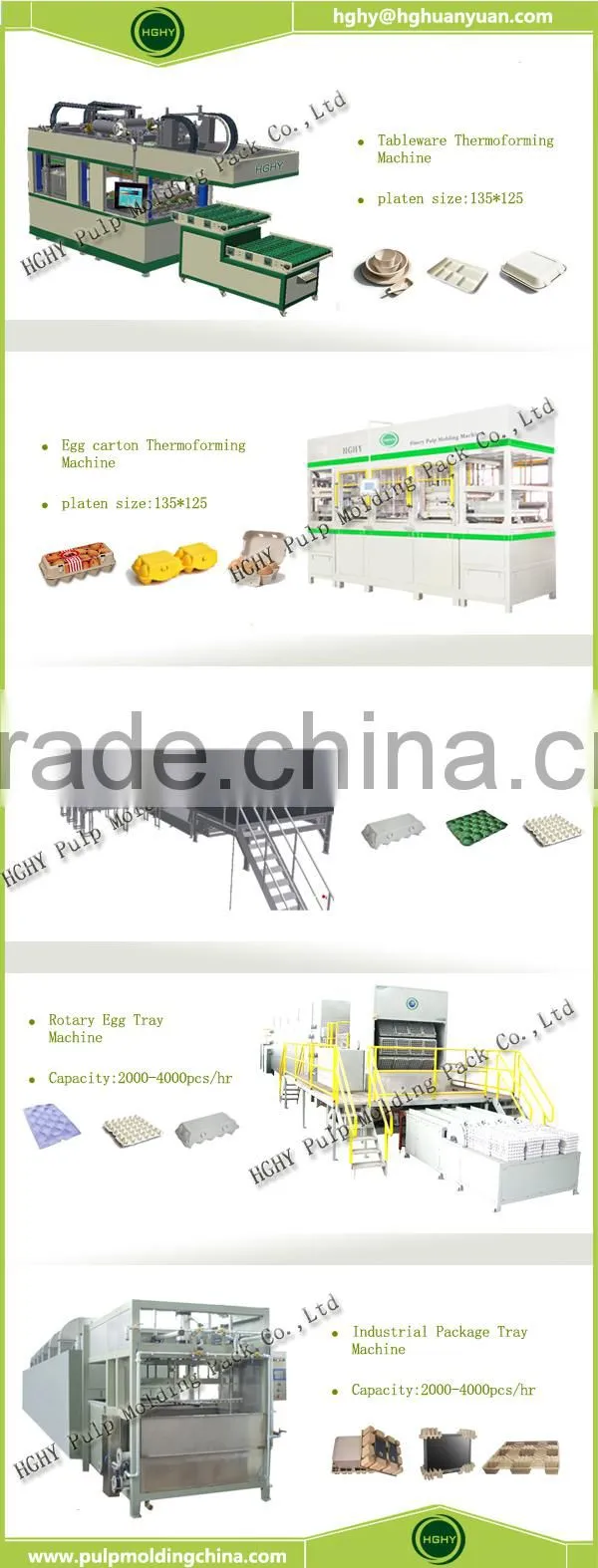

7.More pulp molding machine
