used waste recycling waste paper egg tray machine egg tray plant

Name: used waste recycling waste paper egg tray machine egg tray plant
Brand: HGHY
Availability: InStock

FOB Price

USD $610,000 - $650,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Guangzhou Shenzhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Product Type	Egg Tray Machine
Processing Type	Pulp Molding Machine	Place of Origin	Guangdong, China
Brand Name	HGHY	Model Number	4000B1C
Voltage	380-440	Certification	CE
Warranty	12 Monthes	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

- Fully automatic
- Energy saving and labor utilization
- The best egg tray machine
- Reliable supplier
- HGHY Brand

1.introduction of used waste recycling waste paper egg tray machine egg tray plant

Mainly used for the products with simple structure but in big quantity, paper pulp packaging ,such as egg

trays, egg carton ,egg box,egg plate,fruit trays, cup carriers and disposable medical care products.

Status: Brand new

Product Type: Egg Tray Machine

Processing Type: Pulp Molding Machine

Place of origin: Guangdong China

Brand: HGHY

Item no: 4000B1C

Voltage: 380-440V

Approval: CE

Warranty: 12 Monthes

After-Sale Service: Engineers available to service machinery overseas

2.specification of used waste recycling waste paper egg tray machine egg tray plant

Type of products	30-cell egg tray	12-cell egg carton/box	10-cell egg carton/box	6+6- cell egg carton/box	6-cell egg carton/box	Fruit tray	Coffee tray
capacity (PCS/HR)	4000	4000	4000	4000	8000	3000	5000

Remarks: The capacity calculation takes the production of 30 cavity egg trays as

the standard.(Size 300X290MM, weight 70g)

nsumption of used waste recycling waste paper egg tray machine egg tray plant

NO.	DESC	CONSUMPTION PER HOUR	REMARK
1	Waste Paper	290-310kg
2	Electricity	180-200kw
3	Water	2-3T
4	0# Diesel Oil	60-80kg	Choose anyone from the three
	Natural Gas	75-100m³
	LPG	60-80kg
5	Chemical for Water Resistence	2-5kg	Solid Content (This data only for reference )
The Calarific Value of the Fuel	10000K CARL/kg for Diesle Oil		Energy Consumption of NO.4 is counted with these data.
	8000K CARL/m³ for Natural Gas
	10000K CARL/kg for LPG

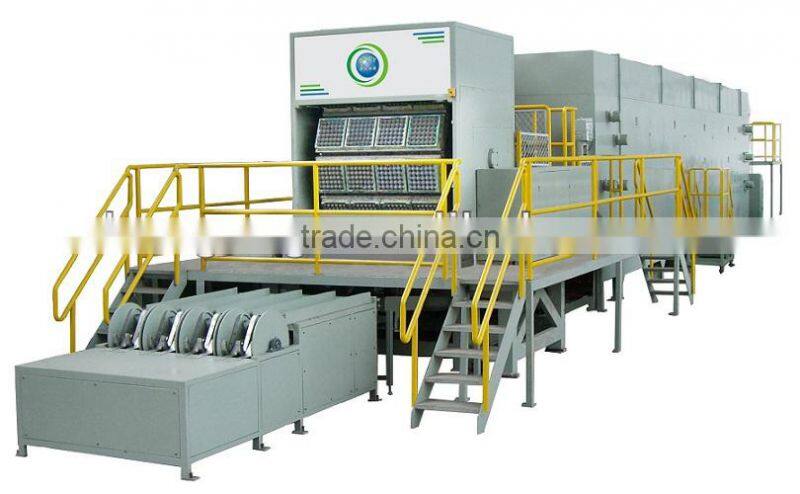

3.productino show of used waste recycling waste paper egg tray machine egg tray plant

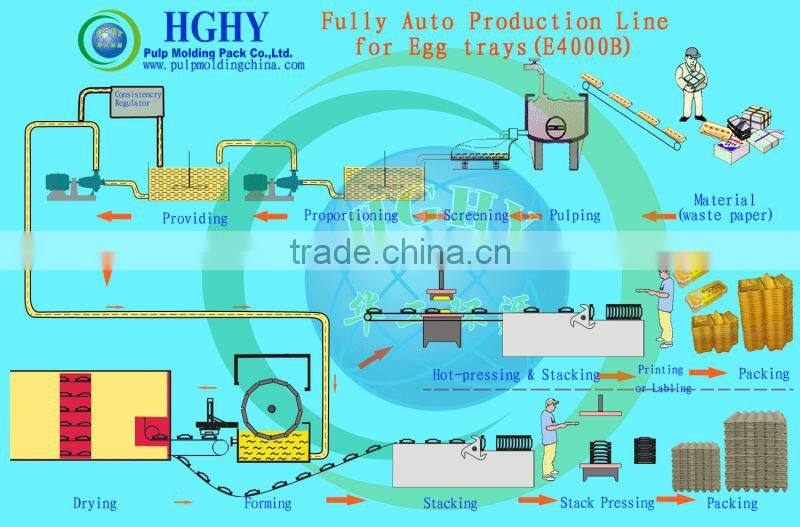

4.main equipmnets of used waste recycling waste paper egg tray machine egg tray plant

Pulpimng system	Main equipments:pulper,3m³,55kw;vibration screen,1.8m²,4kw; consistency controller;mixer;auto sizing system; pulp pump,water pump,control cabinet for pulping system,etc.
Forming system	Consist of 12 pcs of forming platens and 1pc of transfering platen. Platen size:1600*400mm. 4pcs of 30-cell egg tray molds can be mounted on each forming platen(4pcs/cycle). There are 48pcs of forming molds and 4pcs of transfering molds in total. Forming efficiency :16-18cycles/min;equiped with vacuum auto drain system,auto cleaning system for the forming mold, preheating system and auto control cabinet.
Drying system	Outline dimension:21000×2120×4200mm;6 layer conveying chian; heated concentratedly; one burner with French or Italian brand. The energy for option: LPG,GAS,diesel oil. Equiped with auto control cabinet.
Stacking system	The finsihed products will be counted and stacked automatically after drying.
Height Limit Pressor	It will press and make the products more compact after stacking so that storing and transporting will be more convenient and cost-effective .
Subsidary Equipments	Vacuum pump,37kw, two sets; air compressing system: air compressor(22kw,1set),air dryer,air filter and air storage tank.

5.application of used waste recycling waste paper egg tray machine egg tray plant

6.details of used waste recycling waste paper egg tray machine egg tray plant

7.why HGHY is your best choice

- With more than 18 years of expertise and experience, HGHY is one of the earliest manufacturer

for Pulp Molding Products in China;

- Combined with high and new technologies from science professors of famous university SCUT,

with R&D personnel over 30 people, HGHY is the most reliable choice to ensure superb

performance in the long run;

- HGHY offers the widest range of both equipment/machine types and platen/tooling sizes, as well

as a comprehensive moulds per platen, which meets almost all kinds of need;

- HGHY's factory covers an area of 24,000 square meters, commands more than 60% of the total

domestic sales, already exported to over 40 countries and areas;

- Excellent engineers, sales and service team brings the best before and after sales service, to

ensure long-term satisfaction from customer and mutual benefits.
