Specifications
1.Name: Pulp Molding Egg Tray Machine2.Lower production cost
3.Lower lobor cost
4.Easy to operate
5.Medium investment
Introduction ________________________________________________________

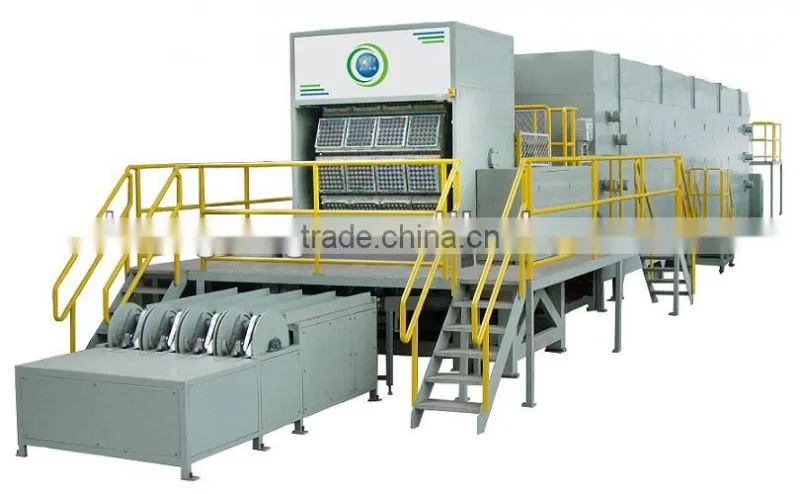

HGHY Fully Automatic Rotary Egg Tray Machine XZ12-16040-E4000B1C
Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
Status: Brand new
Product Type: Egg Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: HGHY
Item no: XZ12-16040-E4000B1C
Voltage: 380-440V
Approval: CE
Warranty: 12 Monthes
After-Sale Service: Engineers available to service machinery overseas
Specification_______________________________________________________
| Capacity(B) | Pulper | Rotary Forming Machine | Dryer |
| 2000 PCS/hr | Volume 2m3, power 37Kw | 4 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 15000X2120X4200MM, Fuel: diesel, gas, LPG |
| 3000 PCS/hr | Volume 3m3, power 55Kw | 8 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 18000X2120X4200MM, Fuel: diesel, gas, LPG |
| 4000 PCS/hr | Volume 3m3, power 55Kw | 12 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 21000X2120X4200MM, Fuel: diesel, gas, LPG |
Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.
(Size 300X290MM, weight 70g)
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6- |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
capacity (PCS/HR) |
/ |
4000 |
/ |
/ |
/ |
/ |
/ |
. Production line occupation:about 24×72(m).
Requirement for the workshop: height>=5.5m.
. Total power for the production line :1391.75KW.
. Workforce for the production line:9-12people/shift.
. Main parts adopted are with International brand which are reliable in quality and
convenient in after sales service.And engergy saving is the most distinctive
feature of HGHY eqipments compared with congener equipments internationally.
. All the water are recycled used in the production and the raw material is waste
paper, so the water should be changed in certain time. For the countries that
lack of water, a water purifying system is recommended. ï¬
. The supplier will be responsible for the instruction in installation,test running
and training. Warranty: one year since finishing the installation.
. The equipments equiped in this production line are supposed to the production
of 12-cell egg carton/box. If the users plan to produce egg cartons,cup carriers or fruit
trays etc., they should add the hot pressing,labeling or printing equipment and
other auxiliary equipments. The occuppation area,total power and workforce will
be increased accordingly. For further inquiry, please feel free to contact us.
Product Show________________________________________________________

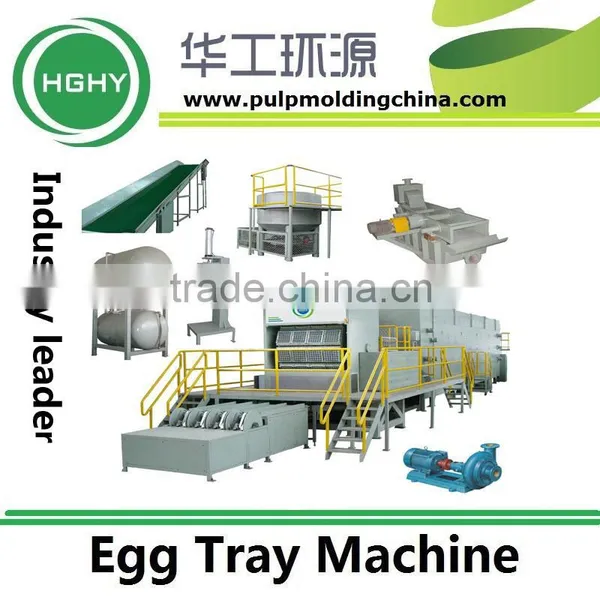

Main Equipments__________________________________________________________
Application________________________________________________________________
Details Glance_______________________________________________________________

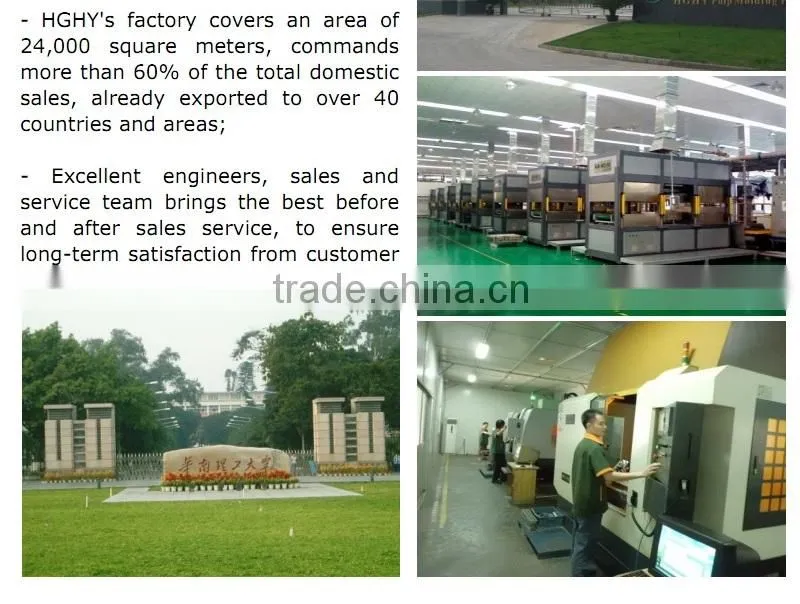

Why HGHY________________________________________________________________
