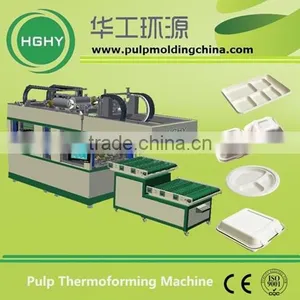

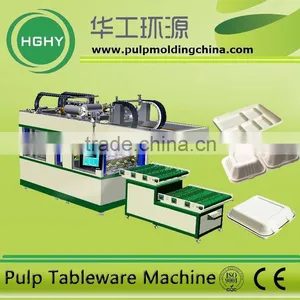

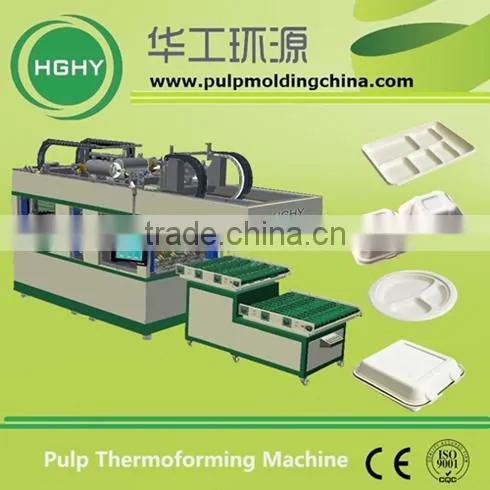

Introduction of paper pulp tableware thermoforming Machine
The pulp molded tableware is usually made of wood or grass pulp.
The pulp disposable tableware is smashed in the hydrapulper and adjusted to a
certain consistency.
After being added to some chemicals, the fiber in the pulp will cover the wire mesh
of the mold with the effect of the vacuum.
The wet products become to the finished products after drying, hot pressing, edge
cutting and disinfection.
All these are finished automatically on the machine, which is efficient, safe, lower
in labor and production costs.
Status: Brand new
Product Type: Paper Plate Machine
Processing Type: Pulp Molding Machine
Place of origin: Guangdong China
Brand: HGHY
Item:C2
Voltage: 380-440V
Approval: CE
Warranty: 12 Monthes
After-Sale Service: Engineers available to service machinery overseas
Main equipments of paper pulp tableware thermoforming Machine
| NAME AND TYPE | ||
| Pulping System | 1 | ZSJD-1.7 HydraPulper |
| 2 | PZ-1.7 Operation Platform | |
| 3 | JB-120-160 Agitator | |
| 4 | JB-60-90 Agitator | |
| 5 | JB-160-310 Agitator | |
| 6 | Double disk refiner | |
| 7 | 606 Pulp Centricleaner | |
| 8 | Automatic Control System Accessories | |
| 9 | KZT1.7 Countrol Cabinet for pulp Proportioning | |
| 10 | KZ1.7 Control cabinet for Pulping | |
| Forming and drying System | 11 | ZJWD—135125 Full Automatic Thermal forming Machine |
| 12 | Air water separation tank | |
| 13 | Buffer tank | |
| 14 | Noise baffler tank | |
| 15 | Control Cabinet for Forming System | |
| Other | 16 | Ultraviolet Disinfection Line |
| 17 | Mold | |
main consumptino of paper pulp tableware thermoforming
Machine
| NO. | DESC | CONSUMPTION PER HOUR | REMARK | |
| 1 | pulp | 50-60kg | ||
| 2 | water | 2-3T | ||
| 3 | electricity | 420-480kw.hr | heating by electricity | |
| 280-320kw.hr | if heating by thermal oil | |||
| 4 | Chemical | water-proof | 2~2.5kg | Solid Content consistence 20-23% (This data only for reference ) |
| oil-proof | 0.4~0.5kg | |||
| other | ||||
| 5 | Fuel | 0# Diesel Oil | 25-30kg | heating by thermal oil (This data only for reference ) |
| or Natural Gas | 31-38kg | |||
| or LPG | 25-30kg | |||
| Remark | The Calarific Value of Diesel Oil | 10000K CARL/kg | Energy Consumption of NO.4 is counted with these data | |
| The Calarific Value of Natural Gas 8000K CARL/kg | ||||
| The Calarific Value of LPG | 10000K CARL/kg | |||
application of paper pulp tableware thermoforming Machine
detials of paper pulp tableware thermoforming Machine
FAQ
(1).What kind of material we can use as the raw material?
Any kind of waste paper like old newspaper,magazines,books,A4 paper etc, and easy to get
(2).What kind of Fuel can be used for the whole production line?
Gernerally is coal,natural gas,dieseal oil can be selectable.
(3).What kind of products can be made by this machine?
All paper trays like paper egg tray,egg carton,egg box,fruit tray,bottle tray,electric product
packing,shoes tray etc.
(4).Are you manufacturer?
Yes,HGHY have been making pulp molding machine for more than 20 years ,we are one of the
most important pulp molding machine maufacturer in the world,and we are the largest pulp
molding machine manufacturer in China.
(5).How to contact you?
(A)Visit us.Our head office is in Building C3-1103, International Creative Valley, No.99 Kexue
Dadao Road, Science City, Guangzhou, P.R. China. The nearest airport Baiyun airport.
(B)Send email to tell us your requirments.
(C)Call us. Our Tel:86-020-62327808
(D)Visit us in some exhibition. HGHY attend most of the exhibition which relevant to the pulp
molding industry, we will advance notice some exhibition plans in our website.
(6).How many countries have your machine been installed ?
Many countries like Algeria,Nigera,Malawi,Bolivia,Sudan,Jordan,Egypt,Uzbekstan,Malaysia,
Russia,Poland,France, etc.
