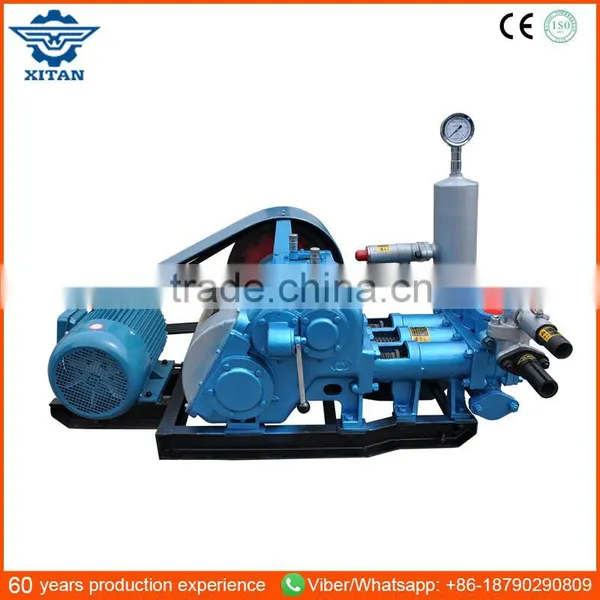

BW250 Factory price small drilling mud pump for sale
BW250 mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with 1500 meters drilling rig, it also can be used cement perfusion.
Model |
BW250 |
|
Type |
Horizontal triplex single acting reciprocating piston pump |
|
Stroke (mm) |
100 |
|
Cylinder diameter (mm) |
80 |
65 |
Pump speed (times/min) |
200 116 72 42 |
200 116 72 42 |
Flow (l/min) |
250 145 90 52 |
166 96 60 35 |
Pressure (Mpa) |
2.5 4.5 6 6 |
4 6 7 7 |
Power (Kw) |
15 |
|
Shape size (mm) |
1560*995*650 |
|
Weight (kg) |
650 |
|
It is used for conveying mud for drilling, emission of mine sewage and transporting water for long distance.
1. It has four grades flow to meet large or small diameter drilling need, the adjustment scope is wide.
2. Pistons are bowl with nylon back, have a longer life.
3. There are 5 anti-dust sealed rings to prevent mud entering machine.
4. Drain valve is made of steel ball.
5. It is detachable and easy for maintenance and relocation.
For more information about mud pump, please email us freely.
