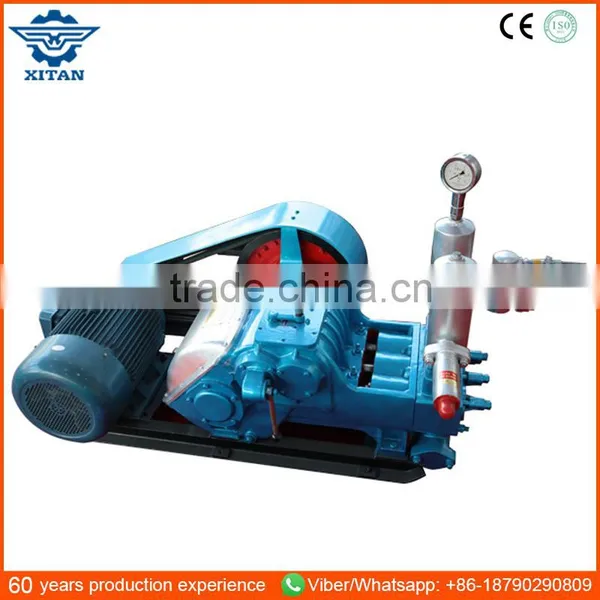

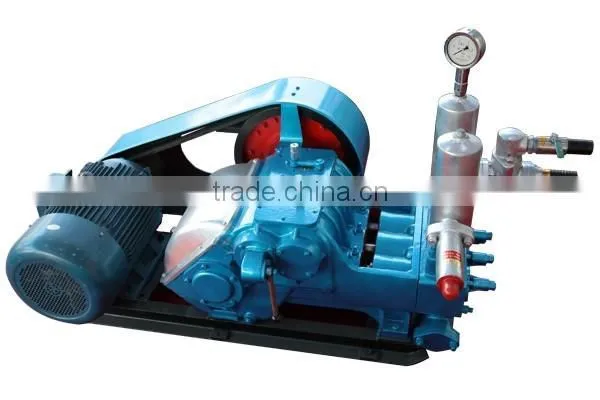

BW350/13 price triplex mud pump for drilling rig
BW350/13 mud pump is horizontal, tri-cylinder, reciprocating single-acting piston pump, four different pressures and flows are available. Output and holes depth can be adjusted freely, it can match 2000m drilling machine at the deepest, the max. Pressure can arrive at 13 Mpa, and it can also been used to perfuse slurry.
The power has electric driving and diesel driving, customer can choose before ordering. It can also use hydraulic motor to drive.
Model |
BW350/13 mud pump |
Type |
Horizontal three cylinder reciprocating single acting piston pump |
Cylinder diameter (mm) |
85 |
Stroke (mm) |
110 |
Pump speed (times/min) |
194 125 92 71 |
Flow (l/min) |
350 235 188 134 |
Pressure (Mpa) |
7 9 11 13 |
Power (Kw) |
45 |
Shape size (mm) |
1905*1100*1200 |
Weight (kg) |
720 |
Suction tube diameter (mm) |
76 |
Discharge pipe diameter (mm) |
51 |
Hole Depth (m) |
Less than 2500M for diamond core drilling Less than 1800m for conventroxal core drilling |
Main Features of mud pump:
Compact structure, light weight, small volume, beautiful appearance, is driven by a hydraulic motor, electric power or diesel engine.
BW series slurry pump is horizontal triplex grout pump with high stability and high pressure.
Mud pump has gear shift to adjust the flow, large output capacity, simple operation.
High quality pump parts, less wearing parts, long service life, low construction cost.
It has fast suction-discharge speed, high pump efficiency.
Mud pump has less noise and dust, environmental operation.
MUD PUMP is used to transfer WATER, MUD and other FLUSHING FLUIDS when drilling in water well, oil and gas well area.
The MUD PUMP is used for conveying different liquids in petroleum, chemistry in industries.
For more information about mud pump, please email us freely.
