High Carbon and Low Carbon Galvanized Steel Wire
- shanghai
- T/T
You May Like
Product Details
| Steel Grade | high carbon and low carbon galvanized steel wire | Standard | AISI, ASTM, BS, DIN, GB, JIS | |
| Wire Gauge | 1.5-6.0mm | Place of Origin | Zhejiang, China | |
| Type | Galvanized | Application | Other, communication | |
| Alloy Or Not | Non-alloy | Special Use | Cold Heading Steel | |
| Model Number | high carbon and low carbon galvanized steel wire | Brand Name | WANSHENG |
Product Description
High Carbon and Low Carbon Galvanized Steel Wire 1.Material: 45,65,70, 72A, 72B, 82B, 65Mn 5. Application: Being used for electric cables,telephone cables,armouring cables and so on
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface to guarantee coating
|
Technical parameters
Wire dia: 0.8-3.2mm; Tensile Strength:490~343Mpa
Nominal Diameter | Tolerances of Diameter | Nomina Tensile Strength | Standard |
mm | Mpa | Mpa | As per GB,EN,IEC,JIS,ASTM standard,as well as customer's request |
0.8 | +/-0.03 | 343-490 | |
0.9 | +/-0.03 | 343-490 | |
1.0 | +/-0.03 | 343-490 | |
1.2 | +/-0.05 | 343-490 | |
1.4 | +/-0.05 | 343-490 | |
1.6 | +/-0.05 | 343-490 | |
1.8 | +/-0.05 | 343-490 | |
2.0 | +/-0.05 | 343-490 | |
2.2 | +/-0.08 | 343-490 | |
2.3 | +/-0.08 | 343-490 | |
2.6 | +/-0.08 | 343-490 | |
2.9 | +/-0.08 | 343-490 | |
3.2 | +/-0.08 | 343-490 |
NOTE:Providing engineer design as per cstomer's request.

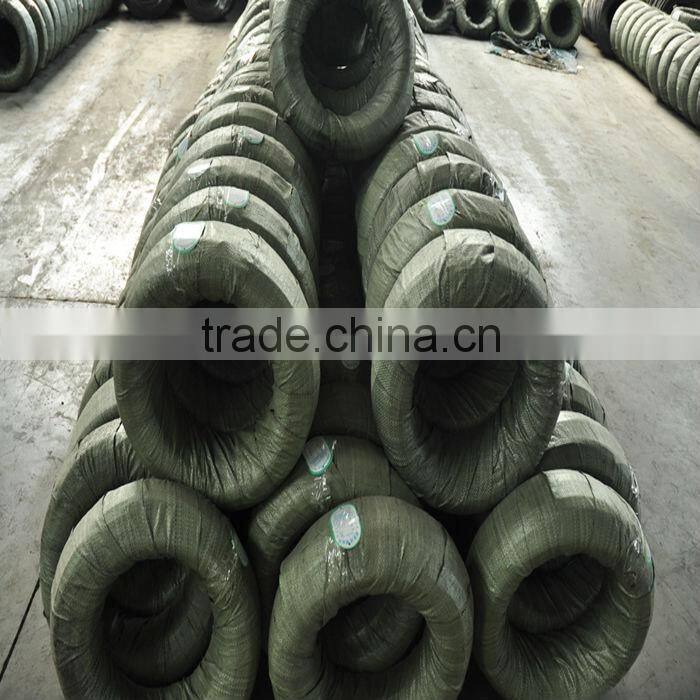

Packing:

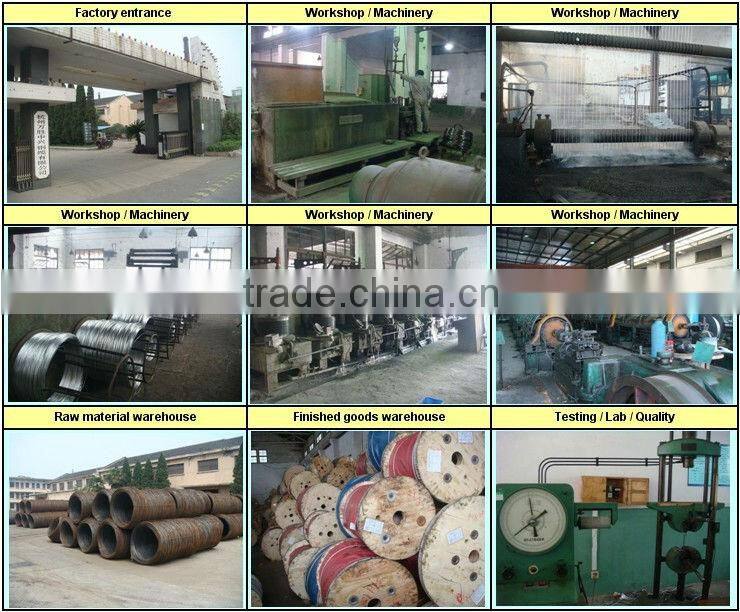

Factory Picture:
