Specifications
High Carbon Wire for Cable1.High tensile strength
2.Good wear resistance
3.Small tolerance
High Carbon Wire for Cable
1.Material: 45,65,70, 72A, 72B, 82B, 65Mn
2. Surface Coating: Galvanized
3. Characteristic: High tensile strength
Good wear resistance
Small tolerance
4. Packing type: Spool; Coil
5. Application: Being used for electric cables,telephone cables,armouring cables and so on
6. Remarks during use and handling:
a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel wires must be stored in dry and well ventilated indoors
b. Pay attention to the direction of steel wires when paying-off. Be sure the spools or coilis rotationg freely as to achieve identical tension of all the steel wires
c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface to guarantee coating
Technical parameters
Wire dia: 0.8-1.6mm; Tensile Strength:2060~1570Mpa
| Nominal Diameter | Tolerances of Diameter | Nomina Tensile Strength | Standard | ||
| mm | Mpa |
Mpa | As per GB,EN,IEC,JIS,ASTM standard,as well as customer's request | ||
| 0.8 | +/-0.01 | 1770-2060 | |||
| 0.9 | +/-0.01 | 1770-2060 | |||
| 1.0 | +/-0.01 | 1770-2060 | |||
| 1.2 | +/-0.02 | 1770-2060 | |||
| 1.26 | +/-0.02 | 1770-2060 | |||
| 1.4 | +/-0.02 | 1570-1960 | |||
| 1.6 | +/-0.02 | 1570-1960 | |||
NOTE:Providing engineer design as per cstomer's request.

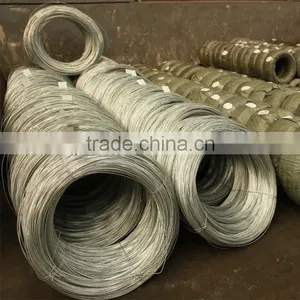

Factory Picture:
