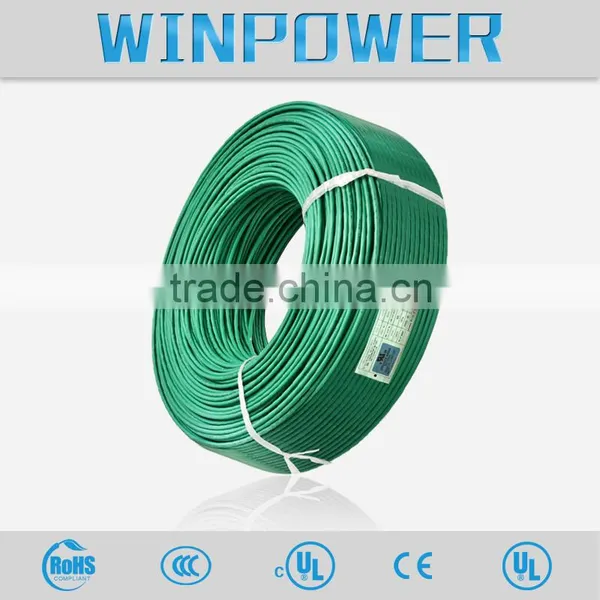

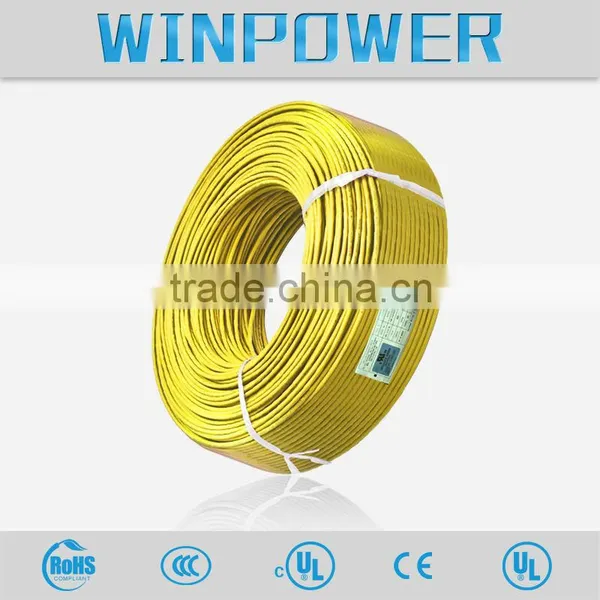

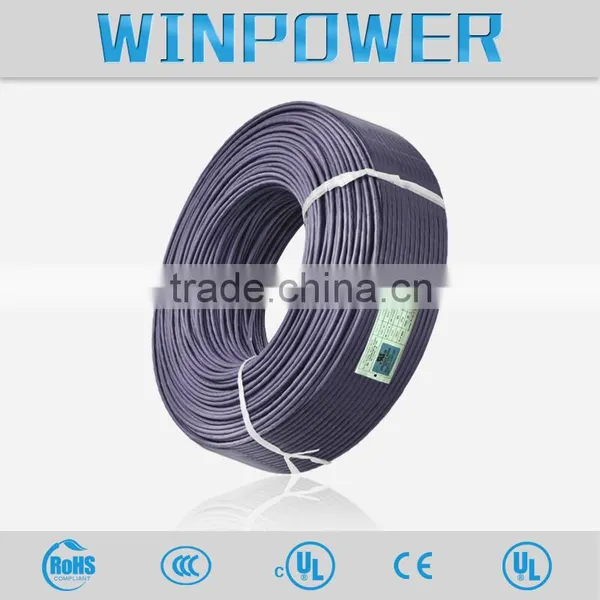

UL10368 xlpe insulated 26 awg copper electrical wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.
SPECIFICATION: 24 AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
FLAME TEST: CSA FT2 flame test
RATED TEMPERATURE: 105 Deg Centigrade
RATED VOLTAGE: 300v
CONDUCTOR: 7/0.2mm stranded tinned copper
INSULATION THICKNESS: 0.25mm
PE OUTER DIAMETER: 1.10 mm
MAX. CONDUCTOR RESISTANCE: 94.2 Ω/km
DIELECTRIC STRENGTH: 2000v
CONDUCTOR | INSULATION | MAX.COND. RESISTANCE (Ω/km,20°C,DC) | DIELECTRIC STRENGTH (VAC,1min) | |||
AWG | CONSTRUCTION (No./mm) | DIA. (mm) | THICKNESS (mm) | O.D. (mm) | ||
30 | 1/0.254 7/0.10 | 0.25 0.30 | 0.25 0.25 | 0.75 0.80 | 361 381 | 2,000 |
28 | 1/0.32 7/0.127 | 0.32 0.38 | 0.27 0.26 | 0.85 0.90 | 227 239 | 2,000 |
26 | 1/0.404 7/0.16 | 0.40 0.48 | 0.25 0.26 | 0.90 1.00 | 143 150 | 2,000 |
24 | 1/0.511 7/0.20 | 0.51 0.60 | 0.25 0.25 | 1.00 1.10 | 89.3 94.2 | 2,000 |
22 | 1/0.643 7/0.254 | 0.64 0.76 | 0.25 0.27 | 1.15 1.30 | 56.4 59.4 | 2,000 |
20 | 1/0.813 7/0.32 | 0.81 0.94 | 0.27 0.27 | 1.35 1.50 | 35.2 36.7 | 2,000 |
18 | 1/1.024 16/0.254 | 1.02 1.17 | 0.27 0.31 | 1.55 1.80 | 22.2 23.2 | 2,000 |
16 | 1/1.29 26/0.254 | 1.29 1.49 | 0.25 0.31 | 1.80 2.10 | 14.0 14.6 | 2,000 |
14 | 1/1.60 41/0.254 | 1.60 1.88 | 0.30 0.31 | 2.20 2.50 | 8.78 8.96 | 2,000 |
12 | 65/0.254 | 2.36 | 0.37 | 3.10 | 5.64 | 2,000 |
10 | 105/0.254 | 3.10 | 0.76 | 4.90 | 3.546 | 2,000 |
