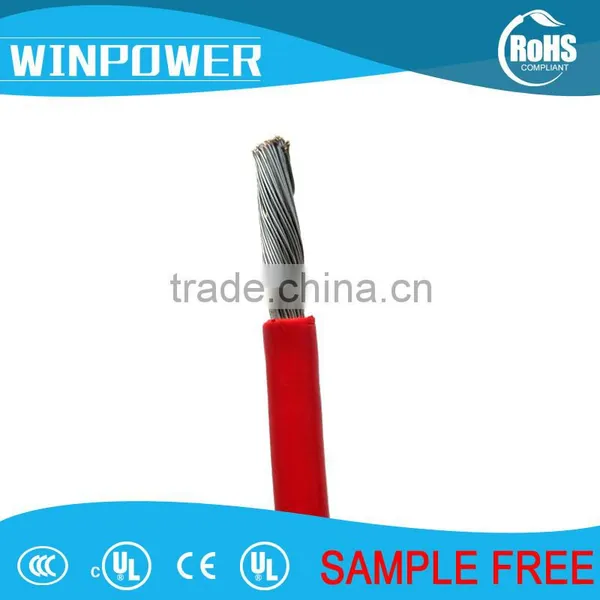

Help CenterUL3386 Polyethylene Insulated 12 Gauge Hard Drawn Copper Wire
Related Products
-
UL3386 Polyethelene Insulated Copper Wire 10 AwgUS$ 0.001 - 99MOQ: 6 Kilometers -
UL3386 Polyethelene Insulated Copper 8 Awg Wholesale Electrical CableUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL3386 Polyethelene Insulated Tinned Copper 8 Awm CableUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL3386 Polyethelene Insulated 6 Awg Low Voltage Electric CableUS$ 0.001 - 99MOQ: 6 Kilometers
-
UL3386 Polyethelene Insulated 4 Awg Low Voltage Annealed WireUS$ 0.001 - 99MOQ: 6 Kilometers
UL3386 polyethylene insulated 12 gauge hook up wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.
SPECIFICATION: 12 AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
F LAME TEST: CSA FT2 flame test
RATED TEMPERATURE: 105 Centigrade
RATED VOLTAGE: 600v
CONDUCTOR:65/0.254 mm stranded tinned copper
INSULATION THICKNESS: 0.76mm
PE OUTER DIAMETER: 4.05mm
MAX. CONDUCTOR RESISTANCE:5.64 Ω/km
DIELECTRIC STRENGTH: 2000v
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
7/0.10 |
0.30 |
0.76 |
1.90 |
381 |
2,000 |
28 |
7/0.127 |
0.38 |
0.76 |
2.00 |
239 |
2,000 |
26 |
7/0.16 |
0.48 |
0.76 |
2.10 |
150 |
2,000 |
24 |
11/0.16 |
0.61 |
0.76 |
2.20 |
94.2 |
2,000 |
22 |
17/0.16 |
0.76 |
0.76 |
2.35 |
59.4 |
2,000 |
20 |
26/0.16 |
0.94 |
0.76 |
2.55 |
36.7 |
2,000 |
18 |
41/0.16 |
1.18 |
0.76 |
2.80 |
23.2 |
2,000 |
16 |
26/0.254 |
1.50 |
0.76 |
3.15 |
14.6 |
2,000 |
14 |
41/0.254 |
1.88 |
0.76 |
3.55 |
8.96 |
2,000 |
12 |
65/0.254 |
2.36 |
0.76 |
4.05 |
5.64 |
2,000 |
10 |
105/0.254 |
3.10 |
0.76 |
4.90 |
3.546 |
2,000 |
8 |
168/0.254 |
4.25 |
0.76 |
6.60 |
2.23 |
2000 |
6 |
266/0.254 |
5.35 |
0.76 |
8.50 |
1.403 |
2000 |
4 |
420/0.254 |
6.70 |
1.15 |
9.80 |
0.882 |
2000 |
2 |
665/0.254 |
8.45 |
1.53 |
11.60 |
0.5548 |
2000 |
1 |
836/0.254 |
9.50 |
2.04 |
13.70 |
0.4398 |
2000 |
1/0 |
1045/0.254 |
10.60 |
2.04 |
14.80 |
0.3487 |
2000 |
2/0 |
1330/0.254 |
12.00 |
2.04 |
16.20 |
0.2766 |
2000 |
3/0 |
1330/0.254 |
13.45 |
2.04 |
17.60 |
0.2194 |
2000 |
4/0 |
2109/0.254 |
14.85 |
2.04 |
19.00 |
0.1722 |
2000 |
