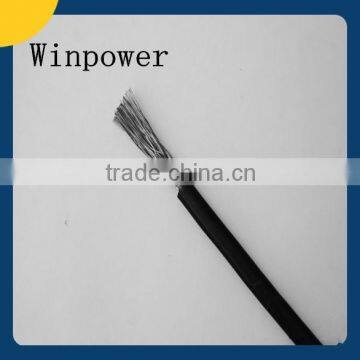

UL3289 16AWM crosslinked insulated copper quality electrical wire appliance
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PE which comply with the European Union RoHS environmental protection instruction.
SPECIFICATION: 16AWG
REFERENCE STANDARD: UL758,UL1581,CSA C22.2No.210.2
F LAME TEST: CSA FT2 flame test
RATED TEMPERATURE: 150 Deg Centigrade
RATED VOLTAGE: 600v
CONDUCTOR: 26/0.254mm stranded tinned copper
INSULATION THICKNESS: 0.77mm
PE OUTER DIAMETER:3.15 mm
MAX. CONDUCTOR RESISTANCE: 14.6Ω/km
DIELECTRIC STRENGTH: 2000v
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
AWG |
CONSTRUCTION (No./mm) |
DIA. (mm) |
THICKNESS (mm) |
O.D. (mm) |
||
30 |
7/0.10 |
0.30 |
0.77 |
1.90 |
381 |
2,000 |
28 |
7/0.127 |
0.38 |
0.77 |
2.00 |
239 |
2,000 |
26 |
7/0.16 |
0.48 |
0.77 |
2.10 |
150 |
2,000 |
24 |
11/0.16 |
0.61 |
0.77 |
2.20 |
94.2 |
2,000 |
22 |
17/0.16 |
0.76 |
0.77 |
2.35 |
59.4 |
2,000 |
20 |
26/0.16 |
0.94 |
0.77 |
2.55 |
36.7 |
2,000 |
18 |
41/0.16 |
1.18 |
0.77 |
2.80 |
23.2 |
2,000 |
16 |
26/0.254 |
1.50 |
0.77 |
3.15 |
14.6 |
2,000 |
14 |
41/0.254 |
1.88 |
0.77 |
3.55 |
8.96 |
2,000 |
12 |
65/0.254 |
2.36 |
0.77 |
4.05 |
5.64 |
2,000 |
10 |
105/0.254 |
3.10 |
0.77 |
4.90 |
3.546 |
2,000 |
Packing: Coils: 610m / Roll ,with PE film as outer package
Carton A:51cm*25cm*27cm Carton B: 33cm*33cm*33cm
Delivery: 3-15 days after receiving the down paym
ent
Terms of payment : T/T (30% down payment and pay off after receiving the duplicate of B/L)
L/C at sight
1. Sample Available
2. OEM are offered
3. Professional technology support
4. Convenient transportation path to DANYANG
1) Take flight to Shanghai,and aboard Harmony train from Shanghai Station to Danyang Staiion about one and half hour
2) Takeflight to Changzhou, and aboard Harmon train from Changzhou Station to Danyang Station about 20 minutes
