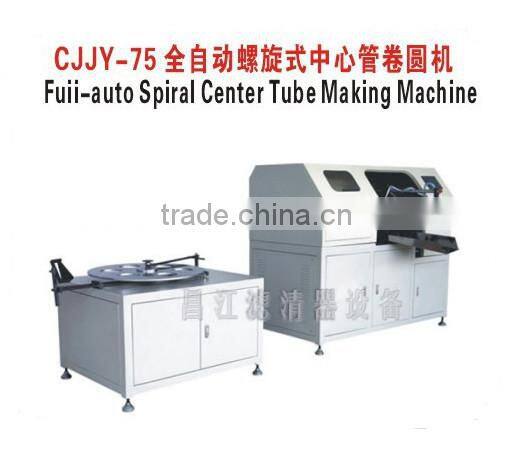

25-120mm filter center spiral tube making machine of carbon filter

This machine is used to produce the spiral filter cores instead of traditional process. It rolls in the galvanized coil sheet to form by extrusion and then to be seamed together and cut as per requested length.

1. Output: 20 - 25 Pieces/minute

2. Spiral filter core diameter: 30 - 110mm

3. Spiral filter core length: Adjustable

4. Metal sheet thickness: 0.25 - 0.40mm

5. Motor power: 3KW   380V

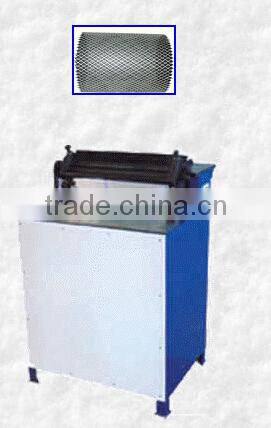

Filter Core Circling Machine

This tube making machine is used to circle the inner or outer filter cores.

1. Output: 7 Pieces/minute

2. Spiral filter core diameter: 50--250mm

3. Spiral filter core length: ≤600mm

4. Motor power: 0.75KW  380V

5. Weigh: 300KG

6. Machine Dimension:

   800 x 600 x 900m
