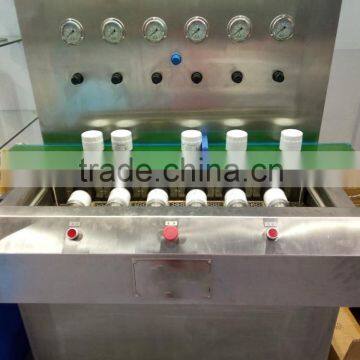

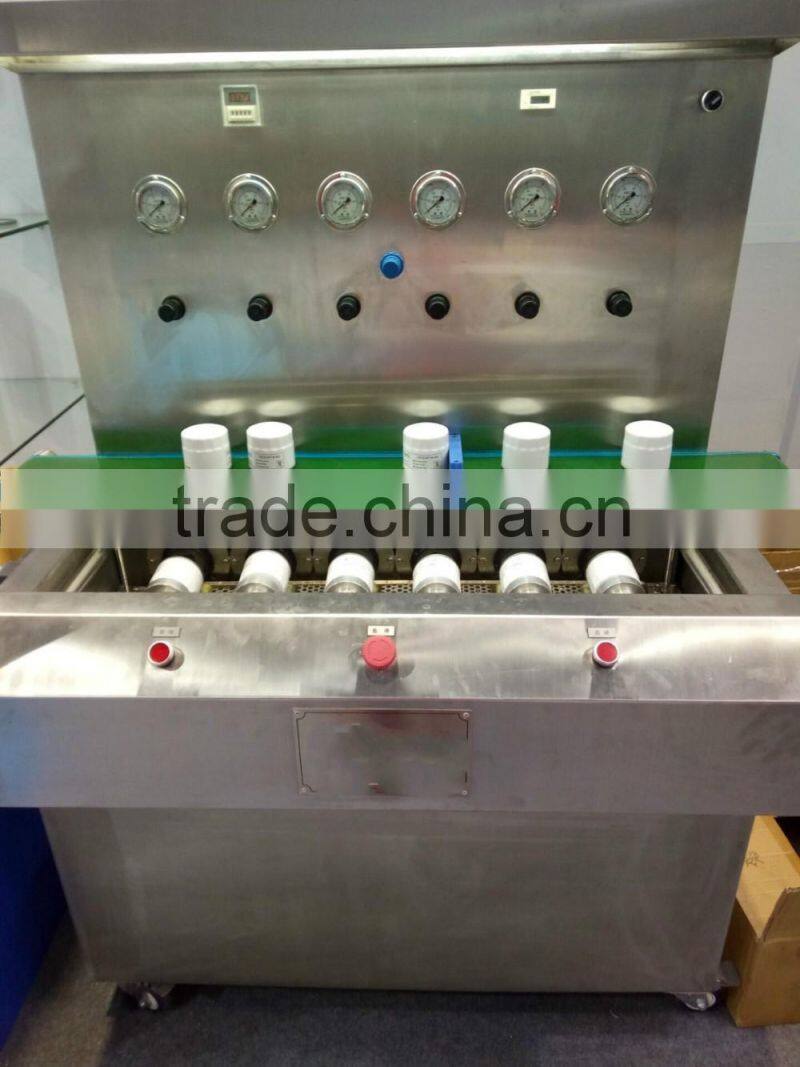

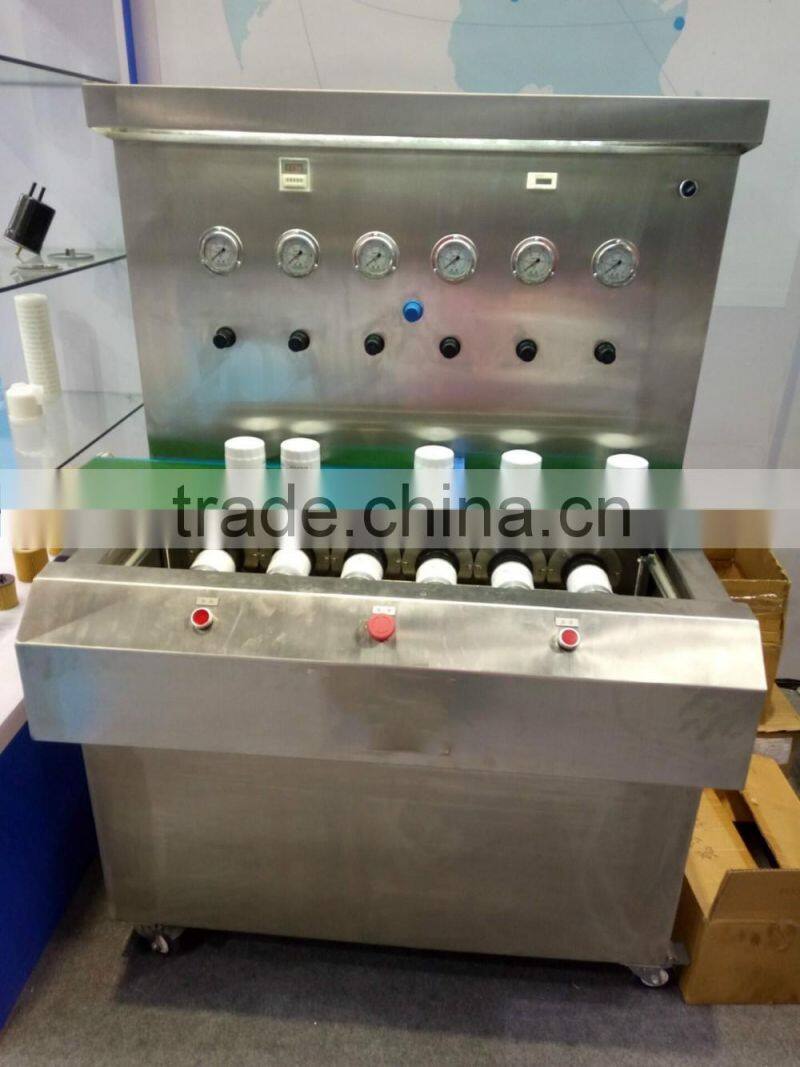

Oil Filter Leakage Testing Equipment With Six Working Stations
US$ 500 - 24,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHANGJIANG
Model Number:
CJ-6
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO AND SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Auto Silk Printing Machine For Spin On Filter 60 - 100mmUS$ 500 - 24,000MOQ: 1 Set -
Auto Turntable Seaming Oil Filter Making Machine With High SpeedUS$ 500 - 24,000MOQ: 1 Set
-
Six Working Stations Filter Manufacturing Equipment With 28pcs / MinUS$ 500 - 24,000MOQ: 1 Set
-
PLC Control Auto Turntable Oil Filter Making Machine , Product Capacity 30 - 50 Pcs/min From Filter Machine ManufacturersUS$ 500 - 24,000MOQ: 1 Set
-
Automatic Sealing Plate Glue Injection Machine 20PCS / MINUS$ 500 - 24,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
CHANGJIANG
Model Number
CJ-6
After-sales Service Provided
Engineers available to service machinery overseas
Description:
1. This tester is applicable for testing the leak tightness of jet filter.
2. It is equipped with 6 stations and a set of independent pneumatic control system, featuring automatic clamping, air charging and return functions to meet the leakage testing requirement for the jet filters with batch production.
3. Replacing carrier plate and adjusting the locating plate of air inlet can test the leak tightness of jet filters with different diameter and height.
Specifications:
| Testing range | Φ40mm~Φ100mm |
| Filter height | 50mm~200mm |
| Working air pressure | 0.8MPa |
| Precision of pressure gauge | 1.5 Grade |
| Production speed | 6pcs/min~12pcs/min |
| Dimension | 940mmX700X1200mm |
| Weight | 80kg |
Features:
- The threaded connections and the sealing rings for the test stand can be changed for the different types of the spin-on filter in order to inspect the sealing performance for the different types off the oil and fuel filters. The threaded connection will be easy and quick to be changed.
- Control the testing duration through adjusting the time relay to obtain high productive efficiency.
- Adjust air pressure and upper or lower stroke when needed, which make the test direct viewing and accurate.
- Adopting the water pressure testing way, to avoid the main machine goes into the water. So all the parts won’t be rusty and long life using.
