Multi-function Screen Printing Machine of Oil Filter Making Machine

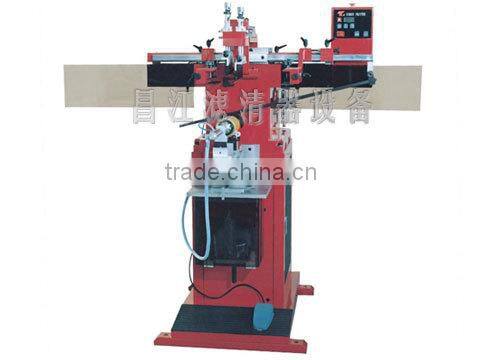

Multi-function Screen Printing Machine of Oil Filter Making Machine photo-1
US$ 500 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
CHANGJIANG
Model Number:
CJSC-500 Mul
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO AND SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name CHANGJIANG
Model Number CJSC-500 Mul
After-sales Service Provided Engineers available to service machinery overseas

Multi-function Screen printing machine of Oil filter making machine

1,General description
The machine is specially used for printing filter housing.
2,Specification
1,Max.size of net frame: 360×650mm
2,Silk printing area: 260×500mm
3,Diameter of goods: 150mm
4,Printing speed: 900pcs/H
5,power supply : 220V/50Hz
6,Working air pressure:0.6Mpa
7,M/C weight: 260kg
8,M/C size: 1060×1100×1540mm(L×W×H)
3,Features
1,Adopts advanced microcomputer controller.
2,Have a number of commonly used functions preset program, to achieve a multi function compatibility.
3,Applied to the cylinder and flat screen printing screen printing multi-purpose machine.
4,The function of the selected program, which can keep the memory put things right once and for all.
5,Remove once caused by the power failure must be reset procedure of the trouble, and without the need of batteries.
6,Using the touch sensitive panel can be directly used a variety of screen printing function, responsive and easy to use.
7,The factory of Germany and Japan's new pneumatic components, durable.
8,The body of light cast aluminum alloy, precision fastening structure.
9,Equipped with special shock absorb-er and scraper speed adjustable, superior performance.
10,Use rigid shaft friction movement of the machine to reduce the mimeograph, and not easy to rust.
