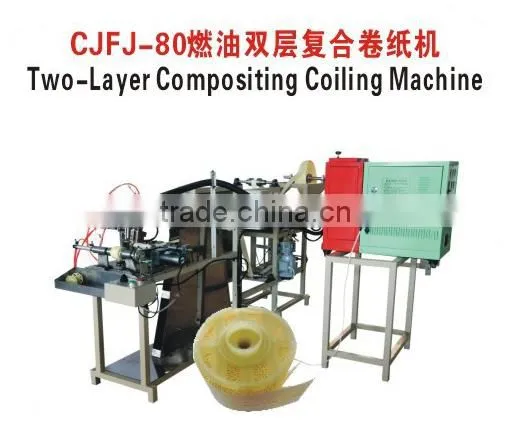

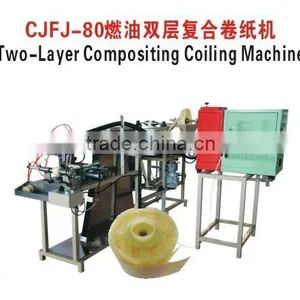

Fuel Filter Element Two Layers Compositing Coiling Machine 80~180pcs/hour
General Description
This machine is suitable for making fuel filter element.
Specification
1.Capacity:80~180pcs/h
2.Coiling Diameter:Φ50~Φ130mm
3.Coiling Width:30~90mm
4.Hoemelt Applicator:20kg
5.Hotmelt Tank Heating Power:8KW
6.Power:220V/50HZ
7.Working Air Pressure:0.6MPa
8.M/C Weight:700kg
9.M/C Size:2800×1000×1800
Feature
1.According to different coiling diameter to ajust coiling speed and coiling tightness.
2.Gluing amount, speed is controlled by frequency converter, The temperature of hose and nozzle are controlled independently.
4.The whole machine is controlled by PLC.
5.This machine has the function of automatic timing heating.
6.This machine can work for two layers fuel filter paper. One layer pleats into corrugated paper.Full-auto compositing,coiling, and counting
7.All spare parts are made in Taiwan.
