Separated HEPA Mini Pleating Machine Air Filter Manufacturing Equipment

FOB Price

USD $500 - $24,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	CHANGJIANG
Model Number	CJWG-700		After-sales Service Provided	Engineers available to service machinery overseas

Detailed Product Description

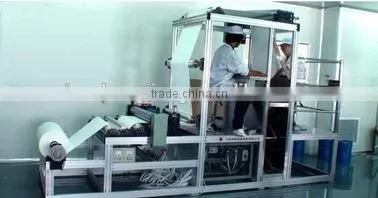

Separated HEPA Mini Pleating Machine Air Filter Manufacturing Equipment

Specification

Max. Width	700mm
Pleating Height Range	20mm-100mm(any six sizes among these ranges)
Product Speed	4-10m/min
The Interval of Gluing	25.4mm
The number of the Gluing	2*26line
Power Supply	380V/50HZ
Main Power	16kw
Working Air Pressure	0.6MPa
M/C Weight	700kg
Hot Melt M/C Dimension	90010001500
M/C Dimension	750010501500

Description

The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
Both the fiber glass pleating and hot melts dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system. So to fast drying the hot melt and cut any length.

Feature

1. This machine equips the cutting and trimming device, which us used to meet different filter specifications.

2. This production line is stainless steel body and aluminum frame, which is strong, nice and long life.

3. High Productive efficiency and good smoothness.

Note

Furthermore, we can customize the paper pleating production line of different specifications.
