Specifications

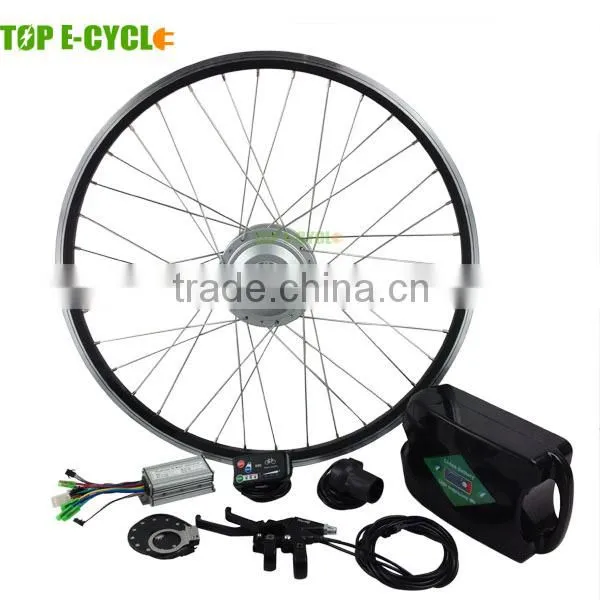

Ebike motor kit:1.Brushless geared hub motor
2.High motor efficiency>80%
3.Easy to install
4.Energy conservation
- Brushless geared motor: brushless motors have more sophisticated controllers than brushed motors, and there are many more connections from the motor to the controller.
- Built-in controller: no messy exposed wirings, less connection problems, easy to install, neat looking products.
- Strong climbing torque: achieved by using strong rare earth magnets, innovative motor design, and top quality mosfets used.
Kit Name |
|

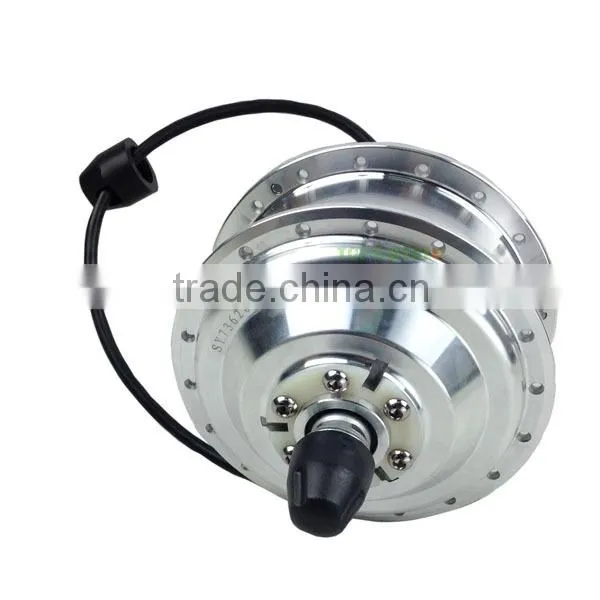

Motor |
250W brushless geared hub motor |
front or rear wheel applied, diameter 100mm for front and 135mm for rear, disc brake /V brake applied | |
Rim and spokes |
Double wall Aluminum Alloy rim, with 12g/13g stainless steel spokes |
Throttle |
Twist or thumb throttle for option, with classical or waterproof cables |

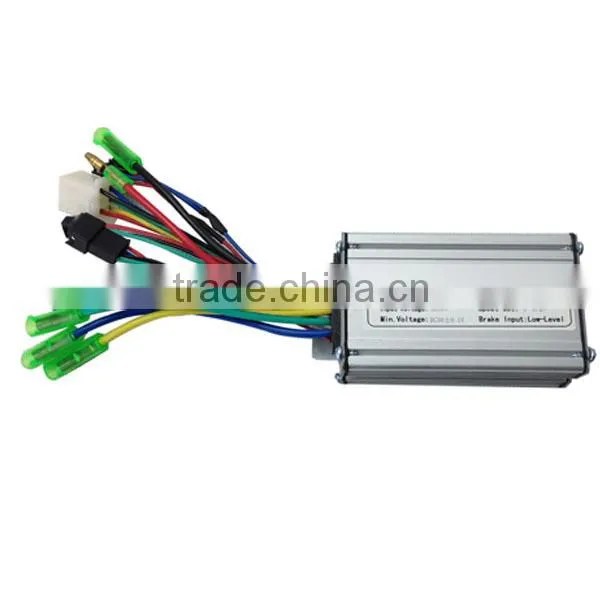

Controller |
36V, 6mosfet/ 9mosfet/12mosfet available, and hall optional |
Wheel |
Hand-built motor wheel, 16’’20’’24’’26’’700C28’’ available |

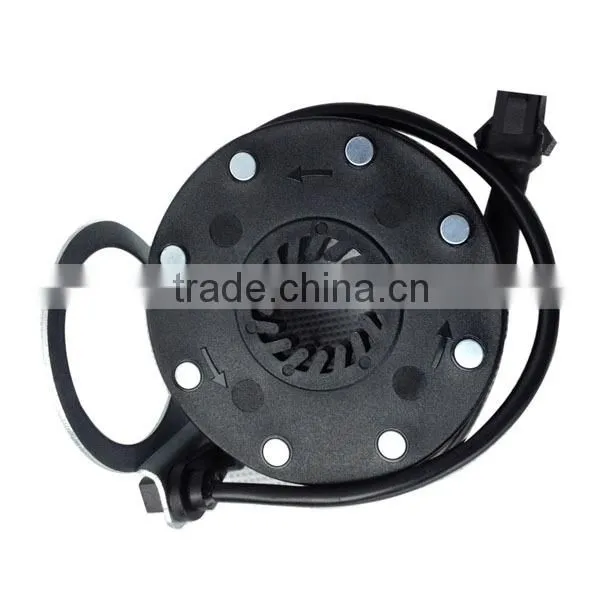

PAS |
1:1 intelligent pedal assistant system.8pcs/12pcs strong magnets |
Battery |
Lead acid battery, 10ah/12ah |
Rack carrier battery, 7ah--15ah available | |
Seat post battery/tube battery/frog battery, 8ah--10ah available | |
Brake levers |
Aluminum alloy, in black color |
Charger |
110~240V, AC 50~60HZ, 2A |

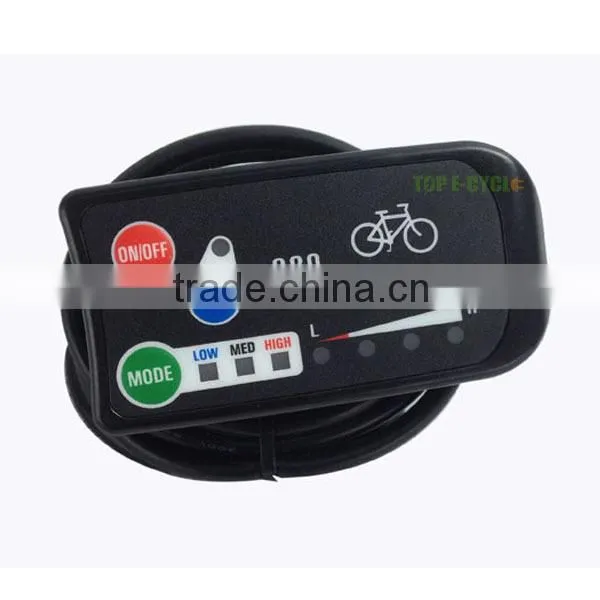

Display |
LED/LCD display, with classical/waterproof cables |
Accessories |
Separate motor line, ZIP ties, protection pipes, screws, controller case/bag |
N.W./G.W. |
12kg/15kg |
Packing List
NO. |
Part Name |
QTY |
1 |
Hand-built motor wheel(spokes rim,motor) |
1 SET |
2 |
Battery&Charger(optional part) |
1 SET |
3 |
Controller&Controller case/bag |
1 PC |
4 |
Display |
1 PC |
5 |
Brake levers |
1 PAIR |
6 |
Throttle&grips |
Optional |
7 |
PAS |
1 SET |
8 |
ZIP ties, Screws,Protection pipe |
1SET |
Shipping: Sample by air, Quantity order by sea;
Dimension&Transport Information:
Wheel size Dimenstion(cm) CTN Cube Metric Q'ty20'' FCL Q'ty40''FCL
16''20'' 65*65*20 0.0845 290 600
24--28'' 80*65*20 0.104 270 560

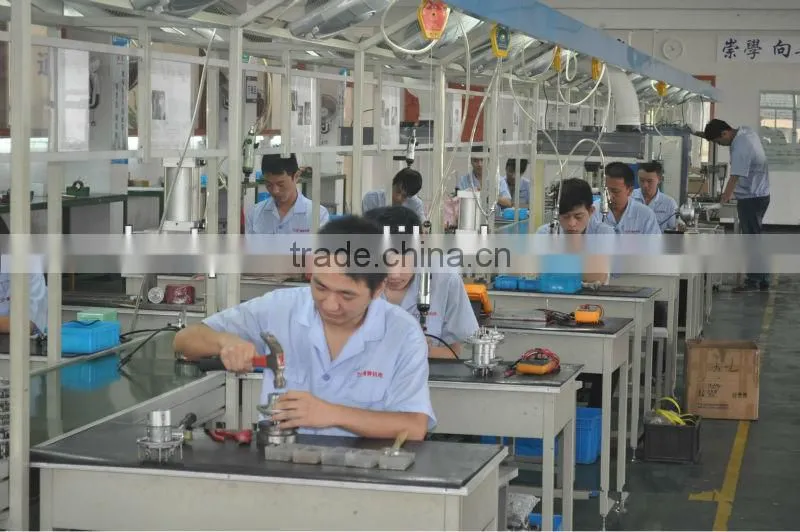

Our company is changing the daily commute by providing eco-friendly alternative transportation that is cleaner and cheaper to operate, we are Specializing in electric bikes, electric bicycle conversion kit and other accessory. We provide most cost effective choices in electric bicycle products making high-quality light electric vehicles affordable and available to everyone.
We offers our own products under various brand names and provides OEM services to some of the world’s most elite cycling and LEV manufacturing companies. Welcome your inquiry.
Q: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q: How long does it take to recharge the battery?
A: usually it takes 4—6 hours.
Q: Can the bicycle be ridden with just pedal power?
A: Yes. The choice is yours - battery power, pedal power or a combination of both.
Q: Does the electric bicycle waterproof?
A: Yes. You can ride our electric bikes in the light rain without worrying about
damaging the electric components.
Q: Could you supply OEM service?
A: MOQ 50 SETS
And more queations please click here:FAQ
