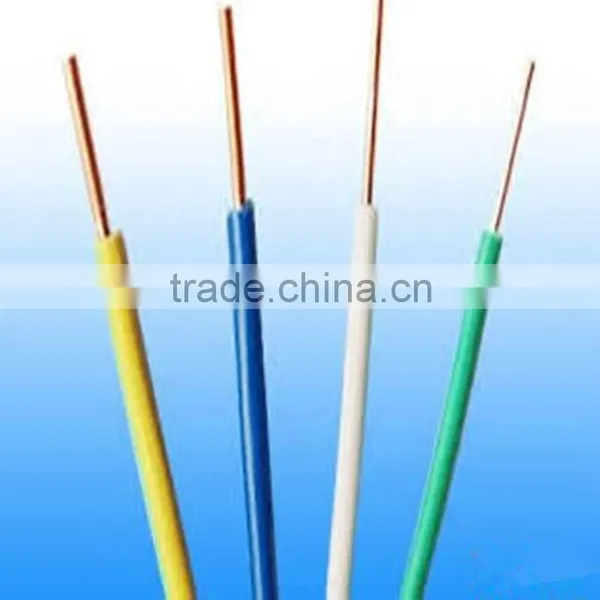

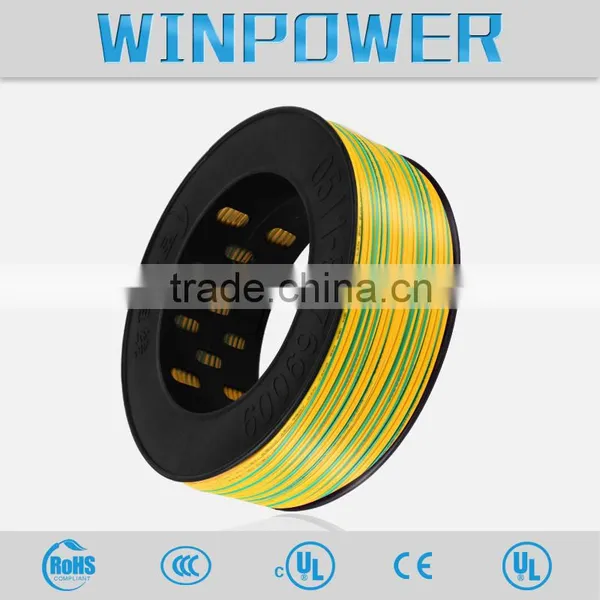

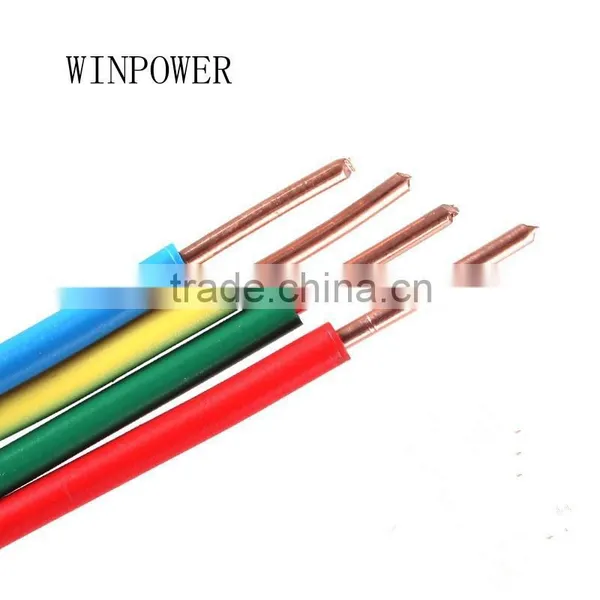

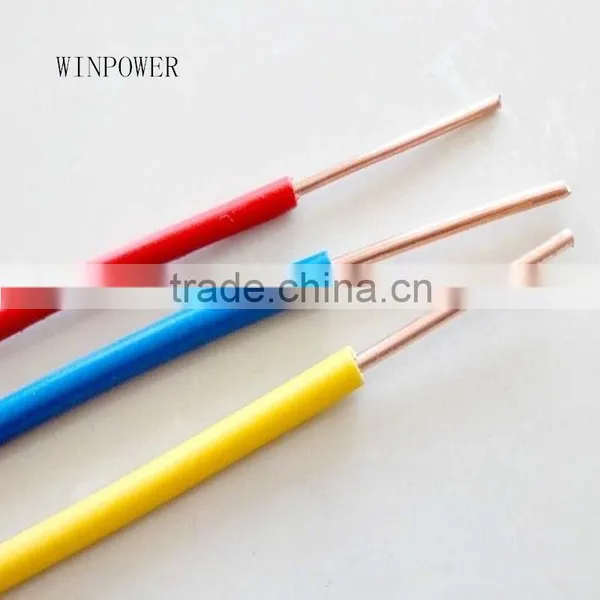

BVR 450V/750V 35mm pure copper home wire
Rated temperature: 70 centigrade
Rated voltage:450/750V
Referencestandard: JB8734.2-1998
Conductor: stranded bare copper
Insulation :PVC comply with RoHS environmental standard
Flame test: Pass GB 12666.2
Uniform insulation thickness to ensure easy stripping and cutting
Generally it is applied into electrical equipment wires
CABLE CONSTRUCTION:
CONDUCTOR |
INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) |
|||
|
AWG |
CONSTRUCTION (No./mm) |
DIA.(mm) |
THICKNESS (mm) |
O.D. (mm) |
||
2.5 |
19/0.41 |
2.05 |
0.8 |
3.8 |
7.41 |
2500 |
4.0 |
56/0.3 |
2.59 |
0.8 |
4.35 |
4.61 |
2500 |
6.0 |
84/0.3 |
3.18 |
0.8 |
5.1 |
3.08 |
2500 |
10 |
84/0.4 |
4.6 |
1.0 |
6.8 |
1.83 |
2500 |
16 |
133/0.4 |
5.7 |
1.0 |
7.8 |
1.15 |
2500 |
25 |
196/0.4 |
6.95 |
1.2 |
9.8 |
0.727 |
2500 |
35 |
175/0.5 |
8.2 |
1.2 |
10.7 |
0.524 |
2500 |
50 |
396/0.4 |
10.05 |
1.4 |
13.1 |
0.387 |
2500 |
70 |
360/0.5 |
12.5 |
1.4 |
15.7 |
0.268 |
2500 |
