Professionally Cap Welding Machine AirFilter Production Line 2KW 8pcs / min

Professionally Cap Welding Machine Aif Filter Production Line 2KW 8pcs / min

Specification

    1 Production Capacity: 8pcs / min
    2 Work piece diameter:  50 ~  85mm
    3  Work piece height :65-170mm
    4 heating power: 2kw
    5 Working pressure: 0.6MPa
    6 supply voltage: 220V/50Hz
    7 Dimension: 740 × 800 × 1700mm (L × W × H)

Feature

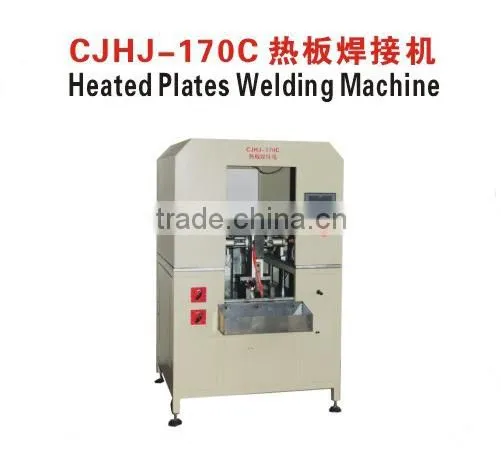

   1 This machine is designed to melt the surface of plastic end caps and then shortly embed the paper         elements by the heated plates, so that the components could be weld together quickly and      strongly without any adhesive.
 2. This machine is easy operated, but with excellent jointing quality.

 Applications

    This machine is used to weld paper element and plastic end caps of the auto oil and fuel filters.
