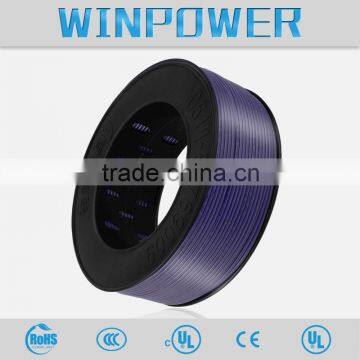

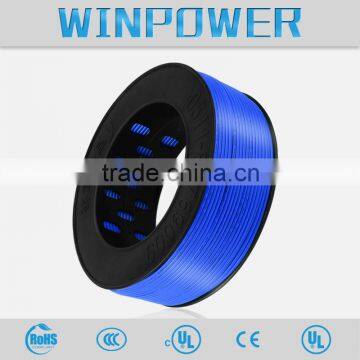

BV Copper Electrical House Wiring 25mm2
BV copper electrical house wiring 25mm2
Rated temperature:70 centigradee
Rated Voltage:450V/750V
Reference standards: JB8734.2-1998
Stranded tinned copper conductor 2.5-70mm2
PVC insulation ,RoHS compliant
Pass GB 12666.2 flame test
Unifom insulation thickness ,to make easy stripping and cutting
Generally it applied into internal wire
CONDUCTOR | INSULATION |
MAX.COND. RESISTANCE (Ω/km,20°C,DC) |
DIELECTRIC STRENGTH (VAC,1min) | |||
AWG |
CONSTRUCTION (No./mm) |
DIA.(mm) |
THICKNESS (mm) |
O.D. (mm) | ||
2.5 | 19/0.41 | 2.05 | 0.8 | 3.8 | 7.41 | 2500 |
4.0 | 56/0.3 | 2.59 | 0.8 | 4.35 | 4.61 | 2500 |
6.0 | 84/0.3 | 3.18 | 0.8 | 5.1 | 3.08 | 2500 |
10 | 84/0.4 | 4.6 | 1.0 | 6.8 | 1.83 | 2500 |
16 | 133/0.4 | 5.7 | 1.0 | 7.8 | 1.15 | 2500 |
25 | 196/0.4 | 6.95 | 1.2 | 9.8 | 0.727 | 2500 |
35 | 175/0.5 | 8.2 | 1.2 | 10.7 | 0.524 | 2500 |
50 | 396/0.4 | 10.05 | 1.4 | 13.1 | 0.387 | 2500 |
70 | 360/0.5 | 12.5 | 1.4 | 15.7 | 0.268 | 2500 |
