Specifications
electric bike kit:1.Motor:Brushless hub motor
2.Display:LCD/LED
3.Battery:tube battery
4.Easy to install
This electric bike kit is for riders who want a greater efficiency, stealth and the lighter weight of a
geared hub motor with battery pack. The geared motor is for lighter applications and warranted for 1
year. Geared motors are lightweight, compact and efficient, allowing for greater range per charge
when compared with direct-drive motors of equal power. Geared motors are slightly more audible
due to the internal friction of the gears.
This electric bike kit is designed for convenience, performance, and reliability.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Electric bike Kit:
Top Speed: 25-32KM/H
Range: 25--50KM (depends on battery capacity and pedal assisted)
Charge Time: 4--8 hrs (depends on battery capacity/size (AH) and charger output)
Efficiency: 80%
Stealth Factor: High
-------------------------------------------------------------------------------------------------------------------------------------------
Motor:
Brand: Optional
Type: Front or rear wheel geared (brushless, disc brake compatible)
Power: 36V250W-350W
Weight: 3--4kg
Warranty: 1 Year (36 volt use ONLY & 200lb rider weight limit)
-------------------------------------------------------------------------------------------------------------------------------------------

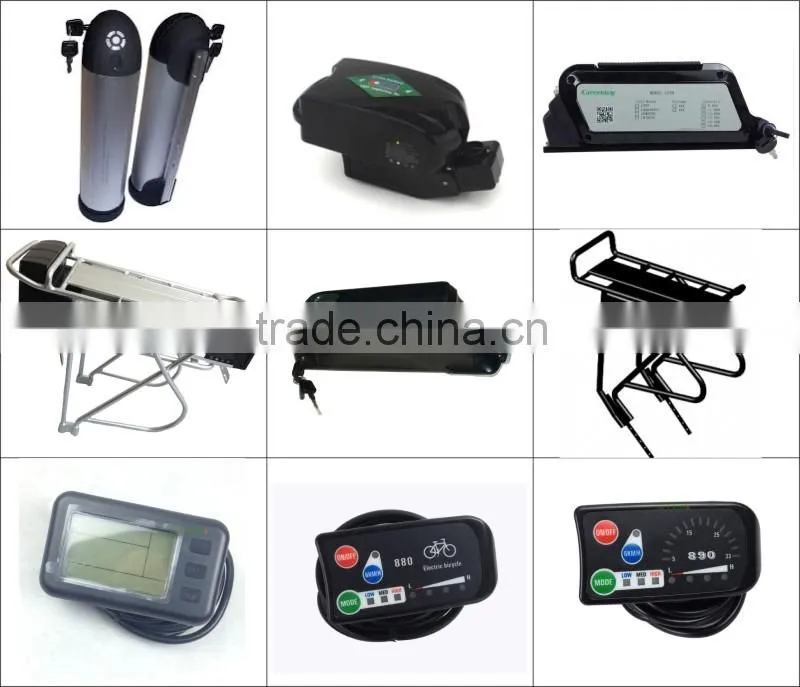

Battery &charger:
Battery cells:--Chinese battery cells: Headway/Greenway 2000/2200mAh capacity
--Samsung battery cells: 2600/2800/2900mAh capacity
Combination mode: 5P10S or 4P10S
Chemical: LiMn2O4/LiFePO4
Charging current: 2A
-------------------------------------------------------------------------------------------------------------------------------------------

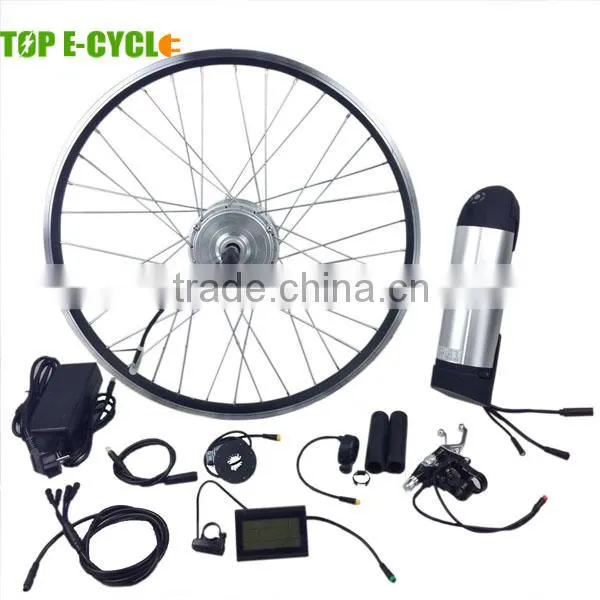

Includes: Every electric bike kit comes with all of the parts you'll need for your conversion.
1 x hand-built wheel w/ disc-brake compatible hub motor

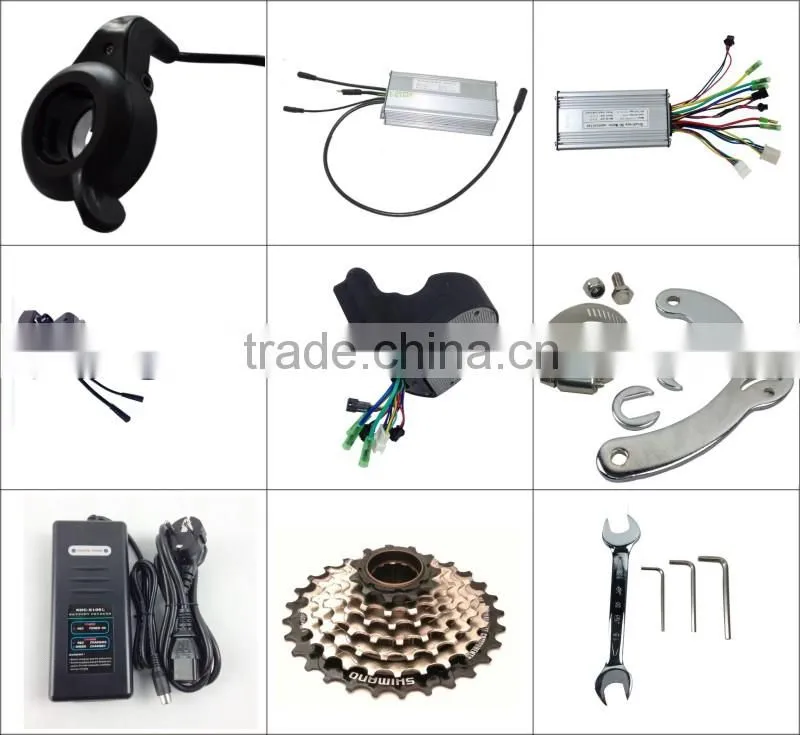

1 x 36V compatible brushless controller

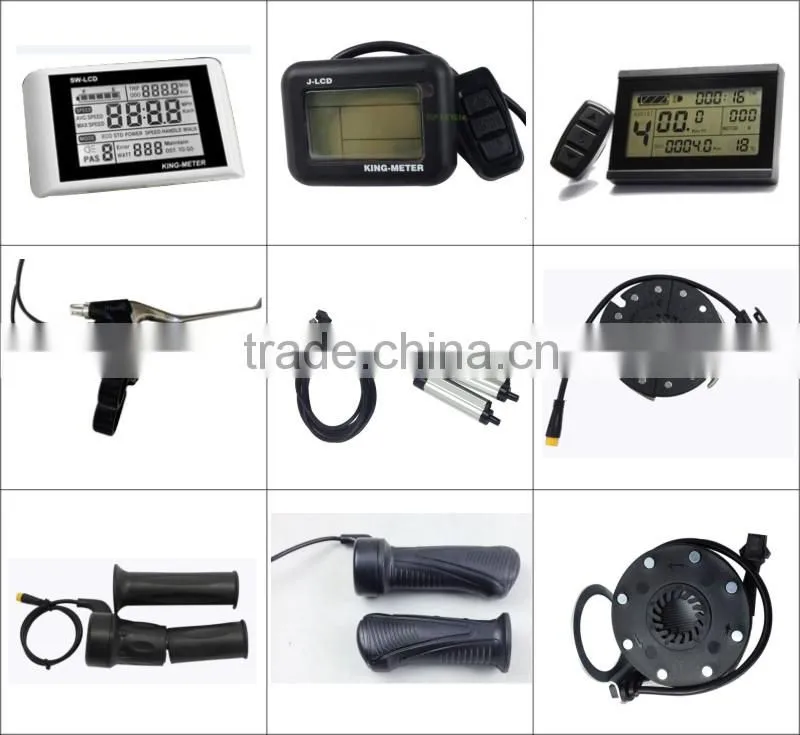

1 x LCD dashboard with on/off, battery indicator & 5-level top speed control or 1* 3-levels LED display
1 x Throttles (1 Thumb & 1 Split-Twist)
2 x E-Brake handles (left & right)
1 x Motor cable
1 x Accessory cable
1 x Battery&charger(if it's the rear pack battery, include rack, too)
1 x 7-Speed Shimano Freewheel (rears only)
1 x Owner's manual w/ installation guide
***Zip Ties, protcet line and allen wrench in every kit!
Optional part: Free wheel, Torque arm.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Warranty &Service
For all the parts in the kit, we offer one year warranty.
customization service is available, if the quantity you need is more than 100Sets, we can put your logo on the package and some parts of the kit.
we are manufacture of electric bicycle, if you have any good idea and need our help to make it come true, please ask me.
v Loading Port: ShangHai or NingBo, China
v Sample Delivery: 7—20days, depend on your requirement
v Mass Production Delivery: 20 -40days after sample confirmation
v For a sample deliver through air
v Pay by T/T, LC
v Customers can also choose paypal for small quantity or sample, and do not refuse Paypal fee when you
choose it
v Usually 30% deposit and balance should be paid before shippmen
