Specifications
Auto cable FLRYW-A 1.5MM2 PVC internal wiringFlame test: DIN 72551-5/1991 3.7.1
PVC insulation,RoHS compliant
Auto cable FLRYW-A 1.5MM2 PVC internal wiring
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification: FLRYK-A cold-resistant automobile wire 1.5MM2
Conductor : tinned or bare copper
Insulation: PVC
Reference Standard: DIN 72551-5/1991 3.7.1
Temperature: 105 centigrade
Flame test:DIN 72551-5/1991 flame test
Application: be used as internal wire in the automobile
Conductor | insulation | Max .COND. Resistance
| Dielectric Strength ( VAC ,1 min) | |||
Cross Section (mm2) | Construction (No./mm) | DIA(mm) | Thickness (mm) | O.D. (mm) | ||
0.22 | 7/0.21 | 0.63 | 0.26 | 1.15 | 86.5 | 1000 |
0.35 | 7/0.26 | 0.78 | 0.24 | 1.25 | 54.5 | 1000 |
0.5 | 19/0.19 | 0.95 | 0.28 | 1.50 | 38.2 | 1000 |
0.75 | 19/0.23 | 1.15 | 0.33 | 1.80 | 25.4 | 1000 |
1.0 | 19/0.26 | 1.30 | 0.35 | 2.00 | 19.1 | 1000 |
1.5 | 19/0.32 | 1.60 | 0.35 | 2.30 | 13.0 | 1000 |
2.5 | 19/0.41 | 2.05 | 0.43 | 2.90 | 7.8 | 1000 |
Packing: to be packed in PE film and carton
Delivery:3- 15 days after received the down payment
Payment: T/T ( 30% down payment ,and pay off after receiving the duplicate of B/L )
1. Sample Available
2. OEM are offered
3. Buyers' label can be made
4. Fast delivery
5. Professional technology support

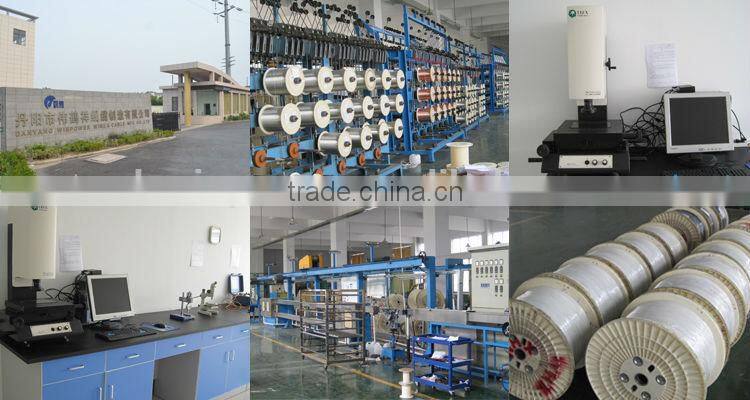

6.Welcome to visit our factory .
7. Convenient transportation path to Danyang
a.Take flight to Shanghai airport .About one hour by Harmony train from Shanghai Station to Danyang station.
b.Take flight to Changzhou airport.About 20 minutes by Harmony train from Changzhou station to Danyang station.
