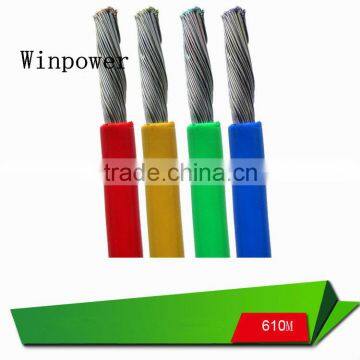

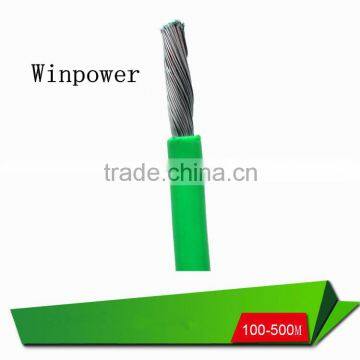

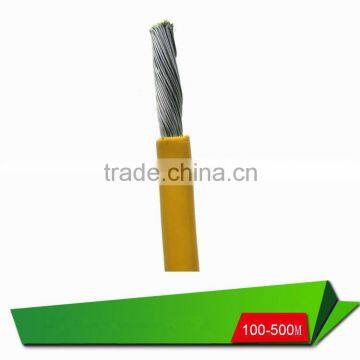

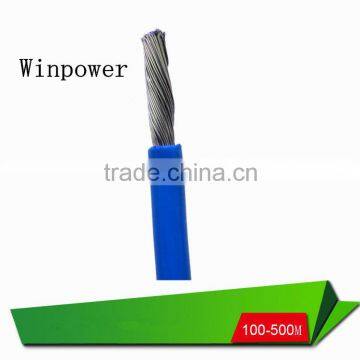

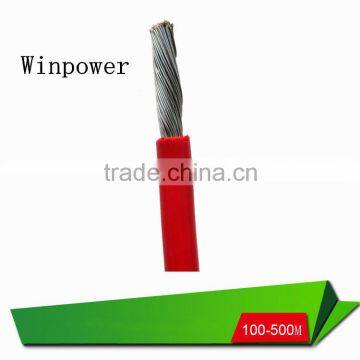

PVC insulated copper conductor FLRY-B electrical cable wire
All our wires and cables are made of 99.99% pure oxygen free copper and high quality PVC which comply with the European Union RoHS environmental protection instruction.
Specification: FLRY-B automobile wire 0.5MM2
Conductor : tinned copper
Insulation: PVC
Reference Standard: DIN 72551-5/1991
Temperature: 80 centigrade
Flame test:DIN 72551-5/1991 3.7.1flame test
Application: be used as internal wire in the automobile
Conductor | insulation | Max .COND. Resistance
| Dielectric Strength ( VAC ,1 min) | |||
Cross Section (mm2) | Construction (No./mm) | DIA(mm) | Thickness (mm) | O.D. (mm) | ||
0.35 | 12/0.20 | 0.80 | 0.25 | 1.30 | 54.5 | 1000 |
0.5 | 16/0.20 | 0.92 | 0.29 | 1.50 | 38.2 | 1000 |
0.75 | 24/0.20 | 1.13 | 0.34 | 1.80 | 25.4 | 1000 |
1.0 | 32/0.20 | 1.31 | 0.35 | 2.00 | 19.1 | 1000 |
1.5 | 30/0.25 | 1.58 | 0.36 | 2.30 | 13.0 | 1000 |
2.5 | 50/0.25 | 2.04 | 0.43 | 2.90 | 7.8 | 1000 |
4.0 | 56/0.30 | 2.59 | 0.51 | 3.60 | 4.8 | 1000 |
6.0 | 84/0.30 | 3.17 | 0.52 | 4.20 | 3.2 | 1000 |
