Specifications

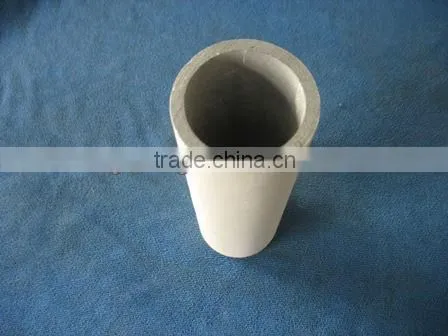

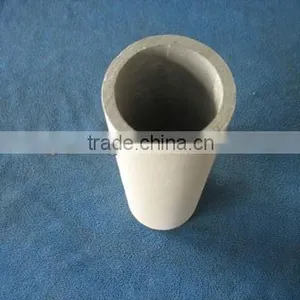

porous ceramic filter tube for mill water treatment and paper and cardboard processing water treatment
porous ceramic filter tube for mill water treatment and paper and cardboard processing water treatment
1:General Material Description:
Corundum membrane filter elements are made from a porous support body of corundum ceramically bonded with a fine filtering membrane.The combination of support body and membrane guarantees a low differential pressure at high filtration fineness and an excellent cleaning and backwashable performance.
2:Physical Properties:
Corundum membrane filter element
|
Unit |
|
Membrane material |
|
Al2O3 |
Support material |
|
corundum |
Filtration fineness |
μm |
0.5-1 |
Porosity of membrane |
% |
30-45 |
Membrane pore size |
μm |
0.1-10 |
Support material density |
g/cm³ |
1.8 |
Bending strength |
Mpa |
20-80 |
Max. temperature resistance1 |
oC |
800 |
Operating pressure |
Mpa |
-0.1-8 |
Expansion coefficient(25-800 oC) |
10-6/K |
8.5 |
1Depending on operating conditions |
|
|
3:Chemical Resistance:
It’s resistant against most acids, saline solutions and organic solvents, liquid or gas covering the complete acid,neutral and alkali range up to pH 11,exept hydrofluoric acid and fully desalted water.
(As end use conditions can vary,it is the users’ responsibility to verify compatibility with their specific use conditions.)
4:Standard Dimensions
|
Type
|
Item No.
|
Do/Di (mm) |
Length (mm) |
Area (m²) |
Weight (kg) |
Flanged Candle |
DQCRMFC-1 |
60/40 |
1000 |
0.18 |
3.0 |
Flanged Candle |
DQCRMFC-2 |
110/80 |
1000 |
0.34 |
8.3 |
Flanged Candle |
DQCRMFC-3 |
60/40 |
500 |
0.09 |
1.6 |
Flanged Candle |
DQCRMFC-4 |
110/80 |
500 |
0.17 |
4.3 |
Cylinder |
DQCRMCL-1 |
60/40 |
1000 |
0.18 |
2.8 |
Cylinder |
DQCRMCL-2 |
110/80 |
1000 |
0.34 |
8.0 |
Cylinder |
DQCRMFC-3 |
60/40 |
500 |
0.09 |
1.4 |
Cylinder |
DQCRMFC-4 |
110/80 |
500 |
0.17 |
4.0 |
Plate |
DQCRMPL |
< 500×500×30mm ; < Ø400×30mm |
|||
Special dimensions and special products on request. | |||||
5:Applications:
a:Chemical Industry Process water,acid and lye filtration,catalytic recovery
b:Oil/Water Separation Compressor condensate filtration,degreasing baths,washing water,
coolant lubricants
c:Waste Water Biomass separation,COD reduction
d:Food and Beverage Industry Various applications for clarification
Note:As end use conditions can vary,it is the users’ responsibility to verify compatibility with their specific use conditions.
