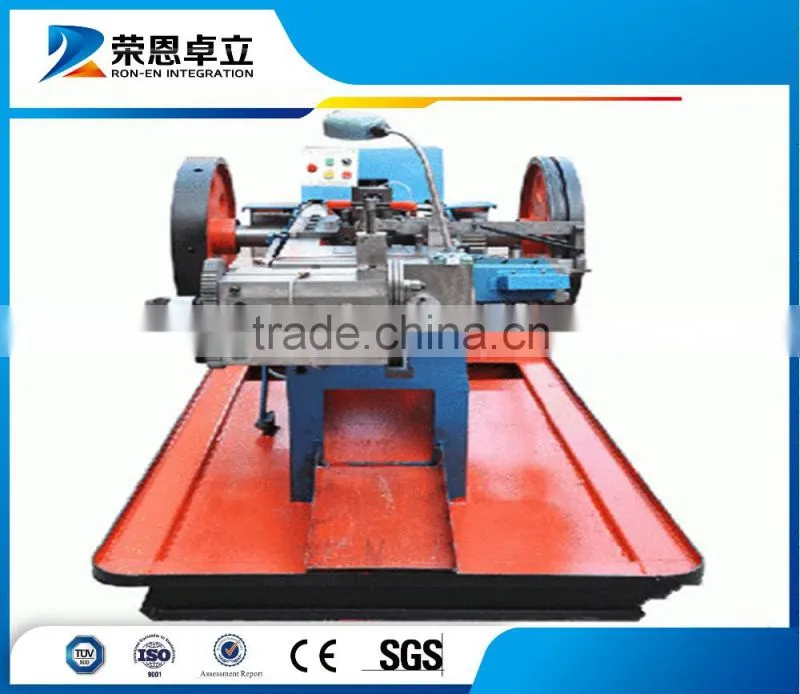

Z12 Screw Making Machine
This series machines are used to produce bolts, screws, and so on. The raw material is steel wire or steel rod. The material is straighten when feeding, after cut-off, the billet is fed into a die, then heading by two punches.
| Type No | Product length | Product diameter | Stroke | Productivity(pcs/min) | Motor power | Weight | Out of size |
| Z12-4 | 3-55 | 2-5 | 80 | 100 | 2.2 | 1200 | 1800*1000*1400 |
| Z12-6 | 5-100 | 4-8 | 120 | 90 | 4 | 4000 | 2500*1500*1300 |
| Z12-8 | 10-150 | 6-10 | 160 | 80 | 5.5 | 4500 | 3300*1700*1600 |
| Z12-10 | 15-160 | 8-12 | 190 | 60 | 7.5 | 6500 | 3600*1800*1600 |
| Z12-12 | 20-60 | 8-16 | 220 | 50 | 15 | 12000 | 3800*2000*1700 |
| Z12-16 | 25-250 | 10-18 | 270 | 45 | 18.5 | 15000 | 4200*2600*1800 |
| Z12-20 | 30-250 | 12-22 | 300 | 40 | 22 | 22000 | 5000*2800*1900 |
| Z12-20 | 30-300 | 12-22 | 380 | 40 | 30 | 28000 | 5200*2800*1950 |
| Z12-24 | 35-300 | 12-26 | 380 | 36 | 37 | 40000 | 5400*3000*2000 |
| Z12-30 | 50-300 | 16-32 | 380 | 36 | 55 | 65000 | 5600*3100*2200 |

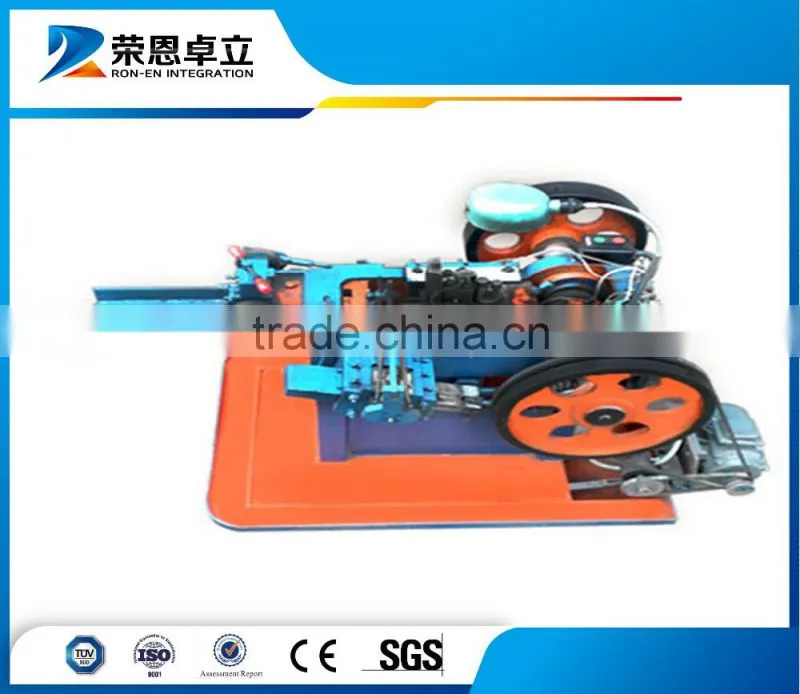

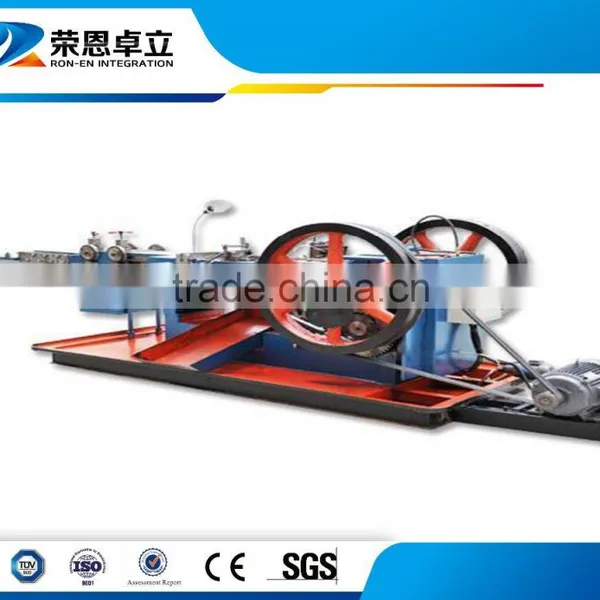

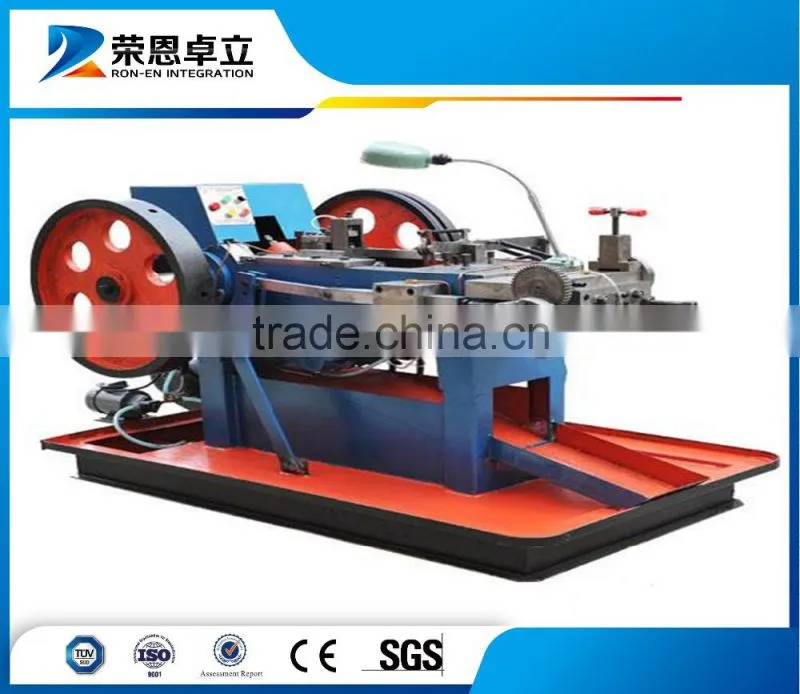

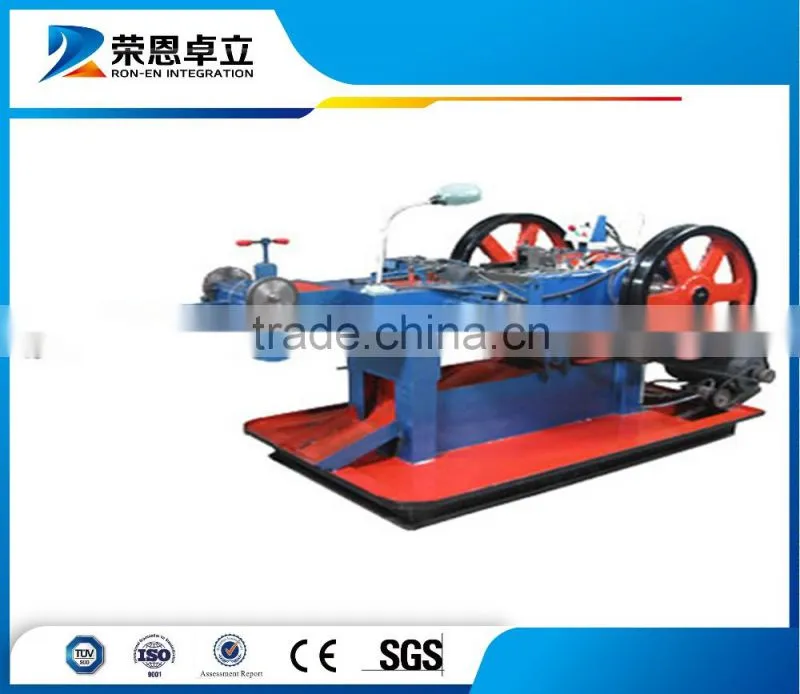

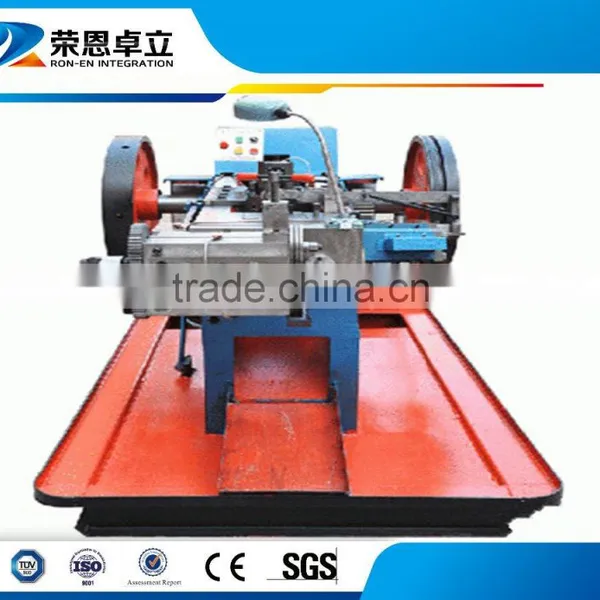

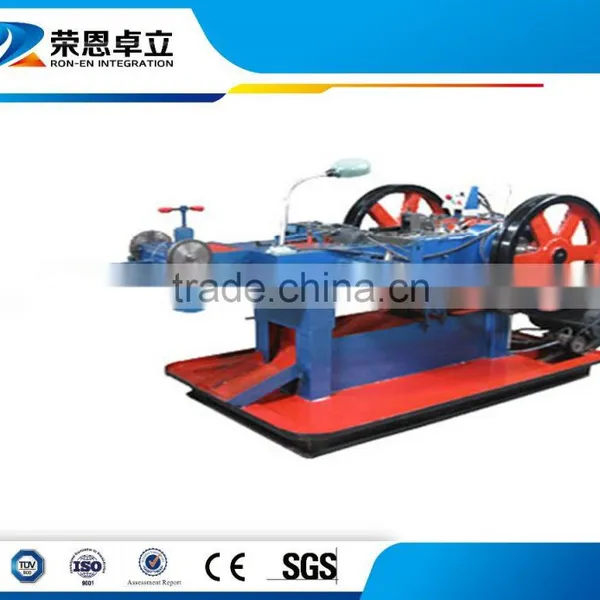

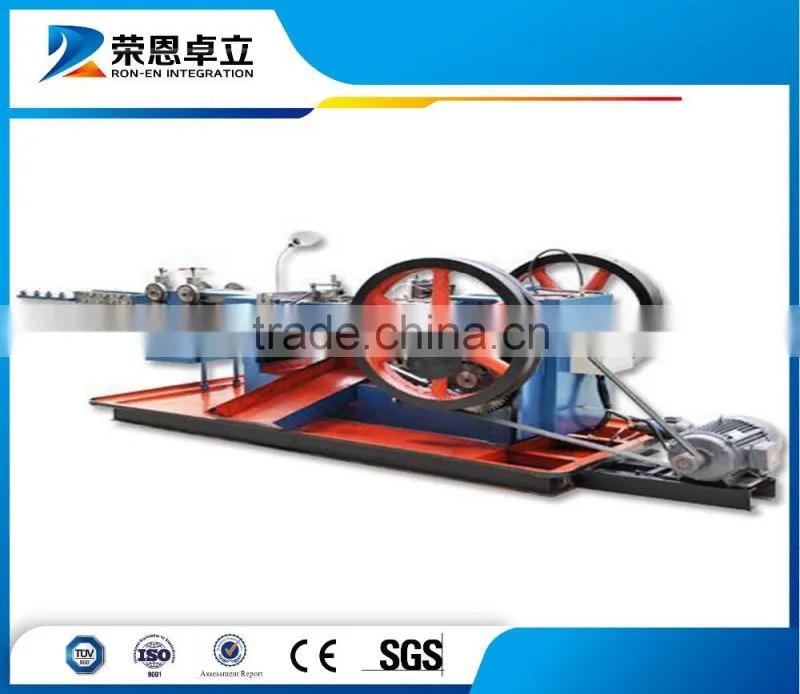

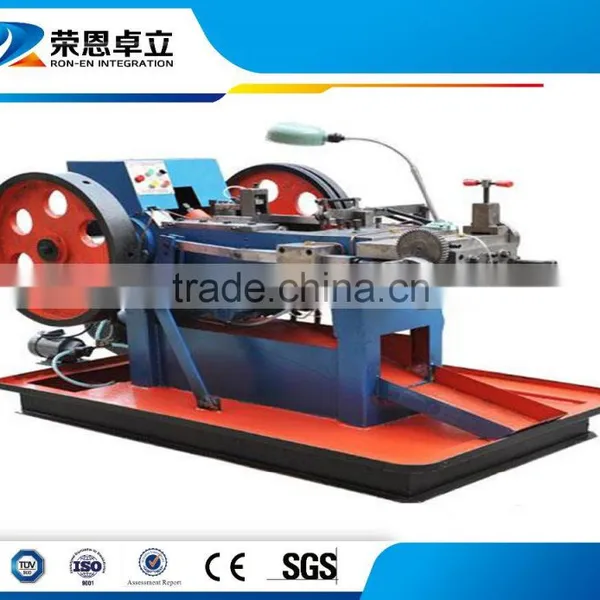

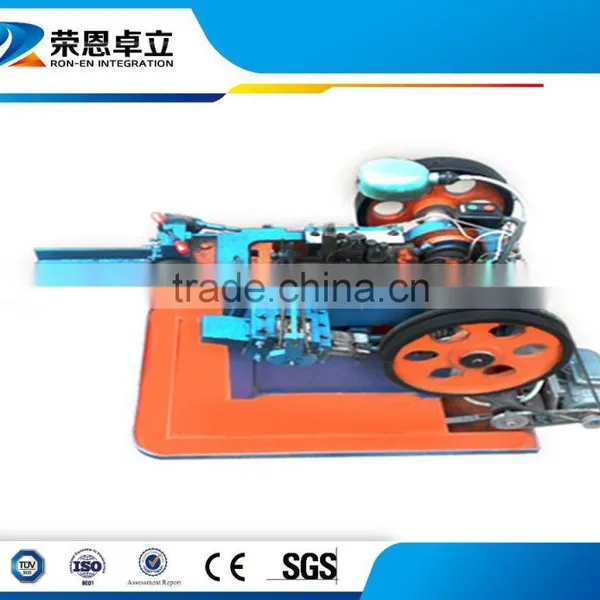

Pictures show
Packaging:
Export standard wooden case for tightly and elegant packing
Fumigation-free package helps the smooth customs clearance.
Shipping:
The machine can be shipped by LCL, we will send machine to port warehouse speedily and safely.
For Big machine will be shipped by FCL, containers will be sent to our factory for loading.
All the machine parts will be tighten and fastened well by wire rope and wooden blocks.
The well-cooperated experienced shipping forwarder will take care all the shipping as well as custom clearance.
Before shipping we will inspect the machine and test run the machine in our factory.
1 Professional mechanical background sales for better undestanding customer's need
2 Experienced in China machine industry for supplying comprehensive machines and equipments
3 Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer.
4 Lifelong service for spares, ware parts, technical supporting, etc
