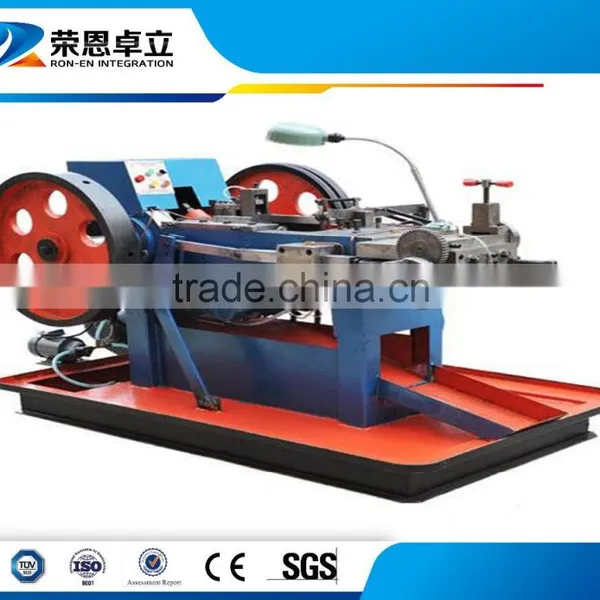

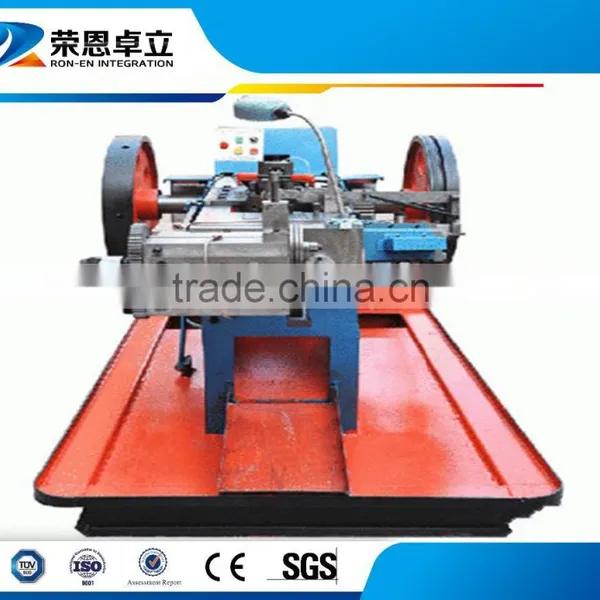

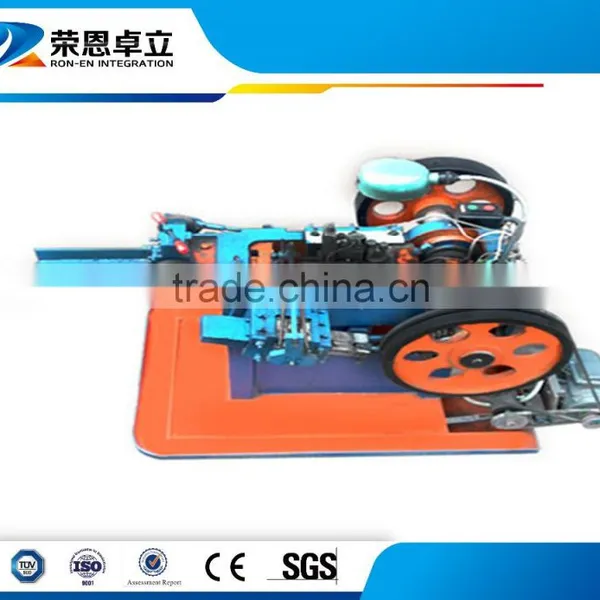

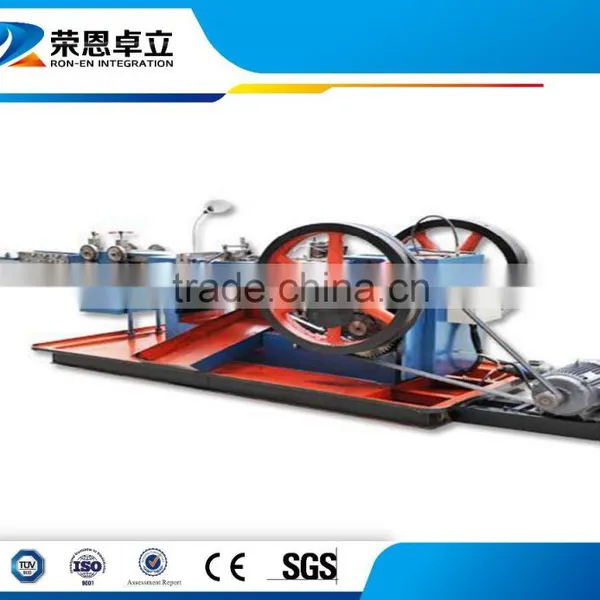

bolts head forging press

FOB Price

USD $5,000 - $200,000 / Set

1 Set(Min.Order)

Supply Ability 45 Set / Sets per Month
Port Tianjin
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Place of Origin:	Hebei, China	Brand Name:	RN
Model Number:	Z12-10	Voltage:	220V/380V/440V	Power(W):	7.5
Dimension(LWH):	360018001600	Weight:	6500	Certification:	ISO
Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Welcome to visit our company! Bolts making machine.

The composition of the production line is cold heading machine head forming machine( edge-trimming machine) and thread rolling machine. Our company is professional to manufacture cold heading machine head forming machine( edge-trimming machine) and thread rolling machine. The technology of our machine is mature. The stability of our machine is good and the quality of our products is high. The type of our machine is complete. Our machine can product bolt nut rivet pin and so on.

Our machine can manufacture all kinds of heads products and the diameter of bars is 4-30mm.

Advantage

High automation	2 machines are operated by 1 person only.
High utilization	The entire brass rod(Φ15- Φ30) can be put into the machine.
High productivity	The production rate is 30-100 pcs/min.(depend on the product's size). It is 5 times higher than the normal machines.
High passing rate	>98%(the traditional one has 90% only)
Safety	High safety performance, no work injuries.
Low production cost	(1)Gas and electric motor are used as fire heating. (2)Medium frequency furnace(60-100) and electric motor are used as intermediate frequency heating. (3)30% of the electric power can be saved.
Customization	Customization is available.
Trimming	Products are without trimming (no unwanted material on the product).

Application Field

For the production parts: copper core, flare nut, valves, plumbing fittings, brass nuts, screw nuts, valve element, connector, single connector, internal thread and so on.

The technical parameter

1.Technical parameter of nuts cold heading machine (6 stations)

Model	11B	14B	17B	19B	24B	28B	33B
Station no.	6	6	6	6	6	6	6
Forging force ton	60	95	120	150	250	300	400
Max.cutting diameter mm	11	16	18	20	24	27	32
Max.cutting length mm	6-28	11-35	13-40	15-50	20-50	21-55	25-65
Max.speed pcs/min	200	200	180	170	120	120	80
Main slide stroke mm	50	70	80	100	110	110	200
Die pitch mm	50	60	70	80	100	100	100
Main motor hp	11	20	30	50	75	75	100
Air press kg	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Specification	M4-M6	M8-M10	M8-M10	M10-M12	M12-M16	M12-M18	M16-M22
Lubrication	1	1	2	2	2	2	3
Weight ton	6	8.5	10	17	23	25	38
Machine size m	2.31.551.2	2.82.051.3	3.672.01.4	42.451.45	531.7	531.7	63.21.8

2.Technical parameter of head forming machine (edge-trimming machine)

3.Threa rolling machine

Type No	Thread rolling	Productivety(pc/min)	Motor power	Machine weight(kg)	Out form size
Z25-4	M2-M4	110	1.1kw	300	11007001000
Z25-6	M4-M6	90	1.5kw	400	13008001100
Z25-8	M6-M8	60	3kw	600	150011001400
Z25-10	M6-M10	55	4kw	800	160011001450
Z25-12	M6-M12	50	5.5kw	900	200012001500
Z25-16	M8-M16	45	7.5kw	1500	250010001500
Z25-20	M14-M20	35	11kw	3500	300013001800
Z25-24	M14-M27	35	15kw	5000	350014001800

The picture of the product line
1.The production line ( the cold heading machine is 2 station): cold heading machine + head forming machine(edge-trimming machine)+thread rolling machine.

Feeding → preliminary forming → head forming → the last forming → feeding → rolling thread

→

2.The production line(The cold heading machine is Multi-station cold heading machine) : cold heading machine + thread rolling machine

Feeding →forming(semifinished product) →feeding (thread rolling machine)→rolling thread →finished product.

→

Finished Products:

Configuration of cold heading machine

standard straightening mechanism	1 set
standard feeding mechanism	1 set
standard cutting mechanism	1 set
standard clamp mechanism	1 set
standard model device	1 set
standard punching device	1 set
standard lubrication system	1 set
standard flywheel shield	1 set
standard handing stools	1 set
standard wire rack	1 set
standard electrical cabinet	1 set
standard spare parts	1 set

Material and brand introduction

bed	QT500-8
main slider	QT500-8
crankshaft	42CrMoforging(high frequency processing)
master die	Cr12MoV forging
main link	ZG45
cutting block	Cr12MoV forging
all copper tile and copper tube	ZCuSn10Pb1
bearing	NSK
all electrical components	SIEMENS OR Schneider
pump	TaiWan WeiLing
main motor	Jiangsu World

Finished bolt performace grade

1. Low-carbon steel ----- cold heading machine ---bolt performance grade is 4.8 grade( tensile strength is 400MPa Yield Strength is 320MPa)

dium-carbon steel----cold heading machine---- bolt performance grade is 6.8 grade( tensile strength is 600MPa/ Yield Strength is 320MPa)---- Heat Treatment --- bolt performance grade is 8.8 grade

3.high-carbon steel ----cold heading machine----bolt performance grade is 8.8 grade ( tensile strength is 800MPa/ Yield Strength is 640MPa)----- Heat Treatment----- bolt performance grade is 10.9-12.9 grade( tensile strength is 1000MPa/1200MPa Yield Strength is 900MPa/1080MPa)

Shipping pictures:

FAQ

1.Q: How to sure the quality of our machine ?

A:Our technical of our machine is mature and the quality is examined in actual production

ur products passed the SGS, CE, ISO certifications.

2.Q: What after sales service we can provide

A: We warrant 12 months and provide technical services and technical staff training.

3.Q: Can you provide invitation letter for me if I want to visit your factory?

A: Sure, you can offer us your company information, visit people’s information, visit time, etc., and when we will submit them to our local government for the application.

After-Sales Service

1)Installation and commissioning

Machine to be installed and commissioned by our technicians.The seller will send our engineer to install the machine accordingly if the buyer need.The buyer have to pay the salary US$ 50-100 per day, and the air ticket, accommodation, eating and some related

fees should be your responsibility

2)Guarantee

Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts were broken caused by the product problem, seller will offer the parts by free. If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller

Contact:

Contact Us

Beijing Ron-En Machinery & Integration Co., Ltd.: Contact nameLaura zhang; Phone86-010-56927698; Address817, Bldg. 1, Floor 7, Bldg. 15, South Fangzhuang Road
