Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 100W With PFC Function Switching Power Supply

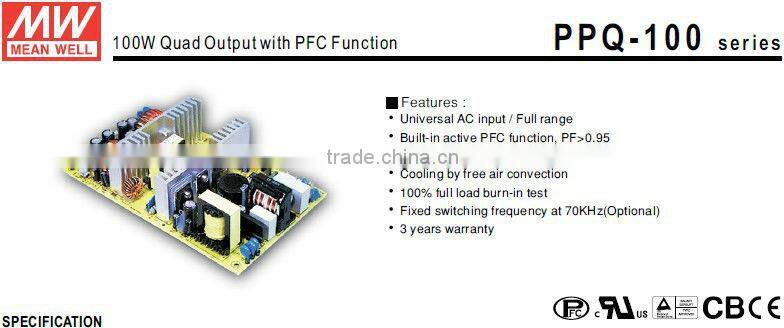

Meanwell 100W With PFC Function Switching Power Supply

Name: Meanwell 100W With PFC Function Switching Power Supply
Brand: Meanwell
SKU: 117431763
Availability: InStock

Meanwell 100W With PFC Function Switching Power Supply thumbnail-1

Meanwell 100W With PFC Function Switching Power Supply photo-1

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

PPQ-100C

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number PPQ-100C

Output Power Other, 101W

Output Type Quad

Input Voltage Other, 90 ~ 264VAC 127 ~370VDC

Output Voltage 5V 15V -15V -5V

Output Frequency 47~63Hz

Output Current 10A 2.6A 0.6A 0.6A

Specifications

MODEL		PPQ-100C
OUTPUT	OUTPUT NUMBER	CH1	CH2	CH3	CH4
	DC VOLTAGE	5V	15V	-15V	-5V
	RATED CURRENT	10A	2.6A	0.6A	0.6A
	CURRENT RANGE	2 ~ 15A	0.3~ 4A	0~1A	0~1A
	RATED POWER (max.)	101W
	RIPPLE & NOISE (max.) Note.2	100mVp-p	150mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ. RANGE	CH1: 4.75~5.5V
	VOLTAGE TOLERANCE Note.3	±3.0%	+10, -6%	±5.0%	±5.0%
	LINE REGULATION	±1.0%	±2.0%	±2.0%	±1.0%
	LOAD REGULATION	±2.0%	±6.0%	±2.0%	±2.0%
	SETUP, RISE TIME	800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load
	HOLD UP TIME(Typ.)	24ms/230VAC 24ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~370VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.95/230VAC PF>0.98/115VAC at full load
	EFFICIENCY (Typ.)	76%
	AC CURRENT (Typ.)	1.65A/115VAC 0.85A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A
	LEAKAGE CURRENT	<3.5mA /240VAC
PROTECTION	OVERLOAD	105% ~ 135% rated output power
		Protection type: Hiccup mode, recovers automatically after fault condition is removed.
	OVER VOLTAGE	CH1: 5.75~6.75VDC
		Protection type : Shut down o/p voltage, re-power on to recover

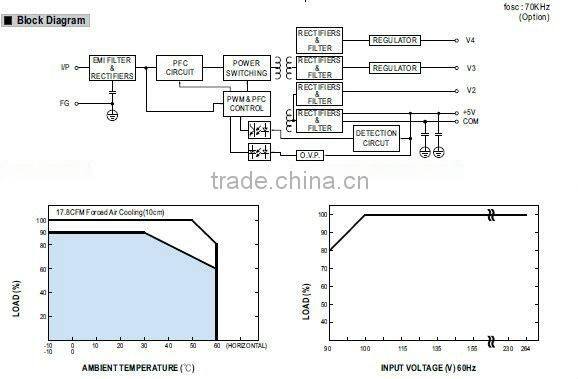

ENVIRONMENT	WORKING TEMP.	-10~+ 60°C (Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-20~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,11, light industry level, criteria A
OTHERS	MTBF	162.5K hrs min. MIL-HDBK-217F(25°C)

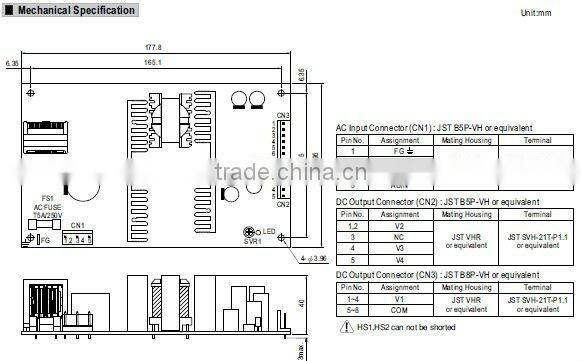

	DIMENSION	177.8107.9540mm (LWH)
	PACKING	0.62Kg; 24pcs/15.9Kg/1.34CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” 5. Heat Sink HS1,HS2 can not be shorted.
