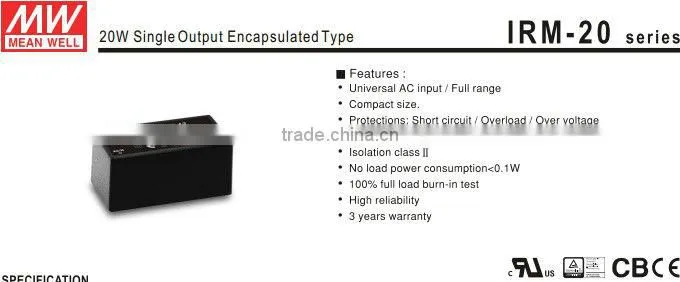

Help CenterMean Well 20w 5v Single Output Power Supply/20W Single Output Encapsulated Type
Related Products
-
Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated TypeUS$ 1 - 10MOQ: 1 Piece -
Meanwell 65W Industrial Switch Power Supply Ac/dc Universal Switching Power SupplyUS$ 1 - 10MOQ: 1 Piece
-
Meanwell Switching Power Supply 12v/60W Single Output Medical Type/12V Ac/dc Switching Power SupplyUS$ 1 - 10MOQ: 10 Pieces
-
Mean Well 45W 48V Single Output Power Supply/45W Power Supplies/45W Switching Power SuppliesUS$ 1 - 10MOQ: 10 Pieces
-
Meanwell Meanwell 15W 36V Single Output/ dc Switching Power Supply/15W 36V Switching Power Supply/PCB Power SupplyUS$ 1 - 10MOQ: 10 Pieces
MODEL |

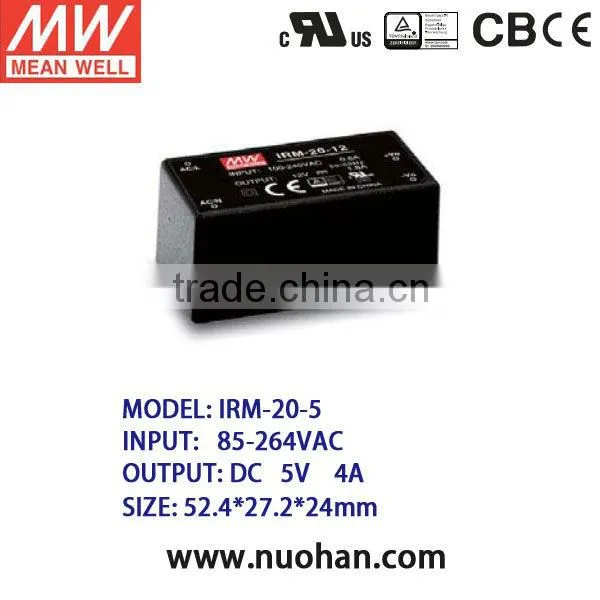

IRM-20-5 |
|
OUTPUT |
DC VOLTAGE |
5V |
RATED CURRENT |
4A |
|
CURRENT RANGE |
0 ~ 4A |
|
RATED POWER |
20W |
|
RIPPLE&NOISE (max.) |
200mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.5% |
|
LINE REGULATION |
±0.5% |
|
LOAD REGULATION |
±1% |
|
SETUP, RISE TIME |
1000ms, 20ms/230VAC 1000ms,20ms/115VAC at full load |
|
HOLD UP TIME (Typ. |
40ms/230VAC 8ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC 120 ~ 370VDC |
FREQUENCY RANGE |
47 ~ 440Hz |
|
EFFICIENCY (Typ.) |
79% |
|
AC CURRENT (Typ.) |
0.6A/115VAC 0.4A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 20A/115VAC 40A/230VAC
|
|
LEAKAGE CURRENT |
<0.75mA / 240VAC |
|
OVER LOAD |
115 ~ 160% rated output power |
|
|
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
OVER VOLTAGE |
5.75 ~6.75V |
|
Protection type :Shut off o/p voltage,clamping by zener diode | ||
ENVIRONMENT |
WORKING TEMP. |

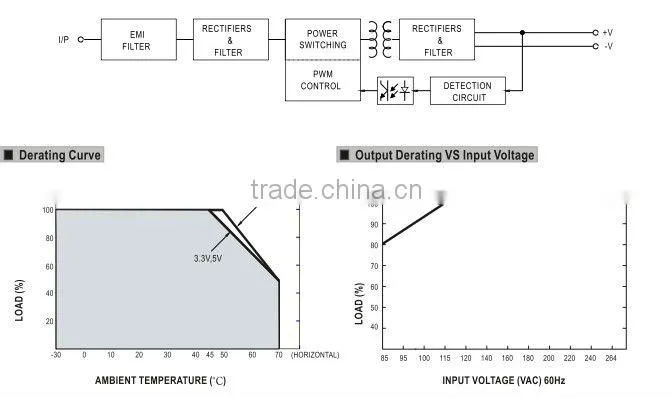

-30~+70°C (Refer to derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40~+85°C, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.03%/°C (0~50°C) |
|
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
|
SAFETY & EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024 heavy industry level(surge L-N:1KV), criteria A |
|
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH |
|
OTHERS |
MTBF |
970.3K hrs min. MIL-HDBK-217F (25 ) |
DIMENSION |
52.4*27.2*24mm (L*W*H) |
|
PACKING |
0.059Kg; 240pcs/.15.2Kg/0.97CUFT |
|
NOTE |
1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
|
|
