Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated Type

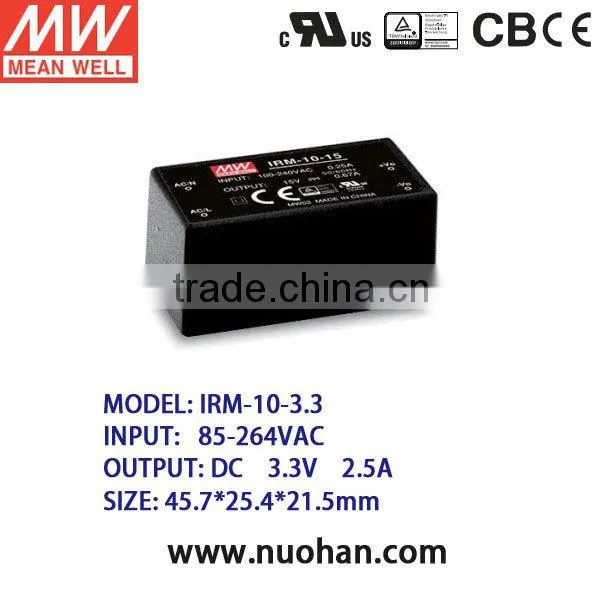

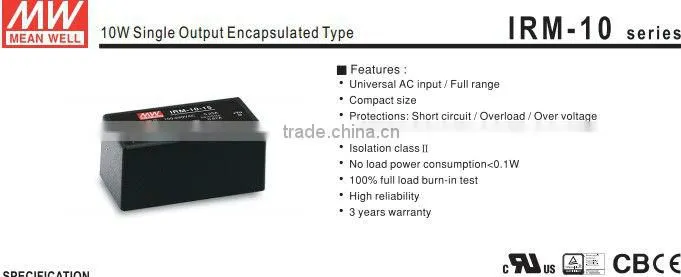

Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated Type

Name: Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated Type
Brand: Mean Well
SKU: 117431815
Availability: InStock

Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated Type thumbnail-1

Mean Well 10w 3.3v Single Output Power Supply/10W Single Output Encapsulated Type photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

IRM-10-3.3

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number IRM-10-3.3

Output Power Other, 8.25W

Output Type Single

Input Voltage Other, 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 3.3V

Output Frequency 47~63Hz

Output Current 2.5A

MODEL		IRM-10-3.3
OUTPUT	DC VOLTAGE	3.3V
	RATED CURRENT	2.5A
	CURRENT RANGE	0 ~.5A
	RATED POWER	8.25W
	RIPPLE&NOISE (max.)	200mVp-p
	VOLTAGE TOLERANCE Note.3	±2.5%
	LINE REGULATION	±0.3%
	LOAD REGULATION	±0.5%
	SETUP, RISE TIME	600ms, 30ms at full load
	HOLD UP TIME (Typ.	30ms/230VAC 8ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	74%
	AC CURRENT (Typ.)	0.25A/115VAC 0.15A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 20A/115VAC 40A/230VAC
	LEAKAGE CURRENT	<0.75mA / 240VAC
	OVER LOAD	115 ~ 190% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	3.8 ~4.95V
	OVER VOLTAGE	Protection type :Shut off o/p voltage,clamping by zener diode

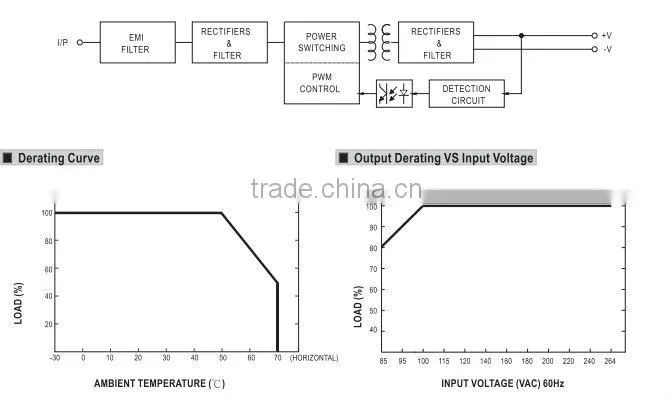

ENVIRONMENT	WORKING TEMP.	-30~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024 heavy industry level(surge L-n:1kv), criteria A
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	1495.8K hrs min. MIL-HDBK-217F (25 )
	DIMENSION	45.725.421.5mm (LWH)
	PACKING	0.04Kg; 270pcs/11.8Kg/0.97CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. . 5 5.Length of set up time is measured at first cold start.Terning ON/OFF the power supply may lead to increase of the set up time.
