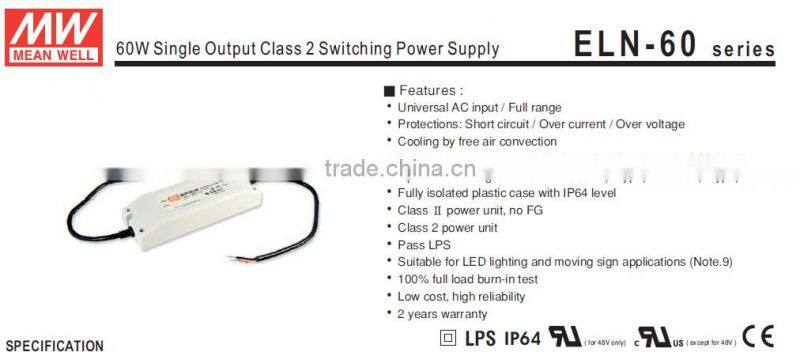

Meanwell ELN-60-9 45w 9v 5a Led Driver 9vdc Waterproof Led Power Supply 45w

Name: Meanwell ELN-60-9 45w 9v 5a Led Driver 9vdc Waterproof Led Power Supply 45w
Brand: Meanwell
SKU: 117424647
Availability: InStock

Meanwell ELN-60-9 45w 9v 5a Led Driver 9vdc Waterproof Led Power Supply 45w thumbnail-1

Meanwell ELN-60-9 45w 9v 5a Led Driver 9vdc Waterproof Led Power Supply 45w photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

ELN-60-9

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number ELN-60-9

Output Power Other, 45W

Output Type Single

Input Voltage Other, 90~264VAC

Output Voltage 9V

Output Frequency 47~63Hz

Output Current 5A

MODEL		ELN-60-9
OUTPUT	DC VOLTAGE	9V
	LED OPERATION VOLTAGE Note.7	3~9V
	RATED CURRENT	5A
	CURRENT RANGE	0~5A
	RATED POWER	45W
	RIPPLE & NOISE (max.) Note.2	120mVp-p
	VOLTAGE ADJ. RANGE	8.7 ~ 10.5V
	VOLTAGE ADJ. RANGE	Can be adjusted by internal potentiometer SVR1
	CURRENT ADJ. RANGE	-25% ~ 3%. Can be adjusted by internal potentiometer SVR2
	VOLTAGE TOLERANCE Note.3	±5.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	SETUP, RISE TIME Note.6	500ms, 80ms/230VAC 1000ms, 80ms/115VAC at full load
	HOLD UP TIME (TYP.)	50ms/230VAC 16ms/115VAC at full load
INPUT	VOLTAGE RANGE Note.4	90~264VAC 127~370VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY (Typ.)	82%
	AC CURRENT (Typ.)	1.2A/115VAC 0.7A/230VAC
	INRUSH CURRENT (max.)	COLD START 60A(twidth=600us measured at 50% Ipeak) at 230VAC
	LEAKAGE CURRENT	0.25mA/240VAC
PROTECTION	OVER CURRENT	95 ~ 110%
	OVER CURRENT	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	11 ~ 13.5V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION	DIMMING CONTROL (OPTIONAL)	1.1 ~ 10VDC or PWM signal : 100Hz ~ 3KHz

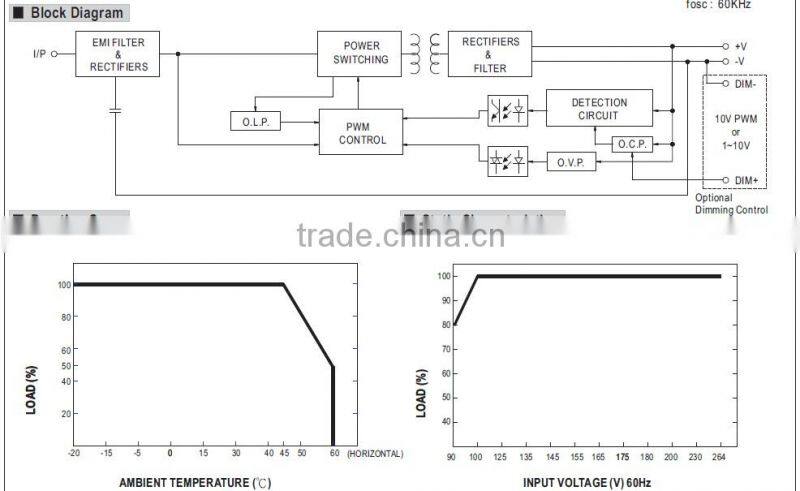

ENVIRONMENT	WORKING TEMP	-20~+60°C (Refer to “Derating Curve”)
	WORKING HUMIDITY	20~90%RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+80°C 10~95%RH
	TEMP. COEFFICIENT	±0.03%(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	UL1310, CAN/CSA C22.2 No. 223-M91(except for 48V), IP64 approved ; design refer to TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC
	ISOLATION RESISTANCE	I/P-O/P:>100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A, EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A
QTHERS	MTBF	603K hrs min. MIL-HDBK-217F (25°C)

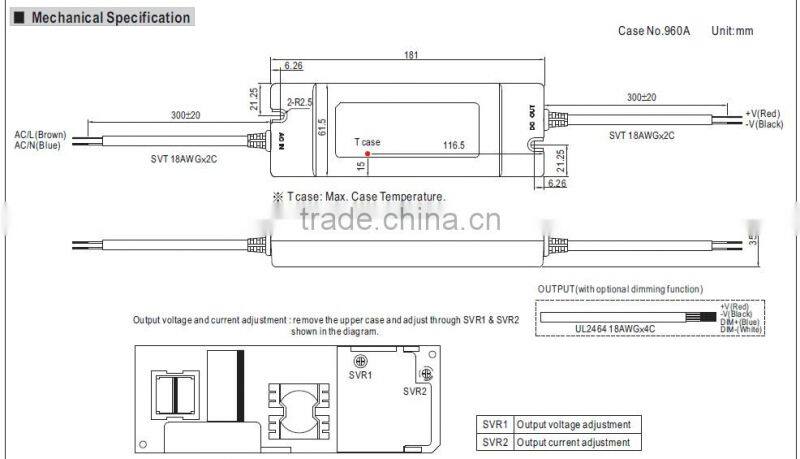

	DIMENSION	18161.535mm (LWH)
	PACKING	0.4Kg; 24pcs/11Kg/0.75CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltage. Please check the static characteristics for more details. 5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 7. Output voltage can be adjusted through the SVR1 on the PCB; limit of output constant current level can be adjusted through the SVR2 on the PCB. 8. Constant current operation region is within the specified output voltage range above. This is the suitable operation region for LED related applications. 9. The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
