Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell MDR-40-5 40W 5V 6A Industrial DIN Rail Power Supply/5v Meanwell Power Supply/40w Industrial DIN Rail

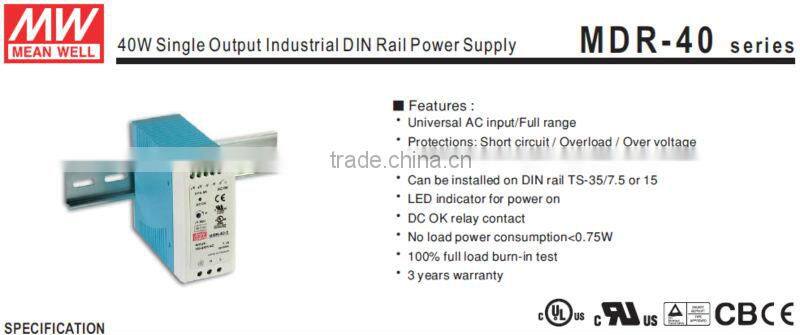

Meanwell MDR-40-5 40W 5V 6A Industrial DIN Rail Power Supply/5v Meanwell Power Supply/40w Industrial DIN Rail

Name: Meanwell MDR-40-5 40W 5V 6A Industrial DIN Rail Power Supply/5v Meanwell Power Supply/40w Industrial DIN Rail
Brand: Meanwell
SKU: 117417323
Availability: InStock

Meanwell MDR-40-5 40W 5V 6A Industrial DIN Rail Power Supply/5v Meanwell Power Supply/40w Industrial DIN Rail thumbnail-1

Meanwell MDR-40-5 40W 5V 6A Industrial DIN Rail Power Supply/5v Meanwell Power Supply/40w Industrial DIN Rail photo-1

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

MDR-40-5

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number MDR-40-5

Input Voltage 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 5V

Output Power 40W

Output Frequency 47~63Hz

Output Current 6A

MODEL		MDR-40-5
OUTPUT	DC VOLTAGE	5V
	RATED CURRENT	6A
	CURRENT RANGE	0~6A
	RATED POWER	30W
	RIPPLE & NOISE (max.) Note.2	80MVP-P
	VOLTAGE ADJ. RANGE	5 ~ 6V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±1.0%
	SETUP. RISEHOLD. TIME Note.5	500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load
	HOLD UP TIME (Typ.)	50ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY (Typ.)	78%
	AC CURRENT (Typ.)	1.1A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 30A/115VAC 60A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	105 ~ 150% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	6.25~ 7.25V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
FUNCTION	DC OK SIGNAL	Relay contact rating(max.): 30V/1A resistive
ENVIRONMENT	WORKING TEMP	-20~+70°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50°C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL508, UL60950-1, TUV EN60950-1 approved, NEC class 2 / LPS compliant (12V,24V,48V only)
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC 25°C 70%RH
	EMI CONDUCTICN& RADIATION	Compliance to EN55011, EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
QTHERS	MTBF	301.7Khrs min MIL-HDBK-217F(25°C)

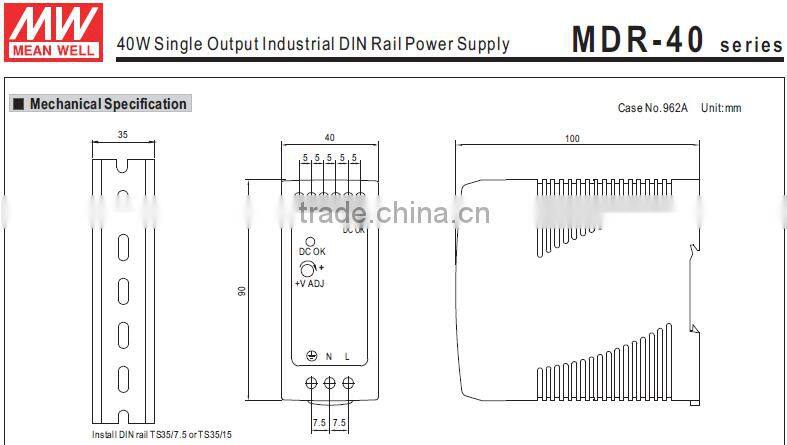

	DIMENSION	4090100mm(LWH)
	PACKING	0.3Kg; 42pcs / 13.6Kg / 0.82CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
