Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 120w12v Power Supply With PFC Function/120W Single Output Industrial DIN RAIL With PFC Function

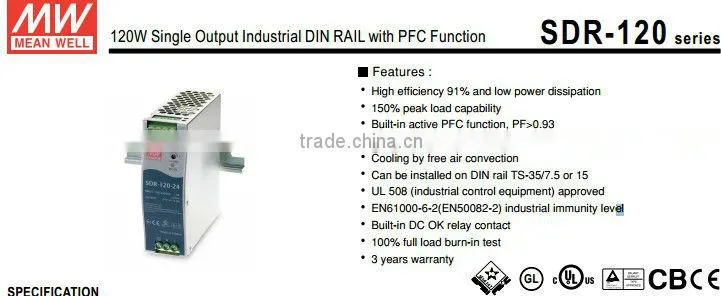

Mean Well 120w12v Power Supply With PFC Function/120W Single Output Industrial DIN RAIL With PFC Function

Name: Mean Well 120w12v Power Supply With PFC Function/120W Single Output Industrial DIN RAIL With PFC Function
Brand: Mean Well
SKU: 117417377

Mean Well 120w12v Power Supply With PFC Function/120W Single Output Industrial DIN RAIL With PFC Function thumbnail-1

Mean Well 120w12v Power Supply With PFC Function/120W Single Output Industrial DIN RAIL With PFC Function photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

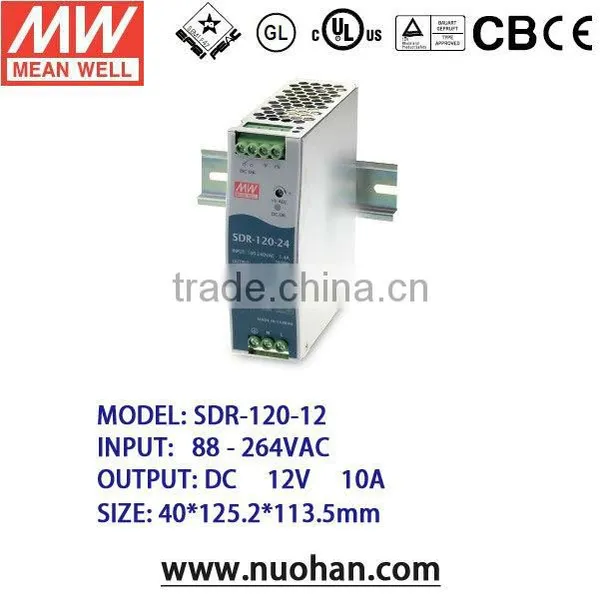

SDR-120-12

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number SDR-120-12

Input Voltage 88~ 264VAC 127 ~ 370VDC

Output Voltage 12V

Output Power 120W

Output Frequency 47~63Hz

Output Current 10A

MODEL		SDR-120-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	10A
	CURRENT RANGE	0 ~ 10A
	RATED POWER	120W
	RIPPLE&NOISE (max.) Note.2	100mVp-p
	PEAK CURRENT	15A
	PEAK POWER	180W(3sec.)
	VOLTAGE ADJ. RANGE	12~ 14V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.0%
	SETUP, RISE TIME	3000ms, 60ms / 115VAC 1500ms, 60ms / 230VAC at full load
	HOLD UP TIME (Typ.	20ms/230VAC 20ms/115VAC at full load
INPUT	VOLTAGE RANGE	88~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	89%
	AC CURRENT (Typ.)	1.4A/115VAC 0.7A/230VAC
	INRUSH CURRENT (Typ.)	35A/115VAC 70A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	Normally works within 110 ~150% rated output for more than 3 seconds and then shut down o/p voltage
	OVER LOAD	>150 %rated power,constant current limiting with auto-recover Within 3 seconds and then shut down o/p voltage after 3 seconds,
	OVER TEMPERATURE	95°C± 5°C (TSW:detect on heatsink of power switch)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover after temperature goes down
	OVER VOLTAGE	14~ 17V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover

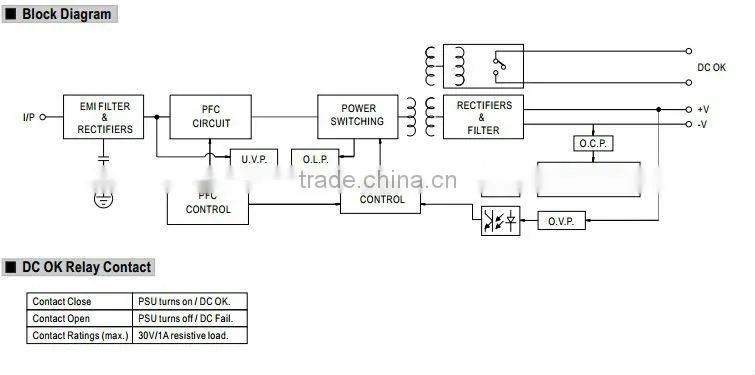

FUNCTION	DC OK REALY CONTACT RATINGS (max.)	60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load

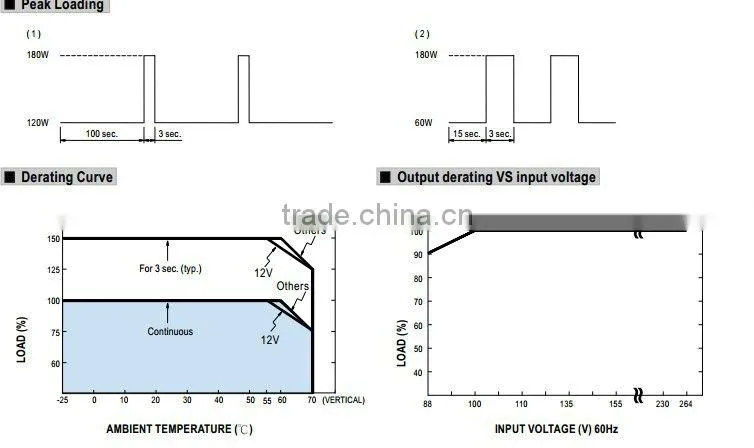

ENVIRONMENT	WORKING TEMP.	-25~+70°C (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC (Note 4)	SAFETY STANDARDS	UL508,TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC
	EMC EMISSION	Compliance to EN55022(CISPR22), Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11,EN61000-6-2 (EN50082-2),EN61204-3, EN55024,heavy industry level, criteria A SEMI F47,GL approved
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
OTHERS	MTBF	289.9K hrs min. MIL-HDBK-217F (25 )

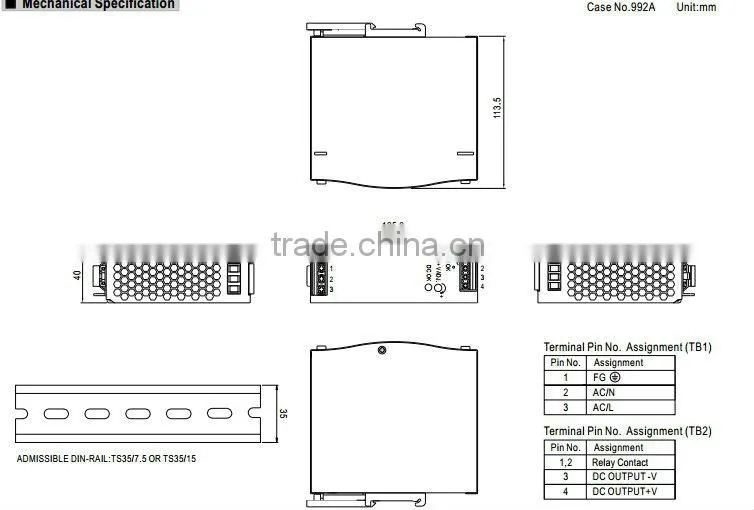

	DIMENSION	40125.2113.5mm (WHD)
	PACKING	0.67Kg; 20pcs/14.4Kg/1.16CUFT
NOTE	1 All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 2.. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5.Derating may be needed under low input voltage. Please check the static characteristics for more details. 666.3 seconds max. Please refer to peak loading curves. 7.Installation clearances:40mm on top,20mm on the bottom,5mm on the left and right side are recommended when loaded permanently with full power.In case the adjacent device is a heat source ,15mmclearance is recommended.
