Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Waterproof Electronic Led Driver HLG-185H-54 185W 54V Led Dimmable Driver

Meanwell Waterproof Electronic Led Driver HLG-185H-54 185W 54V Led Dimmable Driver

Name: Meanwell Waterproof Electronic Led Driver HLG-185H-54 185W 54V Led Dimmable Driver
Brand: Meanwell
SKU: 117415387
Availability: InStock

Meanwell Waterproof Electronic Led Driver HLG-185H-54 185W 54V Led Dimmable Driver thumbnail-1

Meanwell Waterproof Electronic Led Driver HLG-185H-54 185W 54V Led Dimmable Driver photo-1

US$ 1 - 30 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

HLG-185H-54

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number HLG-185H-54

Output Power Other, 186.3W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 54V

Output Current 3.45A

MODEL			HLG-185H-54
OUTPUT	DC VOLTAGE		54V
	RATED CURRENT		3.45A
	RATED POWER		186.3W
	RIPPLE & NOISE (max.) Note.2		200mVp-p
	VOLTAGE ADJ. RANGE Note.5		49 ~ 58V
	CURRENT ADJ. RANGE		Can be adjusted by internal potentiometer A type only
			1.72 ~ 3.45A
	VOLTAGE TOLERANCE Note.3		±1.0%
	LINE REGULATION		±0.5%
	LOAD REGULATION		±0.5%
	SETUP. RISE TIME Note.7		2500ms, 80ms at full load 230VAC / 115VAC ; B type 2500ms, 200ms at 95% load 230VAC / 115VAC
	HOLD UP TIME (Typ.)		16ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.4		90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE		47~63HZ
	POWER FACTOR (Typ.)		PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)		94%
	AC CURRENT (Typ.)	12V	1.8A / 115VAC 0.8A / 230VAC 0.7A / 277VAC
		15V~54V	2.1A / 115VAC 0.9A / 230VAC 0.8A / 277VAC
	INRUSH CURRENT (Typ.)		COLD START 75A/230VAC
	LEAKAGE CURRENT		<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4		95 ~ 108%
			Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT		Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE		59 ~ 65V
			Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE		100°C±10°C(RTH2)
			Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

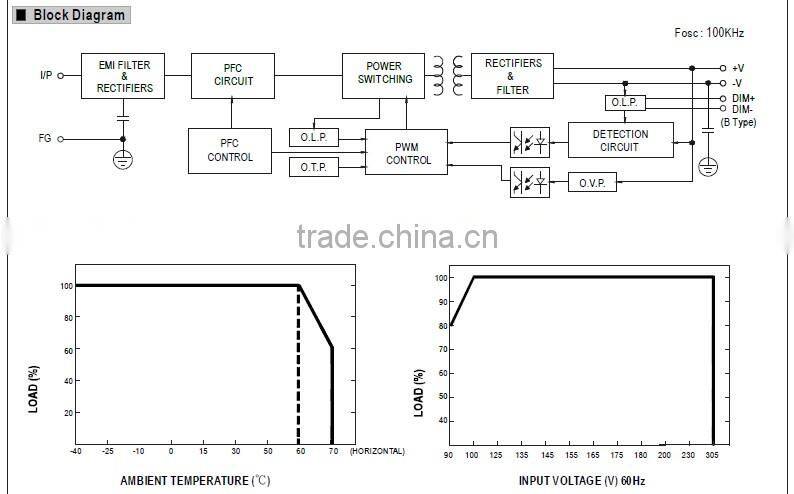

ENVIRONMENT	WORKING TEMP.		-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY		20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY		-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT		±0.03%/°C(0 ~ 50°C)
	VIBRATION		10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.7		UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE		I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE		I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION		Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥50% load) ; EN61000-3-3
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
QTHERS	MTBF		192.2K hrs min. MIL-HDBK-217F (25°C)

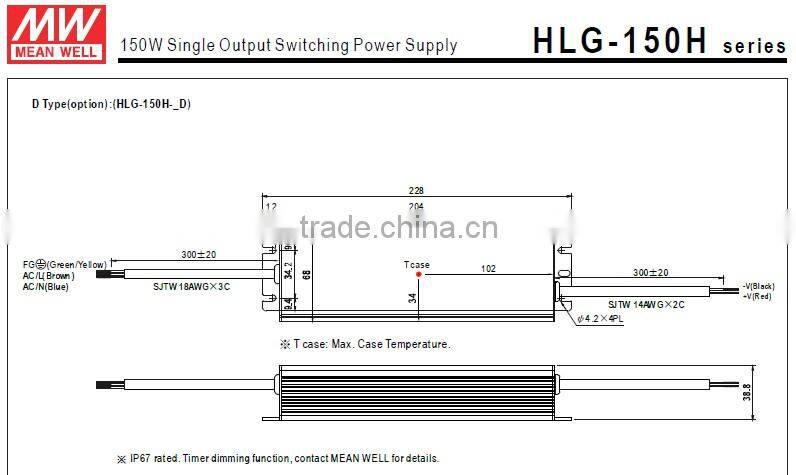

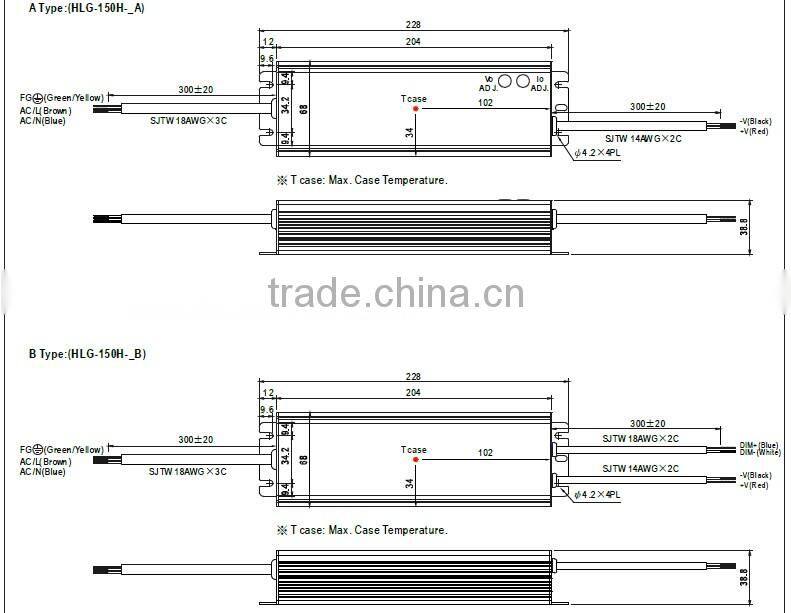

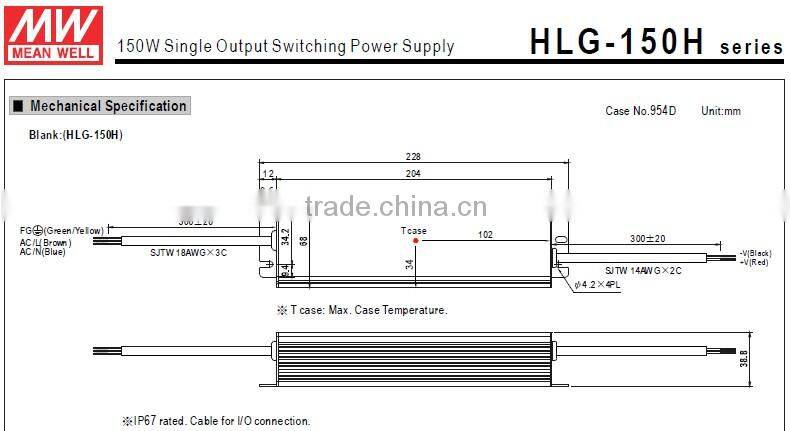

	DIMENSION		2286838.8mm
	PACKING		1.15Kg; 12pcs/14.8Kg/0.8CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details. 5. Type A only. 6. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 9. Refer to warranty statement.
