Meanwell 150W Switching Power Supply 150w 15v High Power Led Driver

Name: Meanwell 150W Switching Power Supply 150w 15v High Power Led Driver
Brand: Meanwell
SKU: 117415481
Availability: InStock

Meanwell 150W Switching Power Supply 150w 15v High Power Led Driver thumbnail-1

Meanwell 150W Switching Power Supply 150w 15v High Power Led Driver photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

HLG-150H-15

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number HLG-150H-15

Output Power Other, 150W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 15V

Output Frequency 47~63Hz

Output Current 10A

Product Overviews

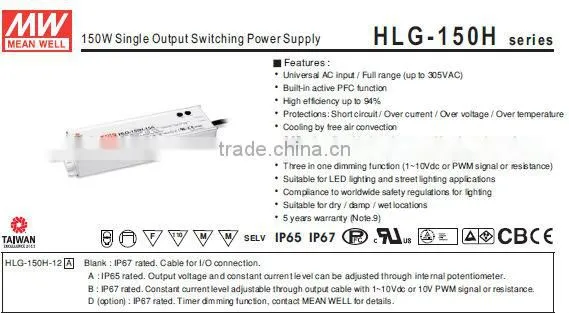

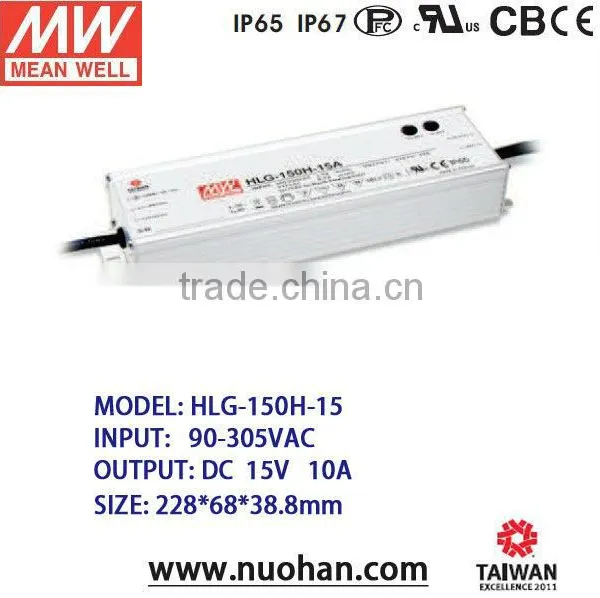

Original MEAN WELL

HLG-150H-15

Output: 15V 10A 150W

Input: 90 ~ 305VAC 127 ~ 431VDC

Warranty: 5 years

Certificates: UL_8750,CB,CE,EMC,TUV,PSE

Specifications

MODEL		HLG-150H-15
OUTPUT	DC VOLTAGE	15V
	RATED CURRENT	10A
	RATED POWER	150W
	RIPPLE & NOISE (max.) Note.2	150mVp-p
	VOLTAGE ADJ. RANGE Note.5	13.5 ~ 17V
	CURRENT ADJ. RANGE	Can be adjusted by internal potentiometer A type only
	CURRENT ADJ. RANGE	6 ~ 10A
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±1.5%
	SETUP. RISE TIME Note.7	2500ms, 50ms at full load 230VAC / 115VAC ; B type 2500ms, 200ms at 95% load 230VAC / 115VAC
	HOLD UP TIME (Typ.)	16ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.4	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	92%
	AC CURRENT (Typ.)	1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 75A/230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 108%
	OVER CURRENT Note.4	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	18 ~ 21V
	OVER VOLTAGE	Protection type : Shut down o/p voltage with auto-recovery or re-power on to recovery
	OVER TEMPERATURE	100°C±10°C(RTH2)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

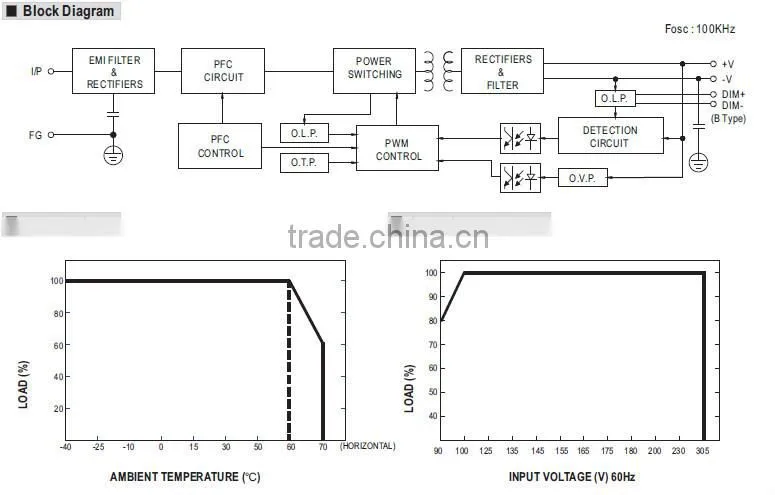

ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.7	UL8750, CSA C22.2 No. 250.0-08, EN61347-1, EN61347-2-13 independent IP65 or IP67, J61347-1, J61347-2-13 approved ; design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2 Class C (≥60% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV), criteria A
QTHERS	MTBF	192.2K hrs min. MIL-HDBK-217F (25°C)

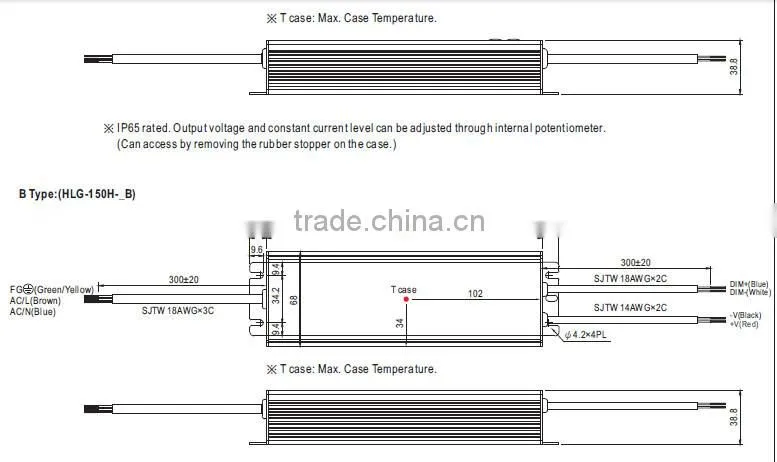

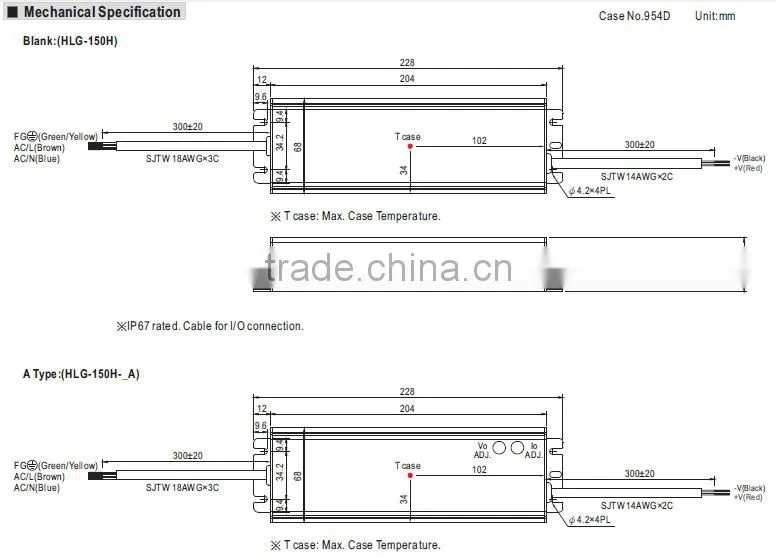

	DIMENSION	2286838.8mm
	PACKING	1.15Kg; 12pcs/14.8Kg/0.8CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the static characteristics for more details. 5. Type A only. 6. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18. 7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 8. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 9. Refer to warranty statement.
