Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Led Driver HLG-80H-54B 80W Led Dimmer Driver 80w 54v 0~10v Dimming

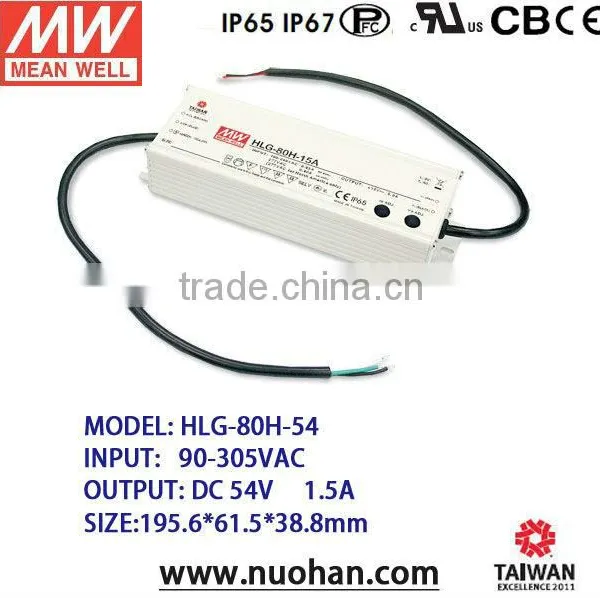

Meanwell Led Driver HLG-80H-54B 80W Led Dimmer Driver 80w 54v 0~10v Dimming

Name: Meanwell Led Driver HLG-80H-54B 80W Led Dimmer Driver 80w 54v 0~10v Dimming
Brand: Meanwell
SKU: 117415523
Availability: InStock

Meanwell Led Driver HLG-80H-54B 80W Led Dimmer Driver 80w 54v 0~10v Dimming thumbnail-1

Meanwell Led Driver HLG-80H-54B 80W Led Dimmer Driver 80w 54v 0~10v Dimming photo-1

US$ 1 - 10 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

HLG-80H-54B

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number HLG-80H-54B

Output Power Other, 81W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 54V

Output Frequency 47~63Hz

Output Current 1.5A

Spercifications

MODEL		HLG-80H-54
OUTPUT	DC VOLTAGE	54V
	CONSTANT CURRENT REGION Note.4	32.4 ~ 54V
	RATED CURRENT	1.5A
	RATED POWER	81W
	RIPPLE & NOISE (max.) Note.2	200mVp-p
	VOLTAGE ADJ. RANGE Note.6	49 ~ 58V
	CURRENT ADJ. RANGE	Can be adjusted by internal potentiometer A type only
	CURRENT ADJ. RANGE	0.9 ~ 1.5A
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP. RISE TIME Note.8	2000ms, 80ms / 115VAC at full load 1000ms, 80ms / 230VAC at full load ; B type 2000ms, 200ms at 95% load 230VAC / 115VAC
	HOLD UP TIME (Typ.)	16ms at full load 230VAC /115VAC
INPUT	VOLTAG ERANGE Note.5	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC at full load (Please refer to "Power Factor Characteristic" curve)
	EFFICIENCY (Typ.)	91%
	AC CURRENT (Typ.)	0.85A / 115VAC 0.425A / 230VAC 0.4A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 70A/230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT Note.4	95 ~ 108%
	OVER CURRENT Note.4	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	59 ~ 68V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	85°C±10°C(RTH2)
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-40 ~ +70°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40 ~ +80°C, 10 ~ 95% RH
	TEMP. COEFFICIENT	±0.03%/°CJ(0 ~ 60°C)
	VIBRATION	10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS Note.7	UL8750, CSA C22.2 No. 250.0-08(except for HLG-80H-48/54V & HLG-80H-48/54BL), UL8750 listed for HLG-80H- BL EN61347-1, EN61347-2-13 independent, J61347-1, J61347-2-13, IP65 or IP67 approved ; Design refer to UL60950-1, TUV EN60950-1
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, EN61000-3-2 Class C (≥60% load) ; EN61000-3-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge 4KV), criteria A
QTHERS	MTBF	357.8K hrs min. MIL-HDBK-217F (25°C)

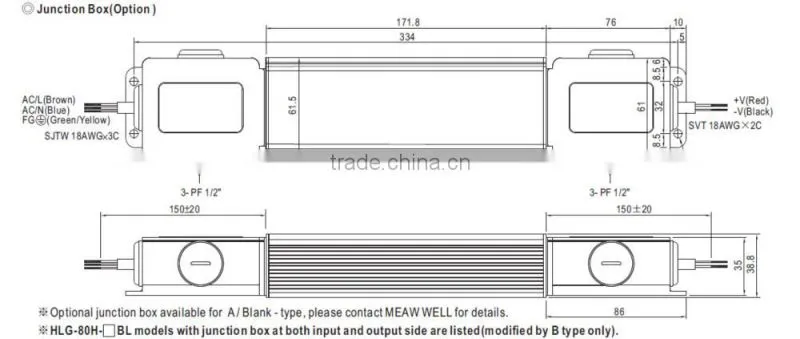

	DIMENSION	195.661.538.8mm (LWH)
	PACKING	0.84Kg; 16pcs/14.4Kg/0.54CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Constant current operation region is within 60% ~100% rated output voltage. This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 5. Derating may be needed under low input voltages. Please check the static characteristics for more details. 6. Type A only. 7. Safety and EMC design refer to EN60598-1, CNS15233, GB7000.1, FCC part18. 8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. 10. Refer to warranty statement.
