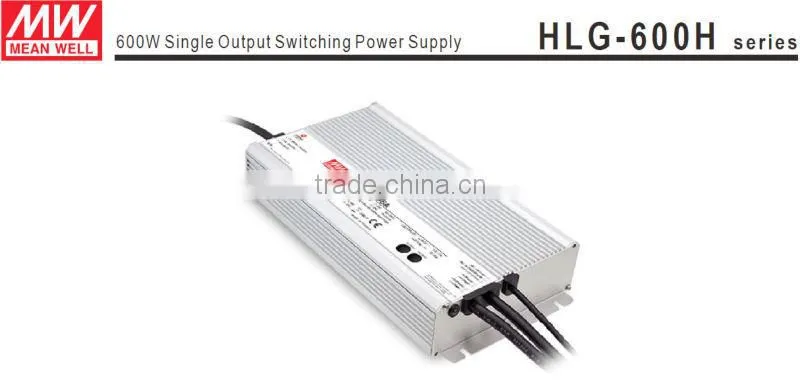

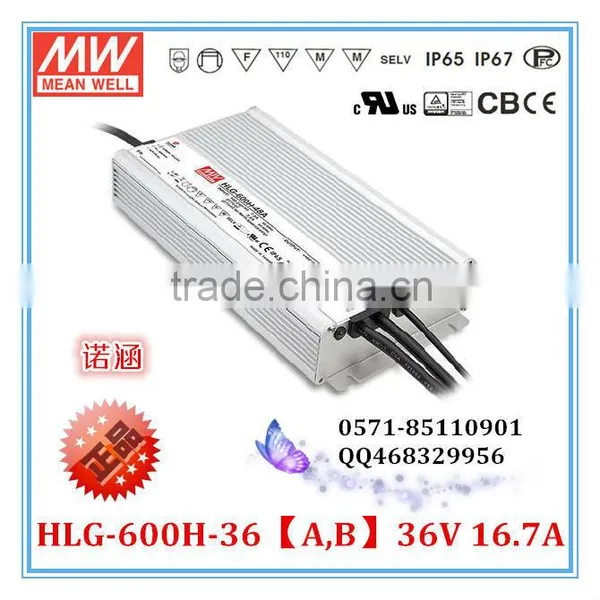

600W Single Output Switching Power Supply/36v Power Supply 600w/pwm Led Driver/220v to 36v Led Driver

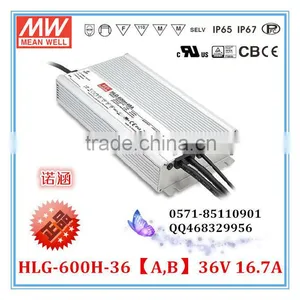

600W Single Output Switching Power Supply/36v Power Supply 600w/pwm Led Driver/220v to 36v Led Driver thumbnail-1
600W Single Output Switching Power Supply/36v Power Supply 600w/pwm Led Driver/220v to 36v Led Driver photo-1
US$ 1 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Meanwell
Model Number:
HLG-600H-36
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Meanwell
Model Number HLG-600H-36
Output Power Other, 601.2W
Output Type Single
Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC
Output Voltage 36V
Output Current 16.7A

600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver

MODEL

HLG-600H-36

OUTPUT

DC VOLTAGE

36V

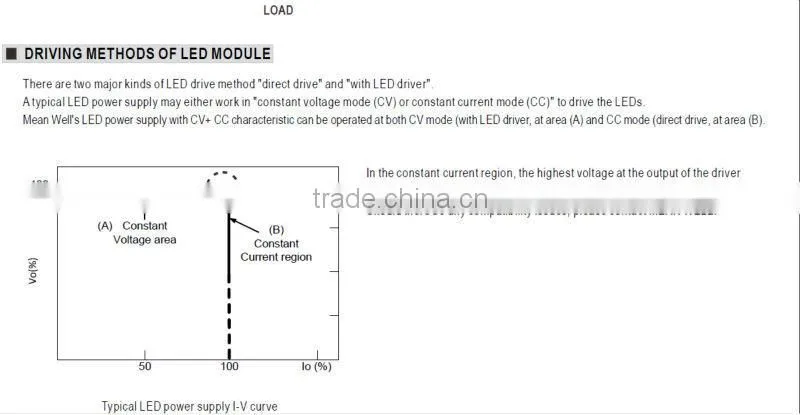

CONSTANT CURRENT REGION  Note.4

18~36V



RATED CURRENT

16.7A



RATED POWER

601.2W



RIPPLE & NOISE (max.)          Note.2

250mVp-p



VOLTAGE ADJ. RANGE          Note.6

30.6~37.8V



CURRENT ADJ. RANGE

Can be adjusted by internal potentiometer A type only





8.3~16.7A



VOLTAGE TOLERANCE        Note.3

±1.0%



LINE REGULATION

±0.5%



LOAD REGULATION

±0.5%



SETUP. RISE TIME      Note.8

500ms, 80ms at full load     230VAC /115VAC



HOLD UP TIME  (Typ.)

15ms at full load     230VAC /115VAC

INPUT

VOLTAGE RANGE       Note.5

90 ~ 305VAC  127 ~ 431VDC



FREQUENCY RANGE

47~63HZ



POWER FACTOR (Typ.)

PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load (Please refer to "Power Factor Characteristic" curve)



TOTAL HARMONIC DISTORTION

THD<20% when output loading>=50% at 115VAC/230VAC input and output loading>=75% at 277VAC input

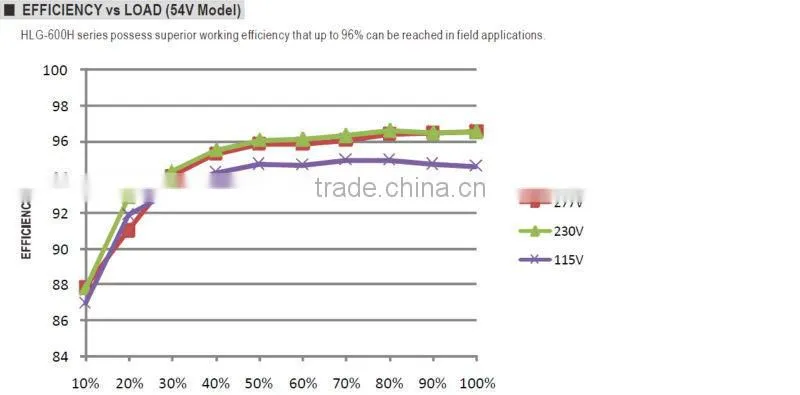

EFFICIENCY (Typ.)

230VAC

95.5%





277VAC

95.5%



AC CURRENT (Typ.)

7A / 115VAC      3.3A / 230VAC   2.9A / 277VAC



INRUSH CURRENT (Typ.)

COLD START 70A(twidth=1000μs measured at 50% lpeak) at 230VAC



LEAKAGE  CURRENT

<0.75mA / 277VAC

PROTECTION

OVER CURRENT              Note.4

95 ~ 108%





Protection type : Constant current limiting, recovers automatically after fault condition is removed



SHORT CIRCUIT

Constant current limiting, recovers automatically after fault condition is removed



OVER VOLTAGE

39.5~43.5V





Protection type : Shut down o/p voltage, re-power on to recover



OVER TEMPERATURE

Shut down o/p voltage, re-power on to recover

FUNCTION

REMOTE ON/OFF CONTROL

Power on: “Hi”>2~5V or (Open circuit)  Power off: :Low”<0~0.5V or (Short circuit)



5V STANDY

5VSB : 5V 0.5A ; tolerance ±5%, ripple : 100mVp-p(max.)

ENVIRONMENT

WORKING TEMP.

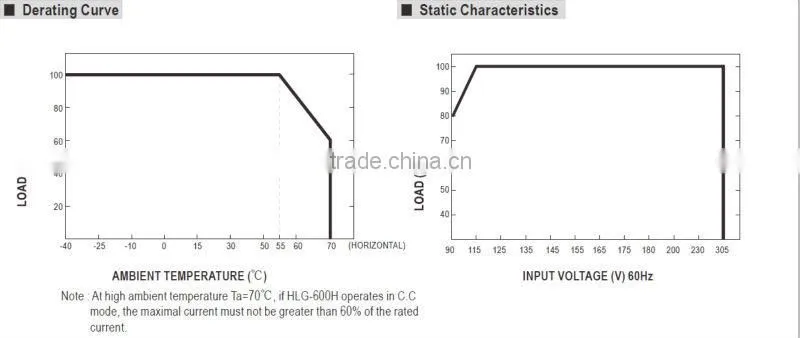

-40 ~ +70℃(Refer to "Derating Curve")



WORKING HUMIDITY

20 ~ 95% RH non-condensing



STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH



TEMP. COEFFICIENT

±0.03%/℃(0 ~ 60℃)



VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for  72min. each along X, Y, Z axes

SAFETY&EMC

SAFETY  STANDARDS        Note.7

UL8750,CSAC22.2No.250.13-12, EN61347-1, EN61347-2-13 independent,IP65 or IP67 approved



WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC



ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH



EMC EMISSION

Compliance to EN55015, EN55022 (CISPR22) Class B, EN61000-3-2  Class C (≥50% load) ; EN61000-3-3



EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge 4KV),  criteria A

QTHERS

MTBF

76.9K hrs min.     MIL-HDBK-217F (25℃)

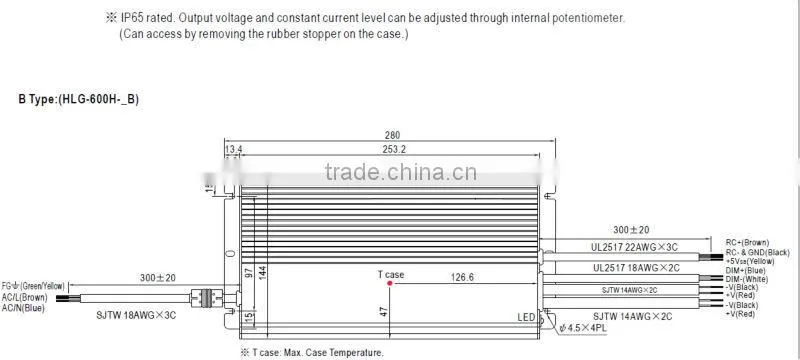

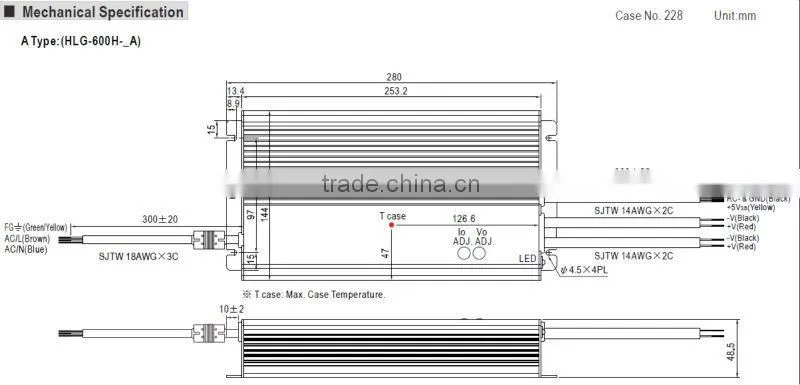

DIMENSION

280*144*48.5mm (L*W*H)



PACKING

3.9Kg;4pcs/16.6Kg/0.9CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Constant current operation region is within 50%~100% rated output voltage. This is the suitable operation region for LED related applications, but please

reconfirm special electrical requirements for some specific system design.

5. Derating may be needed under low input voltages. Please check the static characteristics for more details.

6. A type only.

7. Safety and EMC design refer to EN60598-1, subject CNS15233, GB7000.1, FCC part18.

8. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.

9. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the

complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.

10. Refer to warranty statement





600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver



600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver



600W Single Output Switching Power Supply/36v power supply 600w/pwm led driver/220v to 36v led driver
