Home > Electrical & Electronics > Inverter > Power Inverter > Meanwell 1500W True Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit

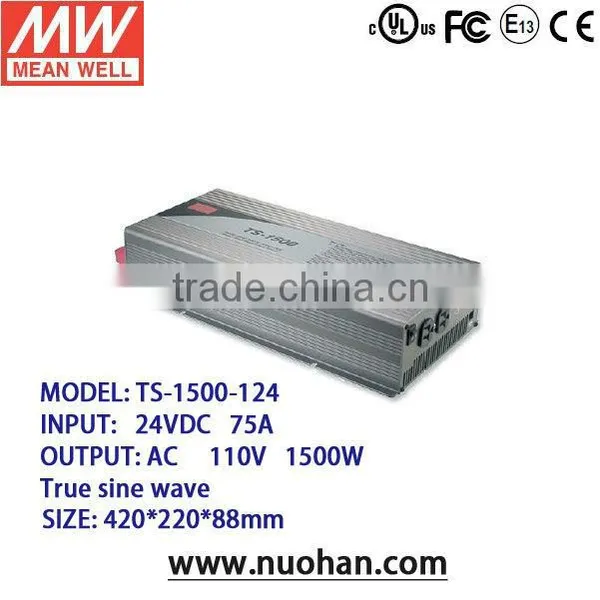

Meanwell 1500W True Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit

Name: Meanwell 1500W True Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit
Brand: Original Meanwell
SKU: 117409783
Availability: InStock

Meanwell 1500W True Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit thumbnail-1

Meanwell 1500W True Sine Wave DC-AC Power Inverter 24v Inverter/dc to ac Inverter Design Circuit photo-1

US$ 290 - 345 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Original Meanwell

Model Number:

TS-1500-124

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Original Meanwell

Model Number TS-1500-124

Output Power Other, 1500W

Output Type Single

Size 420*220*88mm (L*W*H)

Weight 7Kg

Input Voltage 24V

Output Voltage 110V

Type DC/AC Inverters

Output Frequency 50/60Hz

Output Current AC

MODEL		TS-1500-124
OUTPUT	RATED POWER	1500W
	MAXIMUM OUTPUT POWER	1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles
	AC VOLTAGE	100 / 110 / 115 / 120VAC selectable by setting button
	FREQUENCY	60 ±0.1Hz 50/60Hz selectable by setting buttonS.W
	WAVEFORM Note. 2	True sine wave (THD<3%) at rated input voltage
	AC REGULATION (Typ.)	±3.0%
	SAVING MODE (Typ.)	Default disabled. Load≤5W will be changed to standby mode
	FRONT PANEL INDICATOR	Battery voltage level, output load level, saving mode, fault and operation status
INPUT	BAT. VOLTAGE	24V
	VOLTAGE RANGE (Typ.) Note. 3, 6	21 ~ 30VDC
	DC CURRENT (Typ.) Note. 5	75A
	NO LOAD DISSIPATION	≤18W at standby saving mode
	OFF MODE CURRENT DRAW	≤1mA
	EFFICIENCY (Typ.) Note.2	89%
	BATTERY TYPES	Open & sealed Lead Acid
BATTERY INPUT PROTECTION	FUSE	30A*3
	BAT. LOW ALARM	22.5± 4%
	BAT. LOW SHUTDOWN	21± 4%
	BAT. POLARITY	By internal fuse open
OUTPUTPROTECTION	OVER TEMPERATURE	82°C ± 5°C
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode
	OUTPUT SHORT	Protection type : Shut down o/p voltage, re-power on to recover
	OVER LOAD (Typ.)	105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
	OVER LOAD (Typ.)	Protection type : Shut down o/p voltage, re-power on to recover
	GFCI PROCTECTION	UL458 (only for "GFCI" receptacle-Type F )
ENVIRONMENT	WORKING TEMP. Note.4	0~+40°C at 100% load 60°C at 50% load
	WORKING HUMIDITY	20%~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-30~+70°C / -22~ +158 F, 10~95%RH
	VIBRATION	10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC	SAFETY STANDARDS	UL458 (only for "GFCI" receptacle-Type F )
	LVD	None
	WITHSTAND VOLTAGE	Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC
	ISOLATION RESISTANCE	AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to FCC class A
	EMC IMMUNITY	None
OTHERS	CONTROL WIRING	RJ11 -RS232 (Option)
	DIMENSION	42022088mm (LWH)
	PACKING	6.81Kg; 2pcs/14.6Kg/1.61CUFT
NOTE	1.Output derating capacity referenced by curve 1. 2.THD and Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage. 3.Input derating capacity referenced by curve 2. 4. All parameters not specified above are measured at rated load, 25°C of ambient temperature. 5. DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage. The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
