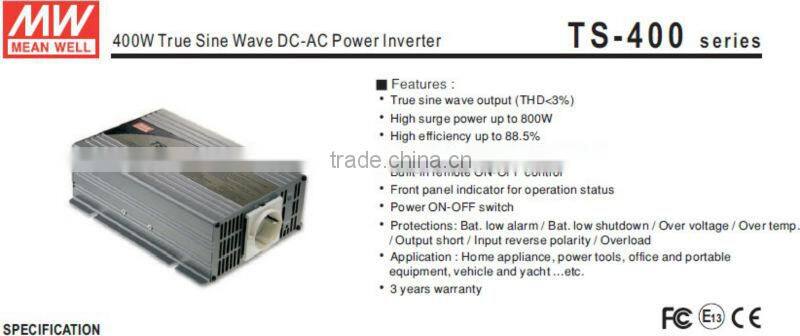

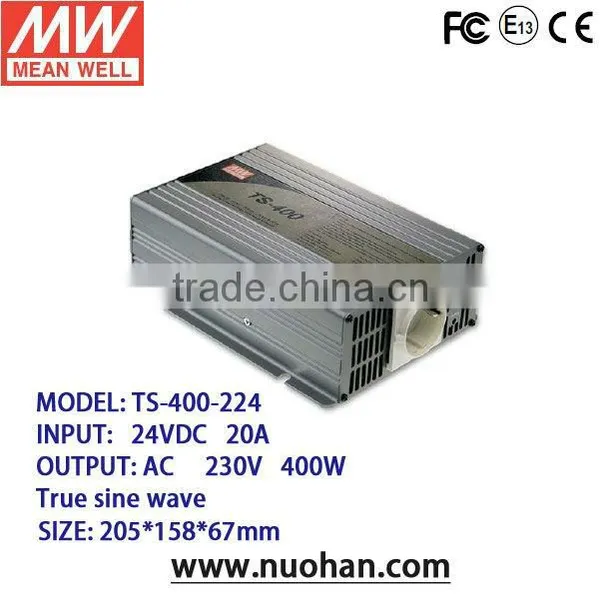

Meanwell 400W True Sine Wave DC-AC Power Inverter Solar power inverter/inverter generator Most Popular

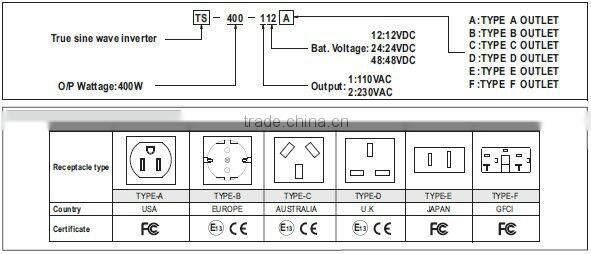

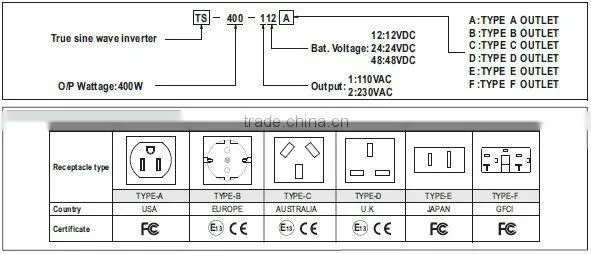

MODEL

TS-400-224

OUTPUT

RATED POWER

400W

MAXIMUM OUTPUT POWER

460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles(typ.)

AC VOLTAGE

Factory setting set at 230VAC

200 / 220 / 230 / 240VAC selectable by setting button S.W

FREQUENCY

50±0.1Hz     50/60Hz selectable by setting button

WAVEFORM

True sine wave (THD<3%) at rated input voltage

AC REGULATION   Note.1

±3.0% at rated input voltage

FRONT PANEL INDICATOR

Operation status ; Green : normal, Orange(flashing) : remote control OFF, Red : abnormal

INPUT

BAT. VOLTAGE

24V

VOLTAGE RANGE (Typ.) Note.3

21 ~ 30VDC

DC CURRENT (Typ.)

20A

NO LOAD CURRENT DRAW (Typ.)

0.63A

OFF MODE CURRENT DRAW

≤1mA

EFFICIENCY (Typ.)     Note.1

87.5%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

40A*1

BAT. LOW ALARM

22.5± 4%

BAT. LOW SHUTDOWN

21± 4%

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

75°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH1 detect power transistor

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

None

FUNCTION

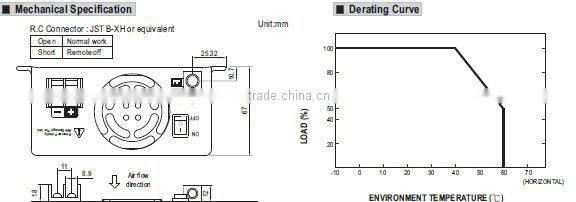

REMOTE CONTROL

Open : Normal work ; Short : Remote off

ENVIRONMENT

WORKING TEMP.

-10~+40°C at 100% load   +60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

Design refer to UL458

LVD

None

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC  AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25¢J/ 70% RH

EMC EMISSION

Compliance to FCC class A

EMC IMMUNITY

None

OTHERS

MTBF

104.7K hrs min.   MIL-HDBK-217F (25°C)

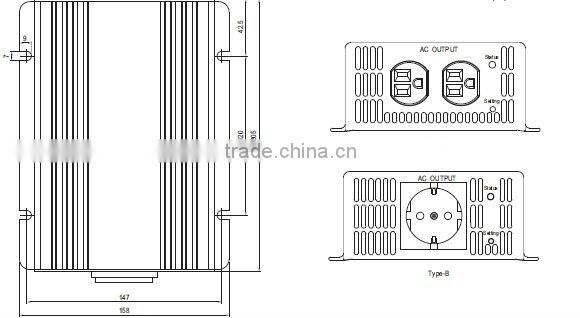

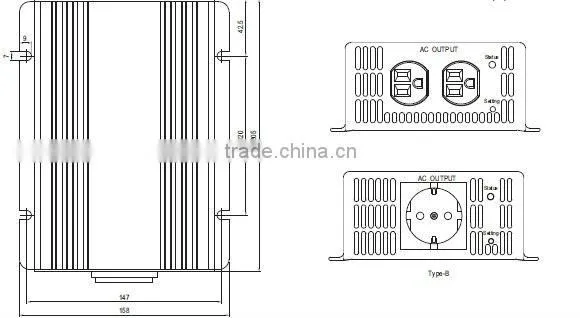

DIMENSION

205*158*67mm (L*W*H)

PACKING

1.73Kg; 6pcs/11.4Kg/1.55CUFT

NOTE

1.Efficiency is tested by 300W, linear load at 13V/26V/52V input voltage.

2.AC regulation is tested at 13V/26V/52V input voltage.

3.The tolerance of each voltage value by models is:112/212→±0.5V;124/224→±1V;148/248→±2V
