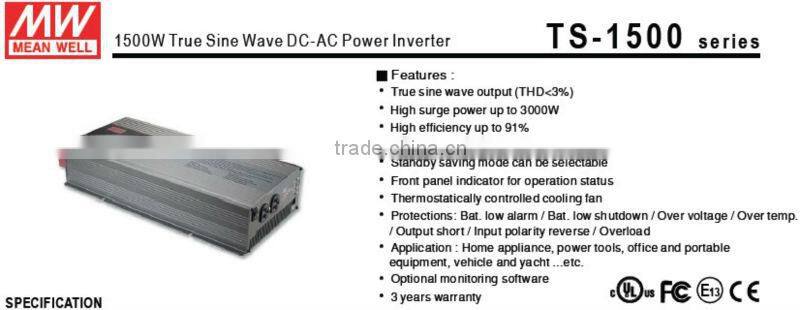

Mean Well TS-1500-112 1500W True Sine Wave Inverter 1500w Inverter

Mean Well TS-1500-112 1500W True Sine Wave Inverter 1500w Inverter thumbnail-1
Mean Well TS-1500-112 1500W True Sine Wave Inverter 1500w Inverter photo-1
US$ 100 - 340 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Original Meanwell
Model Number:
TS-1500-112
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Original Meanwell
Model Number TS-1500-112
Output Power Other, 1500W
Output Type Single
Size 420*220*88mm (L*W*H)
Weight 7Kgs
Input Voltage 12V
Output Voltage 110V
Type DC/AC Inverters
Output Frequency 50/60Hz selectable
Output Current AC

Mean well TS-1500-112 1500W True Sine Wave Inverter 1500w inverterMean well TS-1500-112 1500W True Sine Wave Inverter 1500w inverterMean well TS-1500-112 1500W True Sine Wave Inverter 1500w inverterMean well TS-1500-112 1500W True Sine Wave Inverter 1500w inverter

Mean well TS-1500-112 1500W True Sine Wave Inverter 1500w inverter

MODEL

TS-1500-112

OUTPUT

RATED POWER

1500W

MAXIMUM OUTPUT POWER

1725W for 180 sec. / 1875W for 10 sec. / surge power 3000W for 30 cycles

AC VOLTAGE

100 / 110 / 115 / 120VAC selectable by setting button

FREQUENCY

60 ±0.1Hz   50/60Hz selectable by setting buttonS.W

WAVEFORM     Note. 2

True sine wave (THD<3%) at rated input voltage

AC REGULATION (Typ.)

±3.0%

SAVING MODE (Typ.)

Default disabled. Load≤5W will be changed to standby mode

FRONT PANEL INDICATOR

Battery voltage level, output load level, saving mode, fault and operation status

INPUT





BAT. VOLTAGE

12V

VOLTAGE RANGE (Typ.)   Note. 3, 6

10.5 ~ 15VDC

DC CURRENT (Typ.)    Note. 5

150A

NO LOAD DISSIPATION

≤18W at standby saving mode

OFF MODE CURRENT DRAW

≤1mA

EFFICIENCY (Typ.)     Note.2

87%

BATTERY TYPES

Open & sealed Lead Acid

BATTERY INPUT PROTECTION

FUSE

40A*5

BAT. LOW ALARM

11.3± 4%

BAT. LOW SHUTDOWN

10.5± 4%

BAT. POLARITY

By internal fuse open

OUTPUTPROTECTION

OVER TEMPERATURE

82°C ± 5°C

Protection type : Shut down o/p voltage, re-power on to recover; by internal RTH3 detect on heatsink of power diode

OUTPUT SHORT

Protection type : Shut down o/p voltage, re-power on to recover

OVER LOAD (Typ.)

105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.

Protection type : Shut down o/p voltage, re-power on to recover

GFCI PROCTECTION

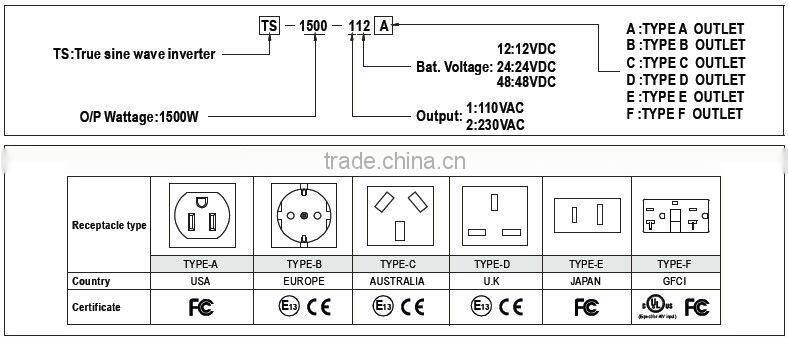

UL458 (only for "GFCI" receptacle-Type F )

ENVIRONMENT

WORKING TEMP.   Note.4

0~+40°C at 100% load   60°C at 50% load

WORKING HUMIDITY

20%~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30~+70°C / -22~ +158 F, 10~95%RH

VIBRATION

10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

SAFETY STANDARDS

UL458 (only for "GFCI" receptacle-Type F )

LVD

None

WITHSTAND VOLTAGE

Bat. I/P - AC O/P:3.0KVAC  AC O/P - FG:1.5KVAC

ISOLATION RESISTANCE

AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH



EMC EMISSION

Compliance to FCC class A

EMC IMMUNITY

None

OTHERS

CONTROL WIRING

RJ11 -RS232 (Option)

DIMENSION

420*220*88mm (L*W*H)

PACKING

6.81Kg; 2pcs/14.6Kg/1.61CUFT

NOTE

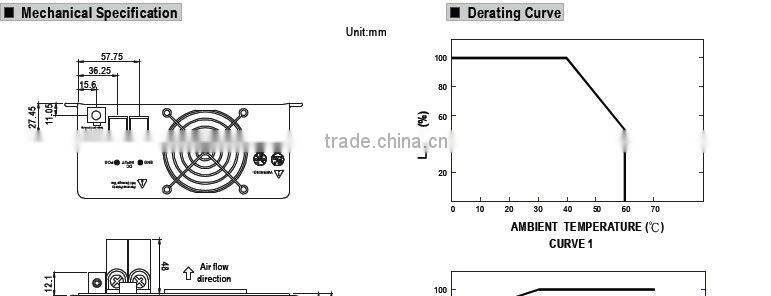

1.Output derating capacity referenced by curve 1.

2.THD and Efficiency is tested by 1000W, linear load at 13V, 26V, 52V input voltage.

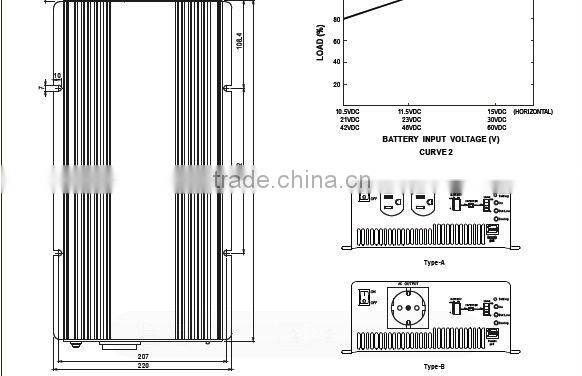

3.Input derating capacity referenced by curve 2.

4. All parameters not specified above are measured at rated load, 25°C of ambient temperature.

5. DC current is tested by 1500W, linear load at 13V, 26V, 52V input voltage.

The tolerance of each voltage value by models is:112/212 →±0.5V;124/224 →±1V;148/248 →±2V
